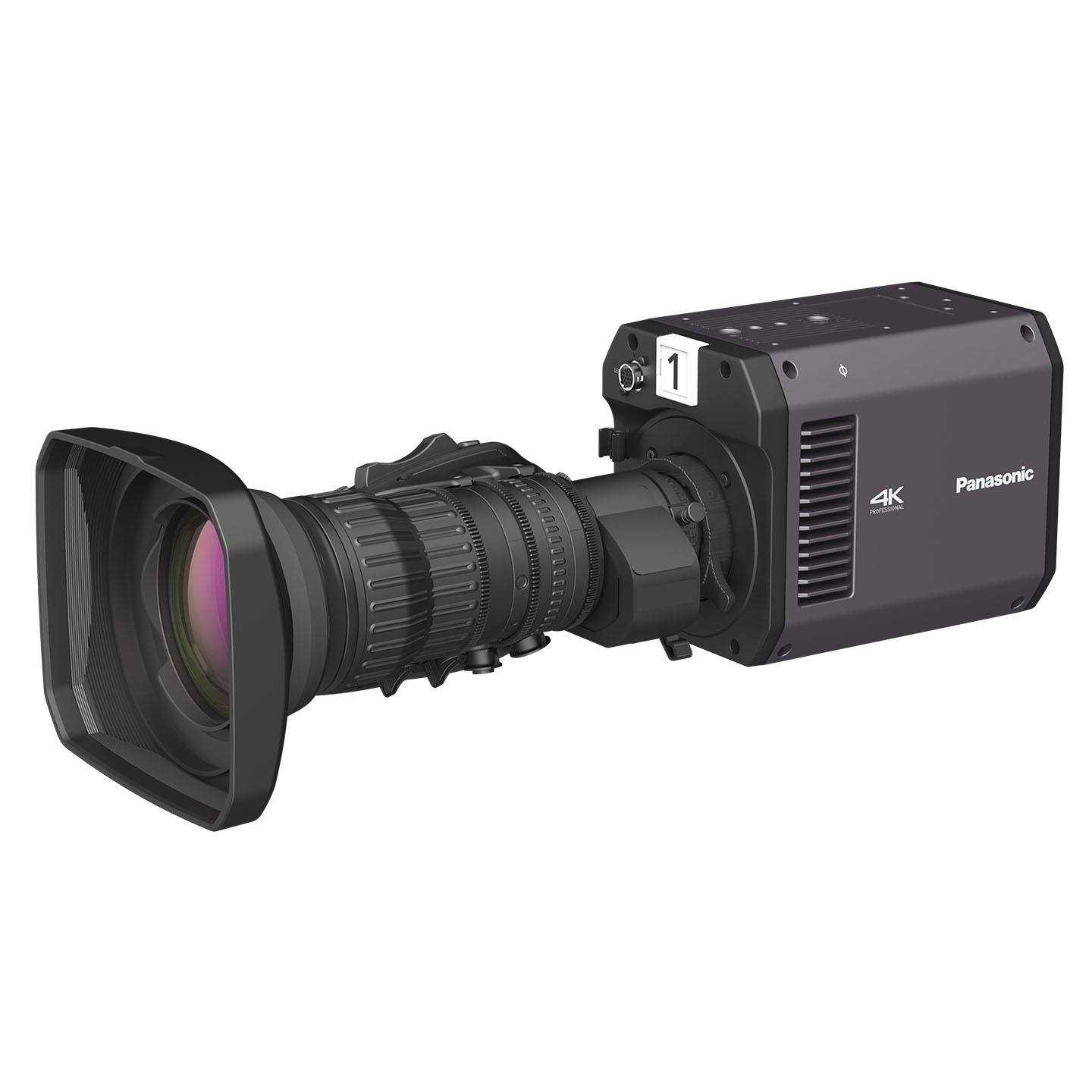

01_UBX100_(front-right perspective with lens attached)

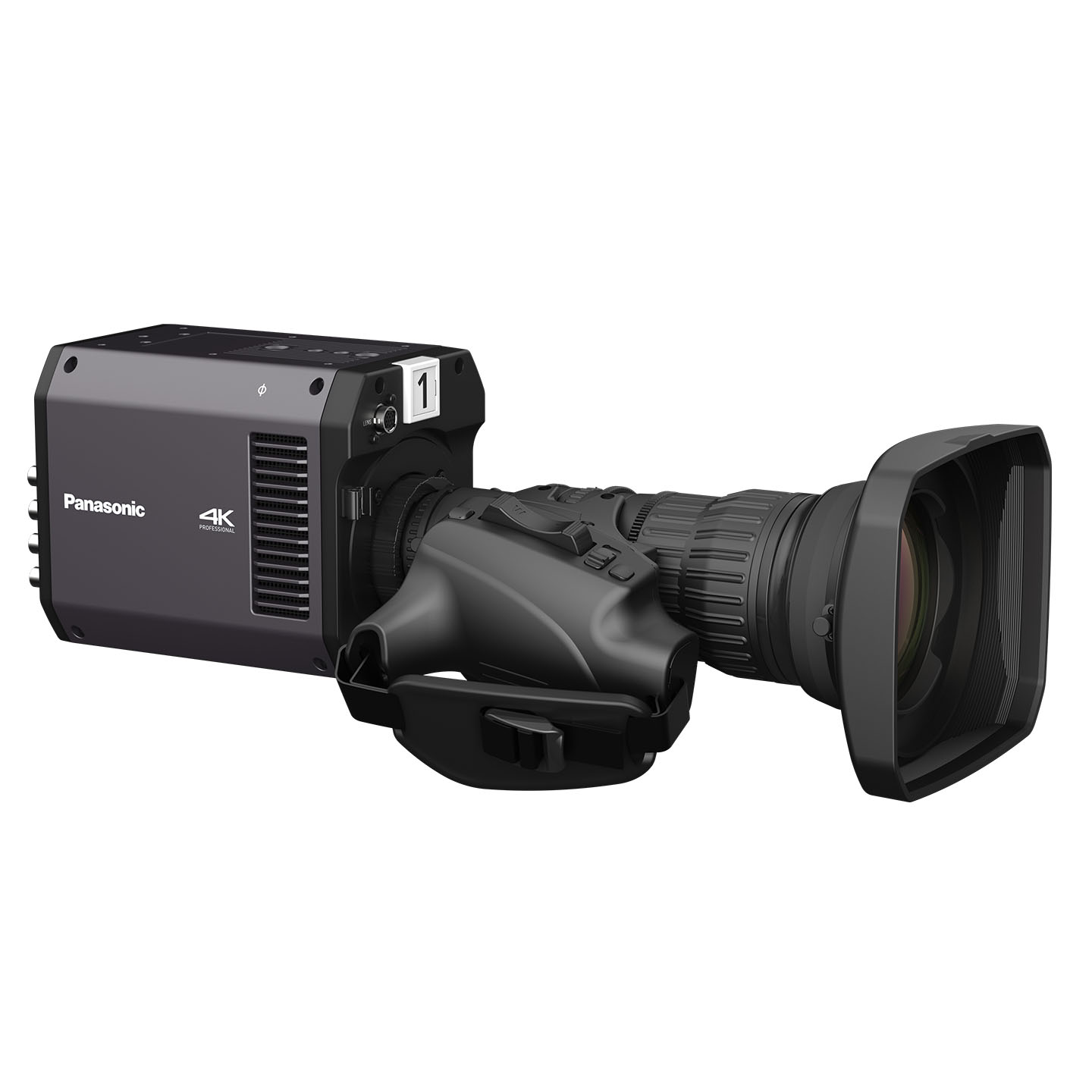

02_UBX100_(front-Left perspective with lens attached)

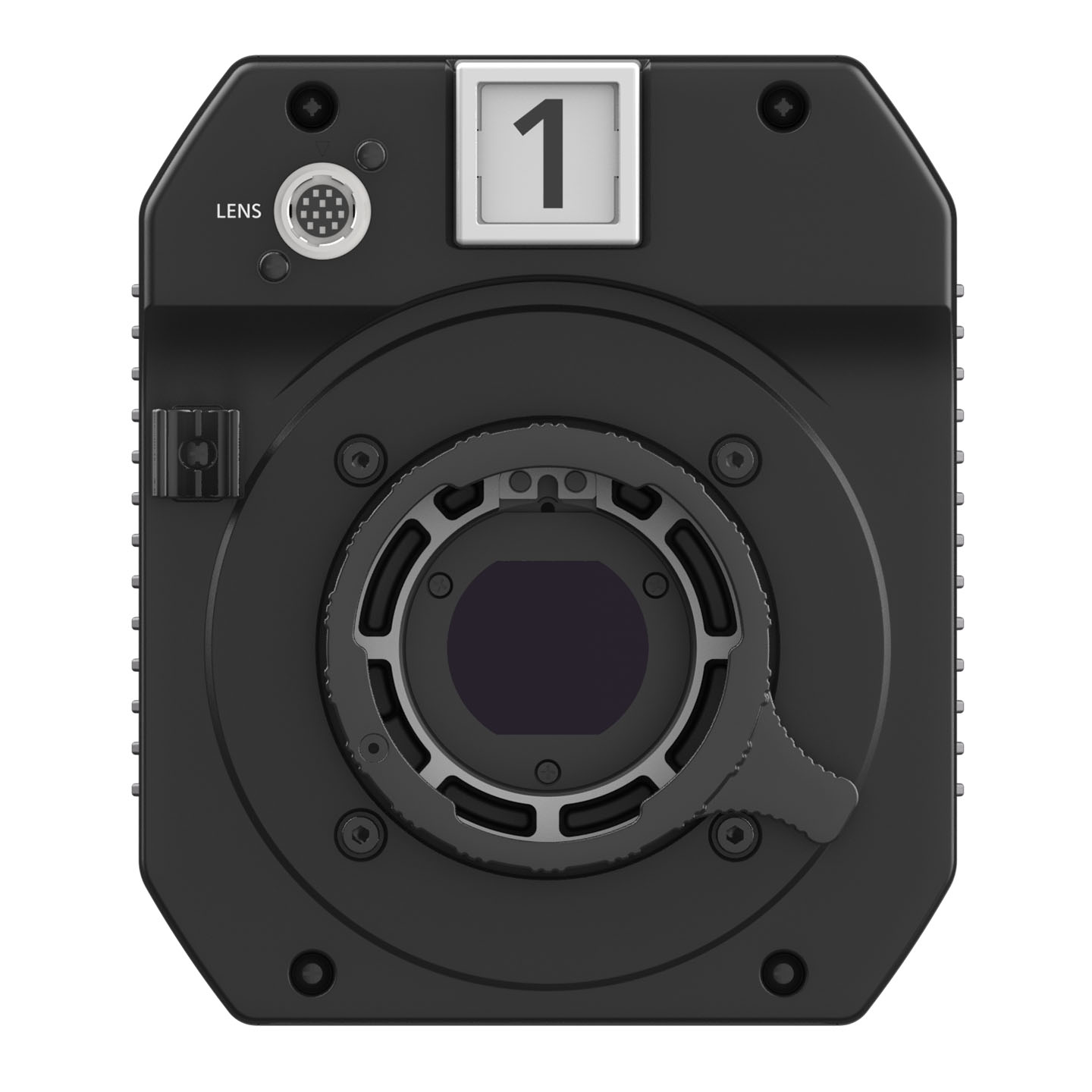

03_UBX100_(Front Panel with B4 Lens Mount)

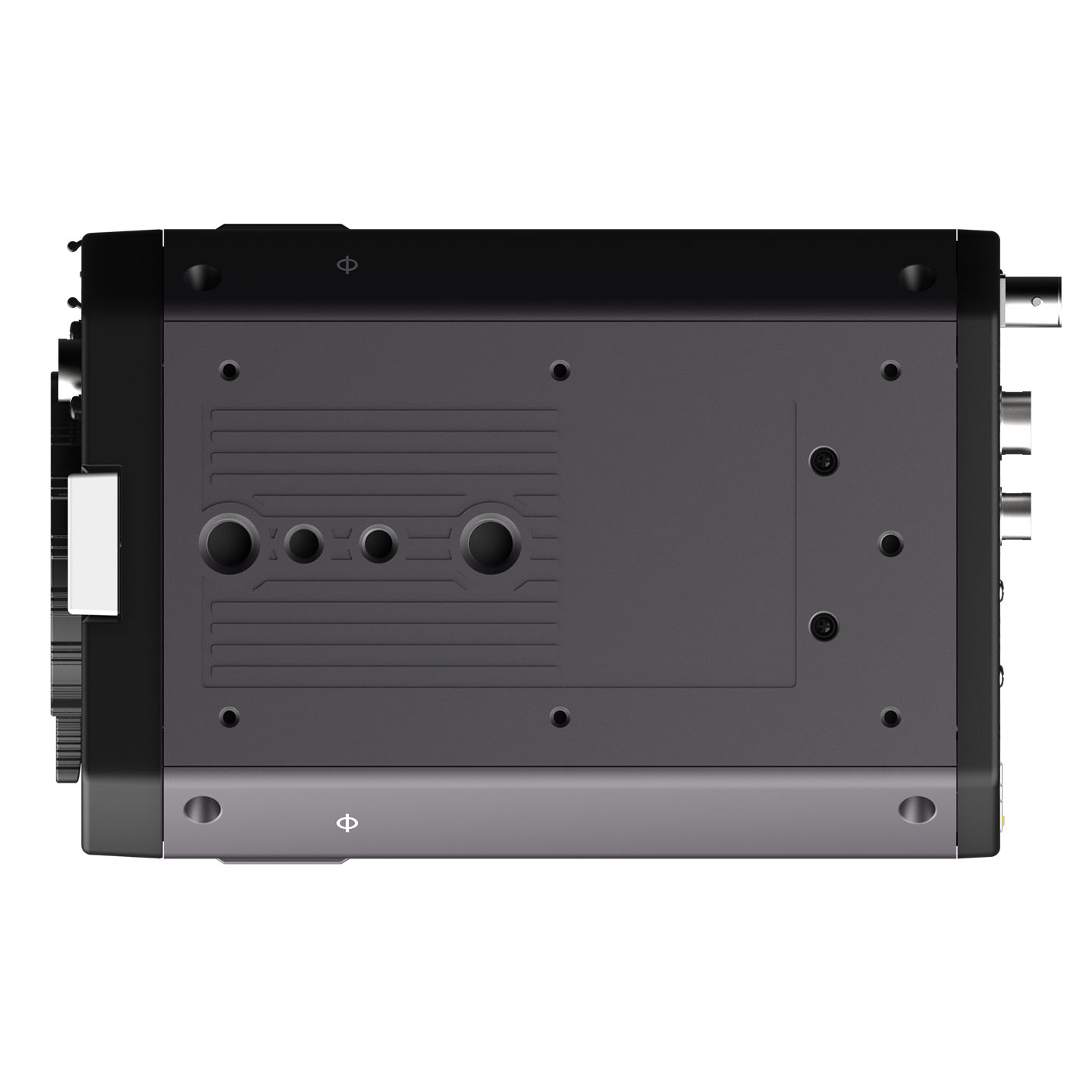

04_UBX100_(Top View – Rigging Interface)

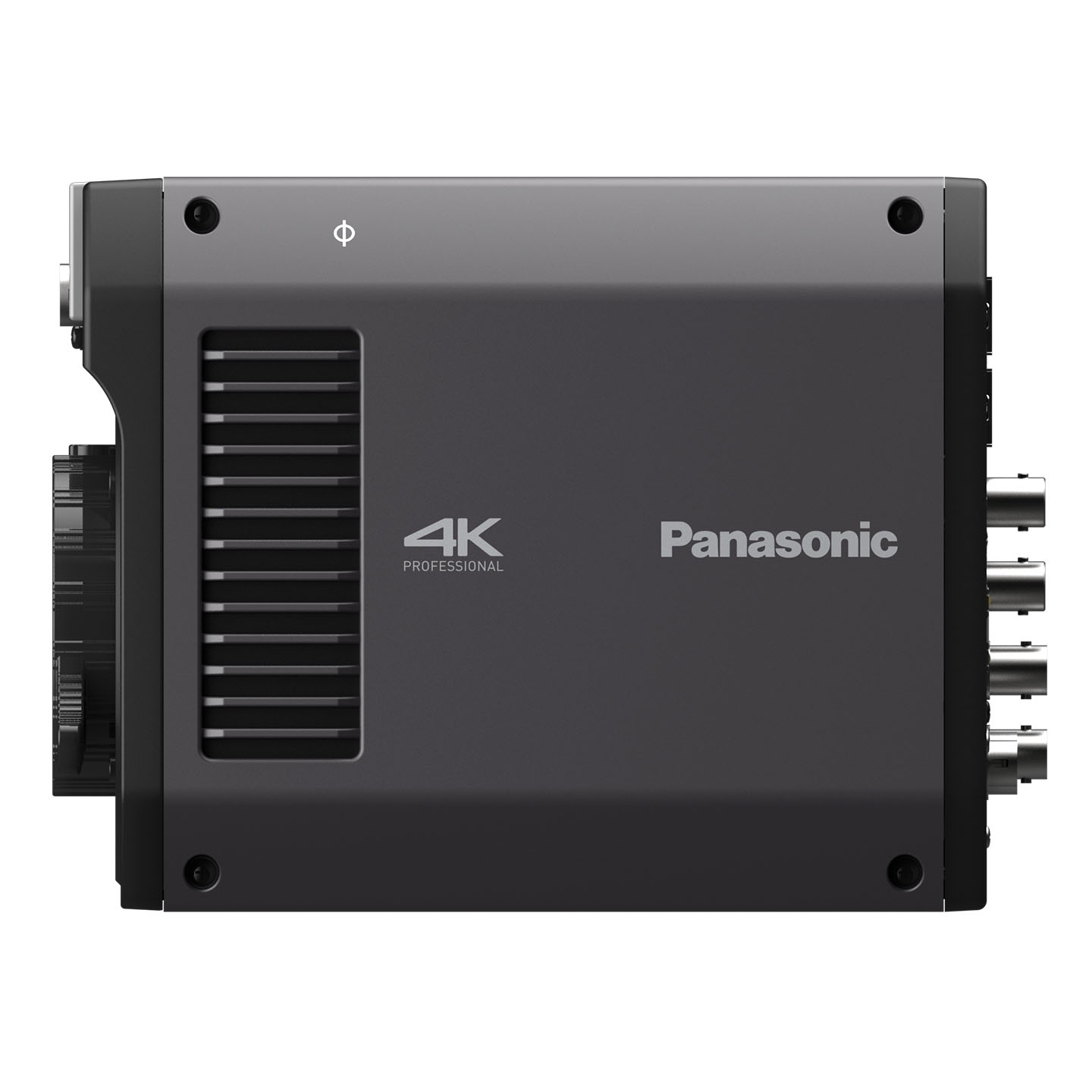

05_UBX100_(Right Profile with Cooling Vent)

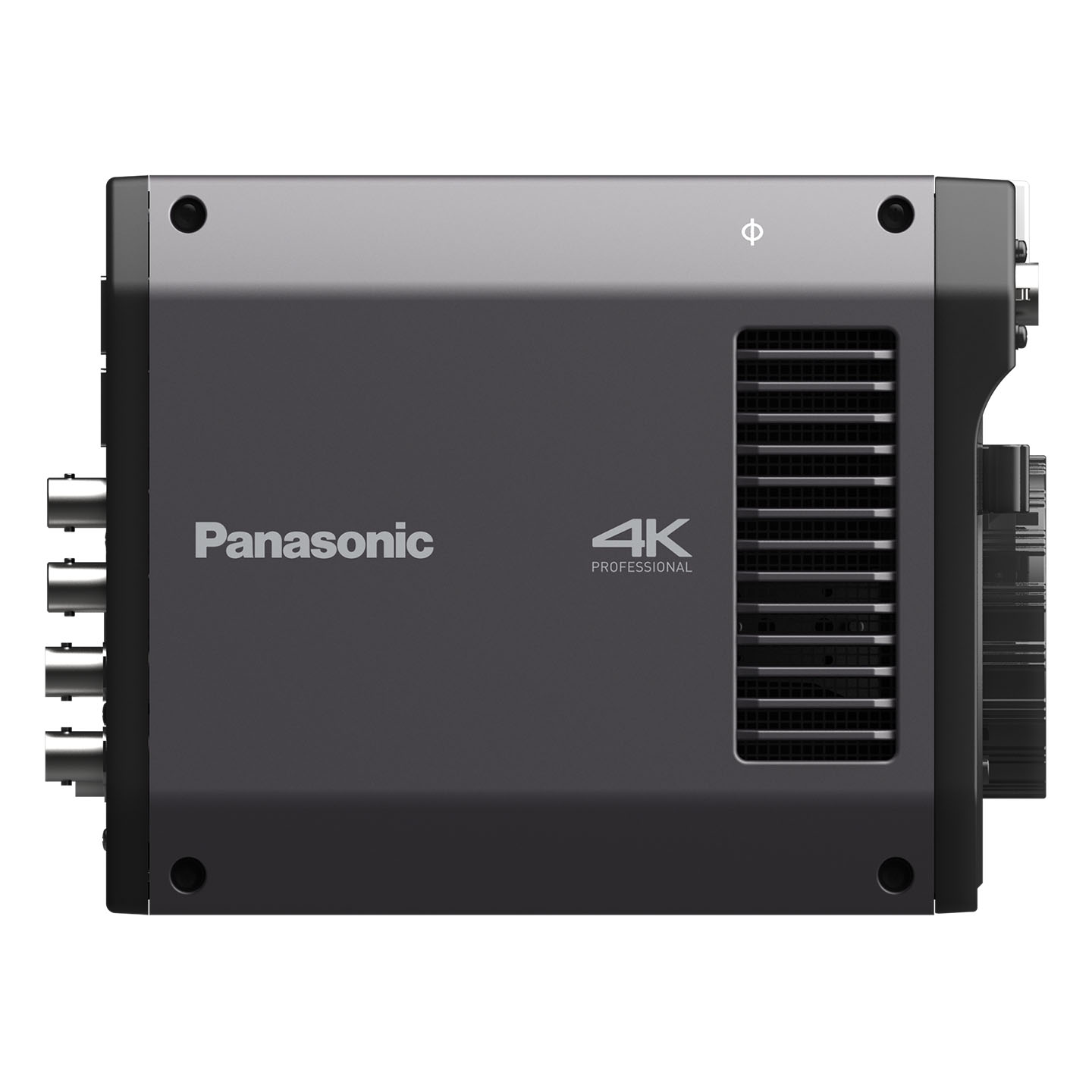

06_UBX100_(Left Profile with Cooling Vent)

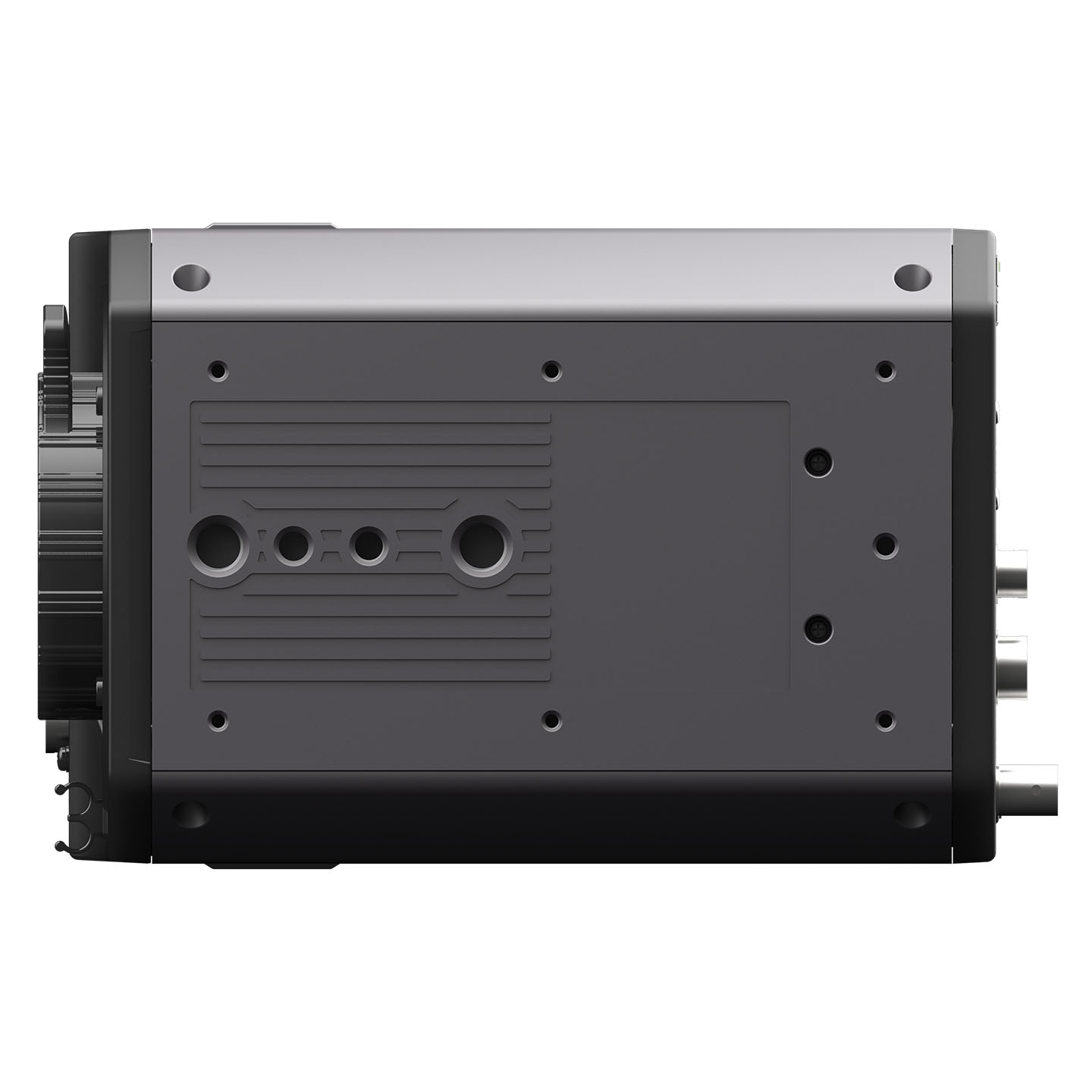

07_UBX100_(Bottom View – Rigging Interface)

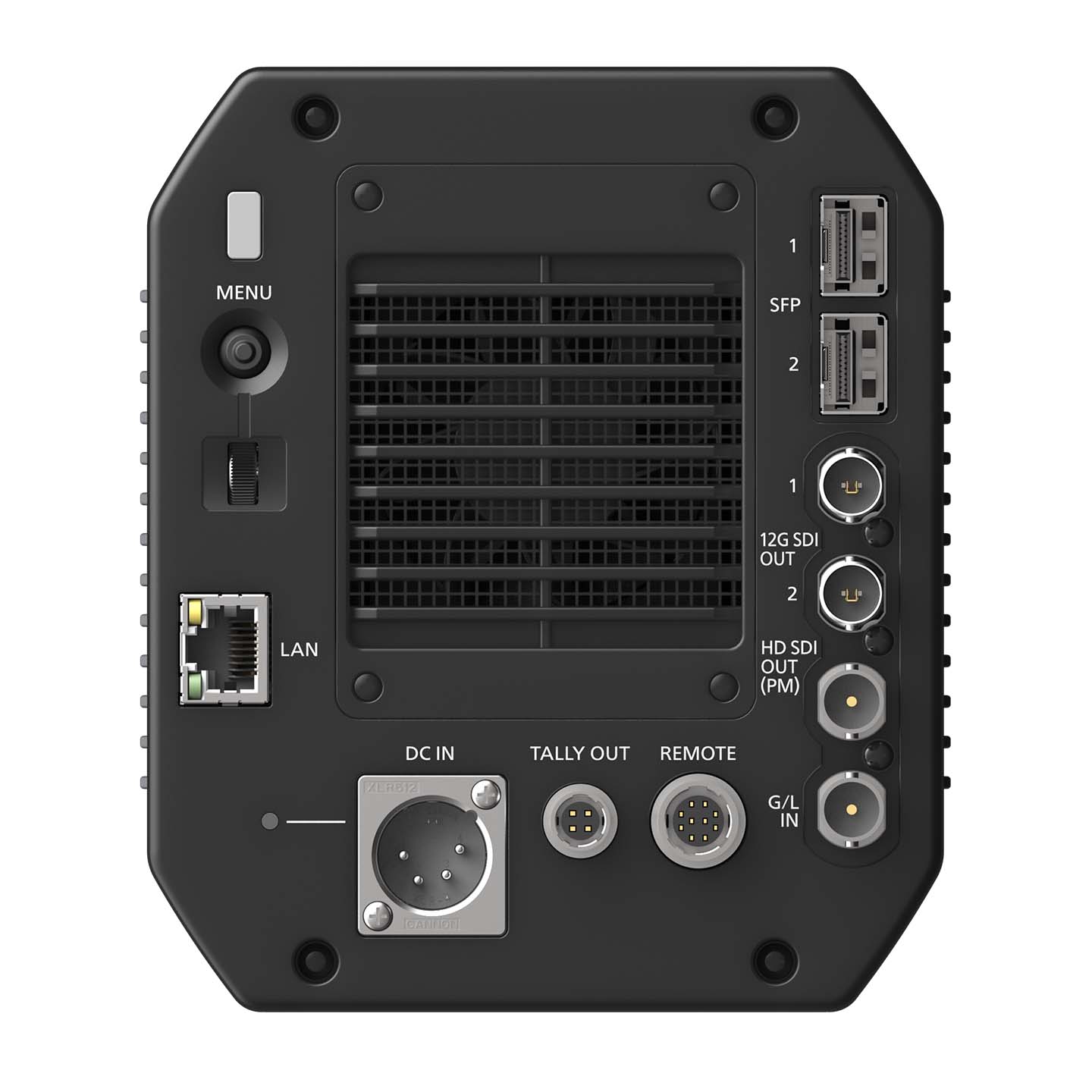

08_UBX100_(Back Panel with IO Interfaces)
new

4K Multi-Purpose Camera

SKU:

  • AK-UBX100
Specifications

The AK-UBX100 is a box-style 4K camera with a 2/3-inch bayonet mount designed for studio, sports, and live production, offering seamless integration through simplified color matching across the AK-UCX100 and AW-UE160, while sharing key features — including Auto Focus (AF) — with the AK-UCX100 to ensure consistent performance and enhanced remote operability; delivering 2,000 TV lines and HDR for detailed, lifelike images, it operates without a CCU and supports advanced IP workflows including SMPTE ST 2110, NDI® High Bandwidth, SRT, dual 12G-SDI outputs, and SDI over fiber for optical signal transmission.

Contact Sales

  • Independent operation without a CCU
  • Supports 12G-SDI (x2), SMPTE ST 2110, NDI® high bandwidth, SRT, and SDI signals / SDI over fiber
  • Supports network redundancy (SMPTE ST 2110)​
  • Simultaneous HDR/HLG (BT.2020) and SDR (BT.709)​
  • 2,000 TV line horizontal and vertical resolution​
  • Moiré Reduction - OLPF
  • AF - One of the World’s first autofocus function built into a camera head
  • Integration with Panasonic studio and PTZ cameras
  • Compact, lightweight: approx. 1.9 kg body
  • Integrated control/tally into a single LAN line

Specifications

SKU AK-UBX100
General - Power Supply DC 12 V（DC11V－17V）
40 W (body only, when outputting 12G SDI) 60 W (maximum power when all accessories are connected and each output terminal is outputting at maximum)
General - Operating Temperature –10 °C to 45 °C (14 °F to 113 °F)
(Preheating required under a temperature 0°C (32 °F) or below)
General - Weight Approx. 1.9 kg (4.19 lbs.) (body only)
Camera Unit - Pickup Device 19.29 million pixels, MOS sensor
Camera Unit - Optical Filter (ND) CLEAR, 1/2, 1/4, 1/16, 1/64
Camera Unit - Lens Mount 2/3-type bayonet
Camera Unit - Sensitivity [LOW LIGHT]: F10 (59.94 Hz)/F11 (50 Hz)
[NORMAL]: F6 (59.94 Hz)/F7 (50 Hz)
2000 lx, 3200 K, when white reflectivity is 89.9%
Camera Unit - Horizontal Resolution (4K) 2000 TV lines or above (centre)
Video Output SDI OUT 1 & 2 BNC x 2
12G/3G/1.5G-SDI: 0.8 V [p‑p], 75 Ω
Other Input/Output - <SFP 1> For SFP+/28 transceiver x 1
 - SMPTE 2110
 - SDI Video Signal over Fiber Cable
Other Input/Output - <SFP 2> For SFP+/28 transceiver x 1
 - SMPTE 2110
 - Control Signal/ Over Fiber Cable
Other Input/Output - <DC IN> XLR x 1, 4-pin, DC12 V
Other Input/Output - <LAN> RJ-45 x 1
- NDI® High Bandwidth, SRT and FreeD*
* Only lens information is supported.
