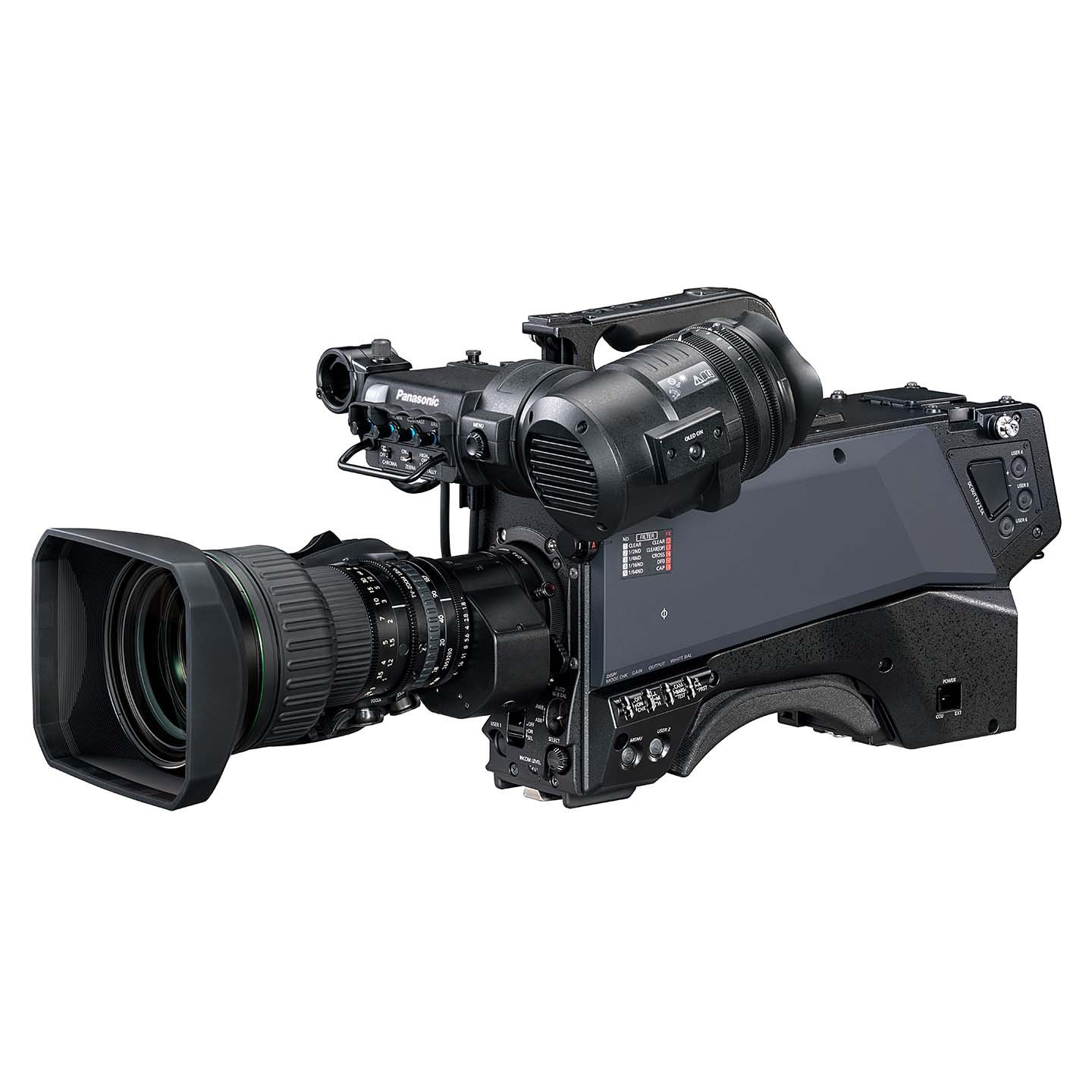

Image of full operational setup of the AK-UCX100 with attached broadcast lens and viewfinder, illustrating the camera’s ready-to-shoot studio configuration.

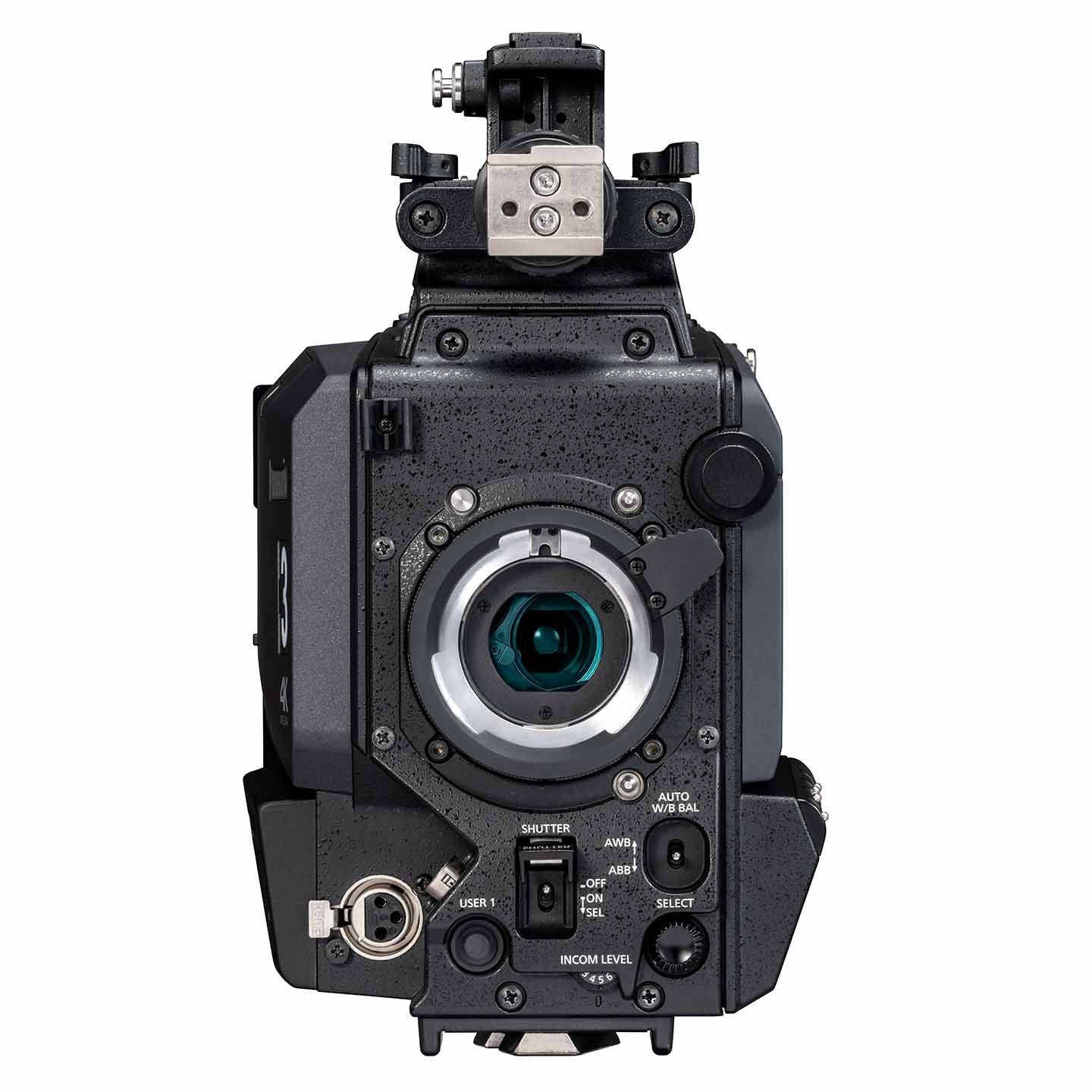

Front of AK-UCX100 camera with lens mount and optical block, accessible controls for shutter, white balance, and user settings positioned around the mount.

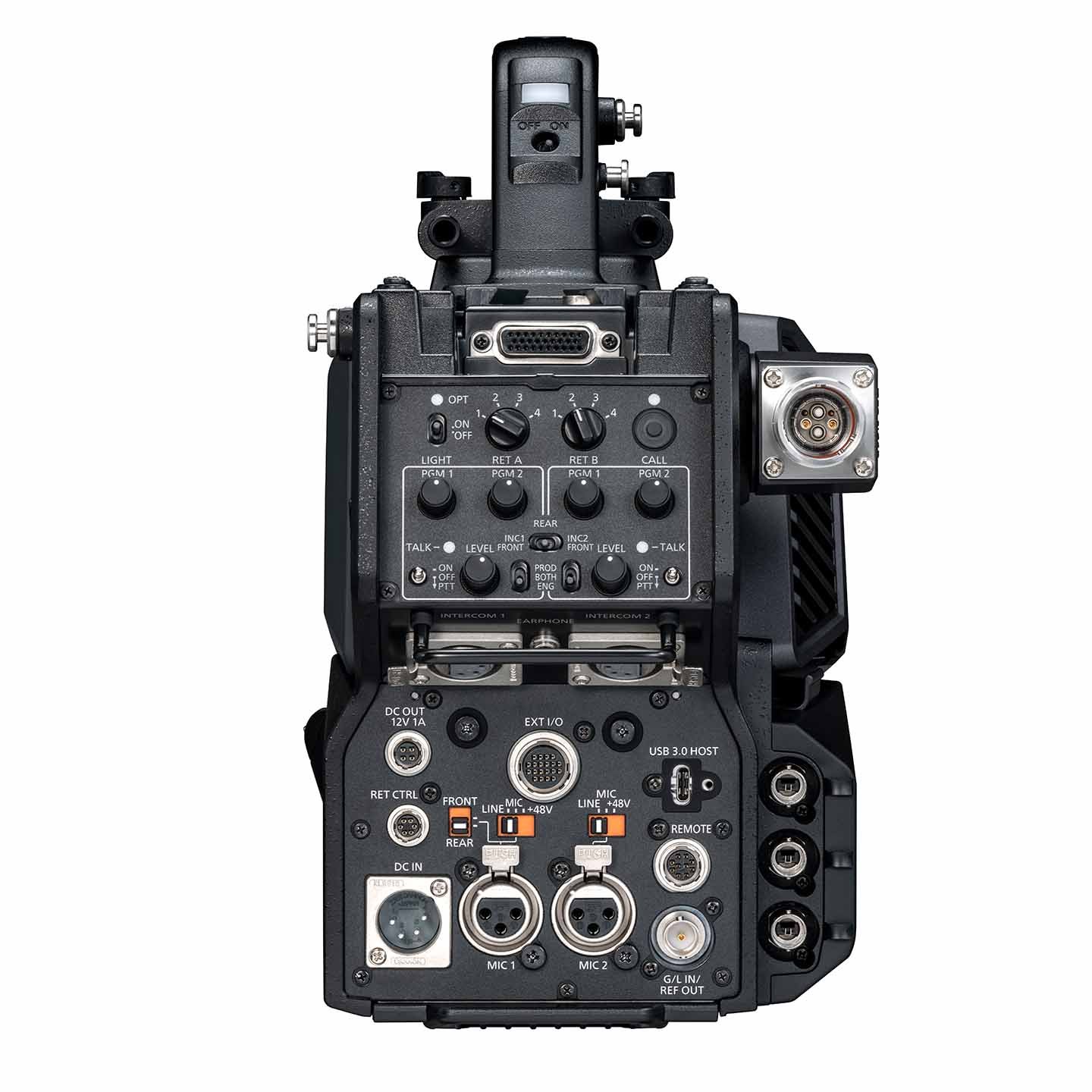

Rear camera panel highlights extensive connectivity, including audio inputs, intercom controls, USB, remote, and multiple broadcast I/O ports for studio Integration.

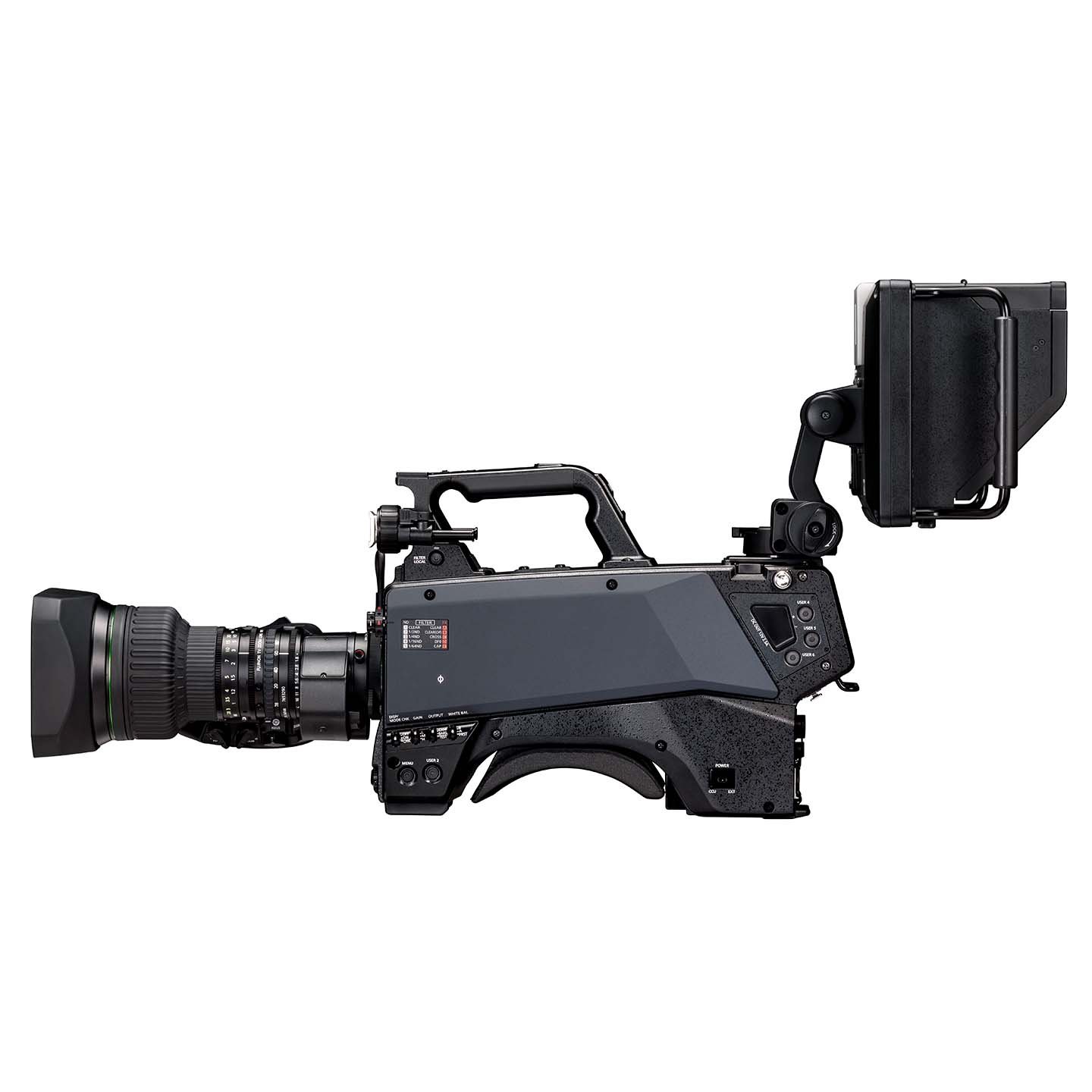

Side view of camera displaying the ergonomic body design, control buttons, and mounted viewfinder, optimized for studio and shoulder-style operation.

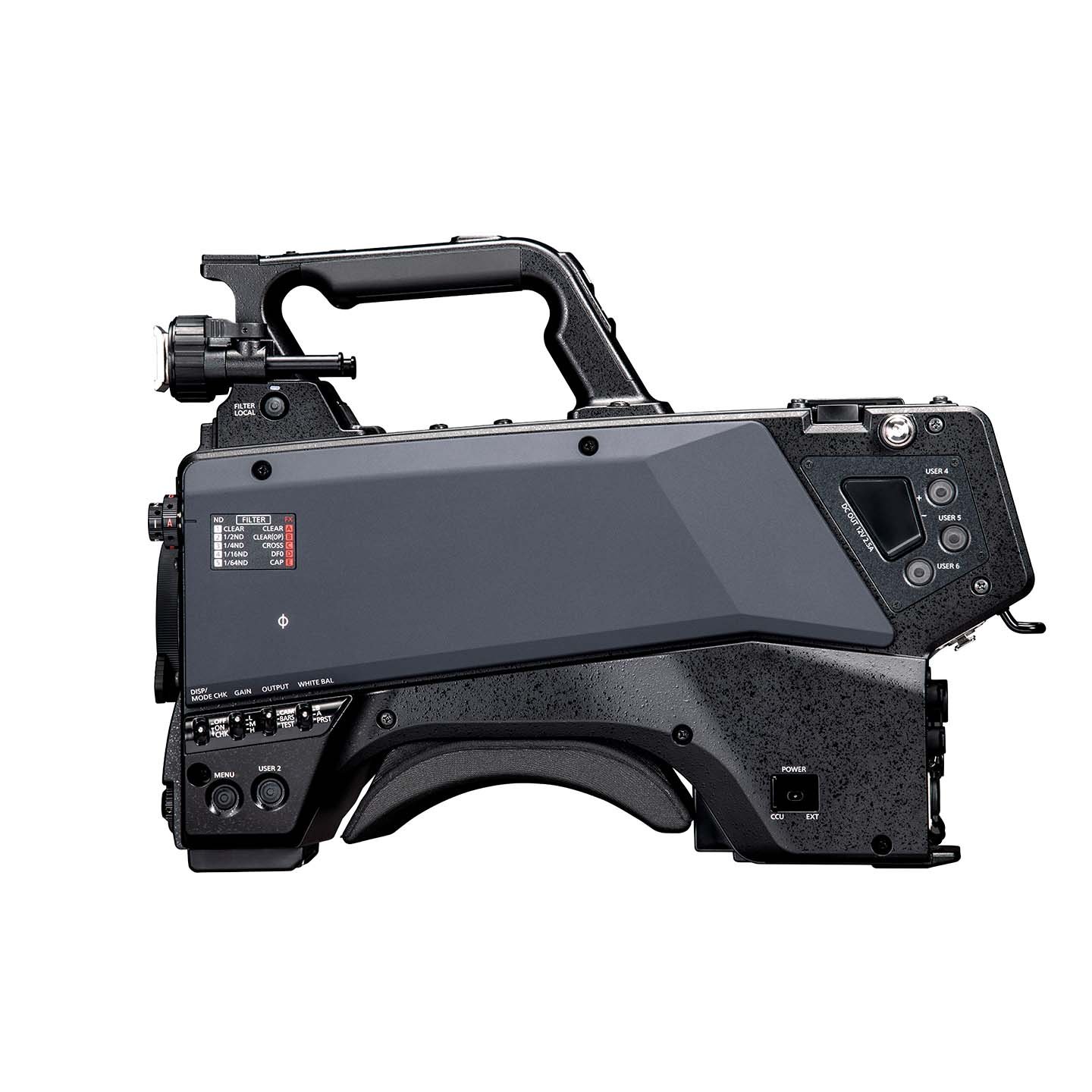

Clean side view of the AK-UCX100 camera body emphasizing its streamlined housing, integrated handle, and control layout.

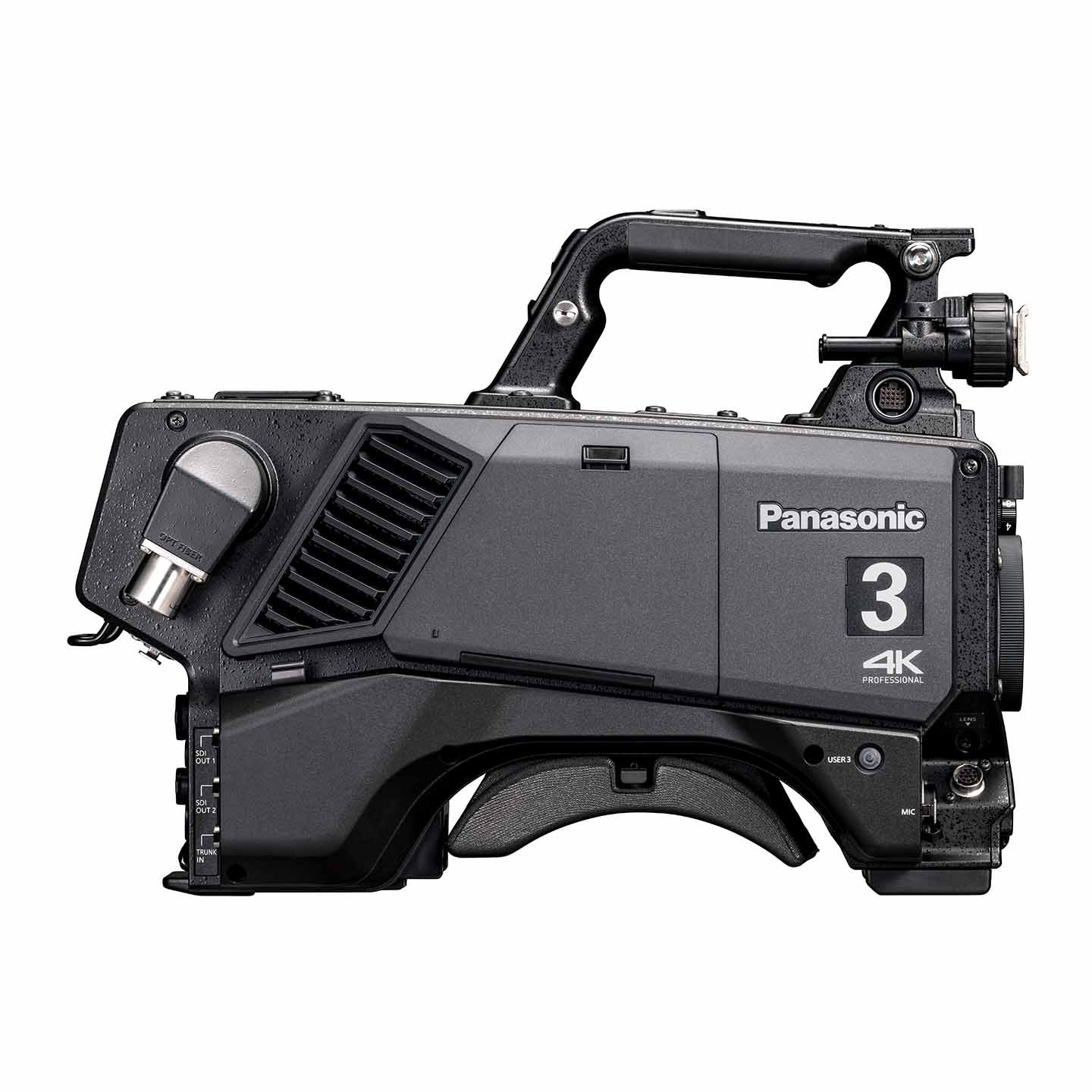

An opposite side view of the camera reveals ventilation, branding, and additional ports, along with the fiber connection interface for studio transmission.

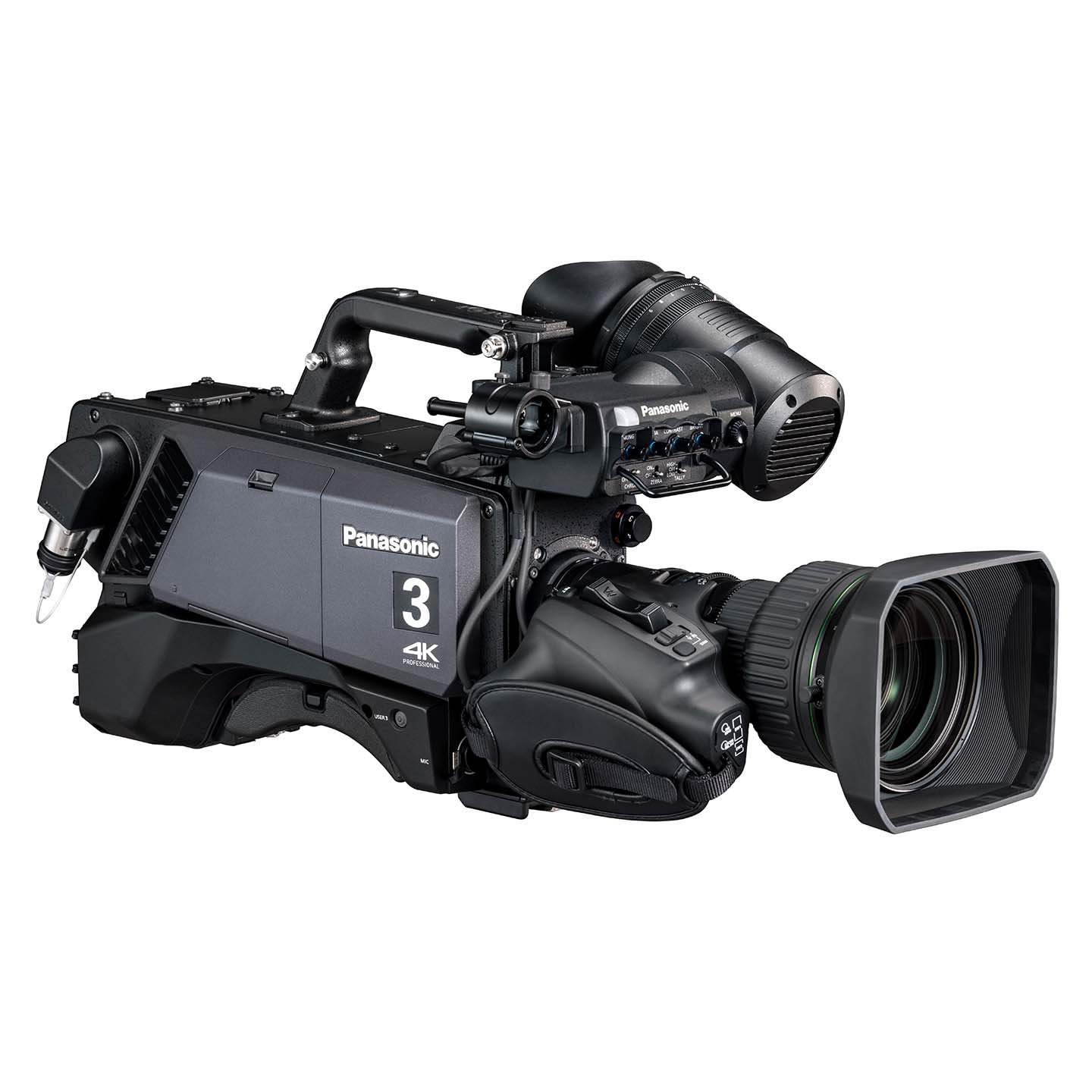

Angle view of the Panasonic camera AK-UCX100 with lens and viewfinder attached, highlighting its robust build and professional broadcast ergonomics.

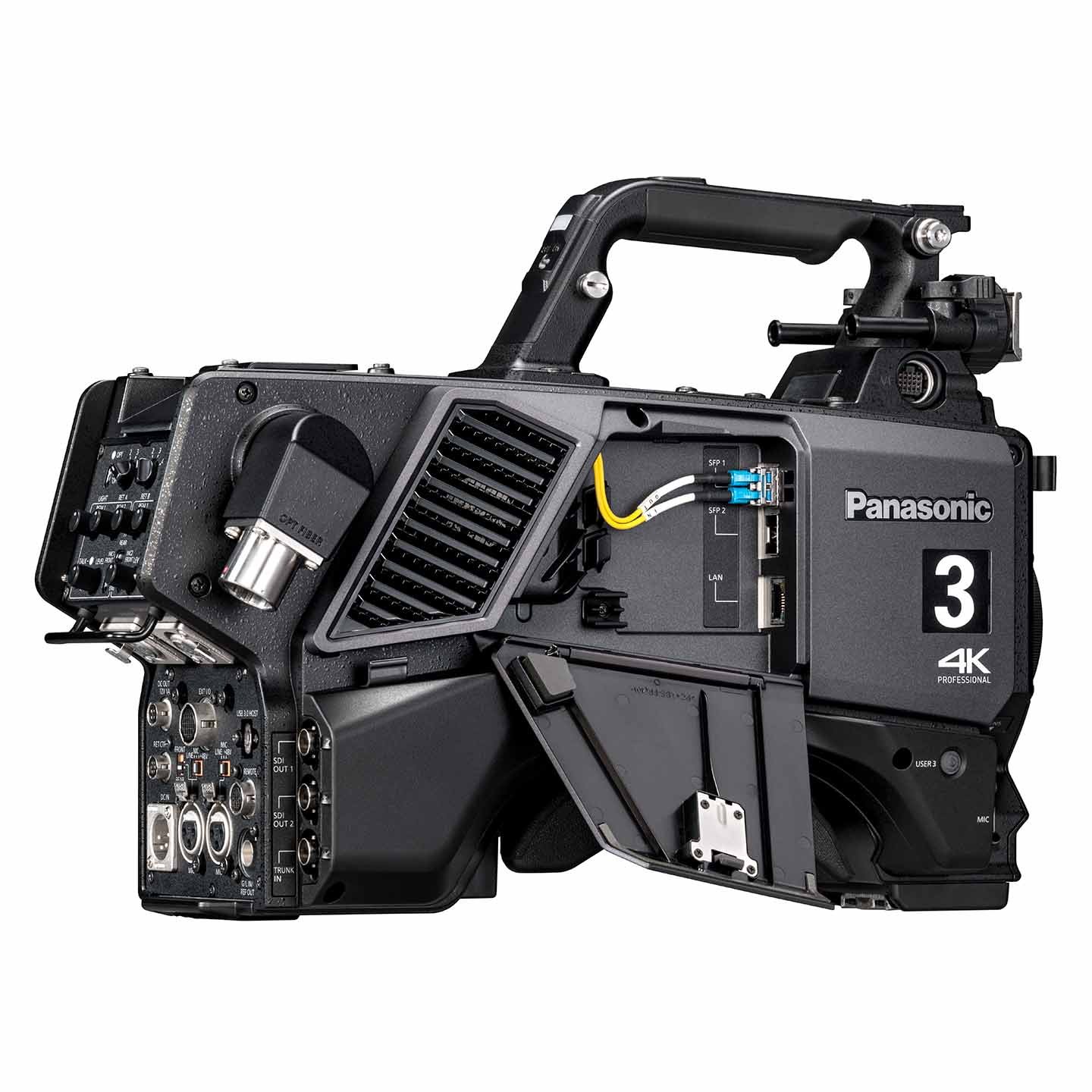

Open side compartment of the AK-UCX100 exposing internal connection terminals, including fiber and LAN interfaces for flexible system configuration.
Alternate configuration of the terminal compartment of the AK-UCX100, showing multiple fiber connections for redundancy or expanded connectivity.

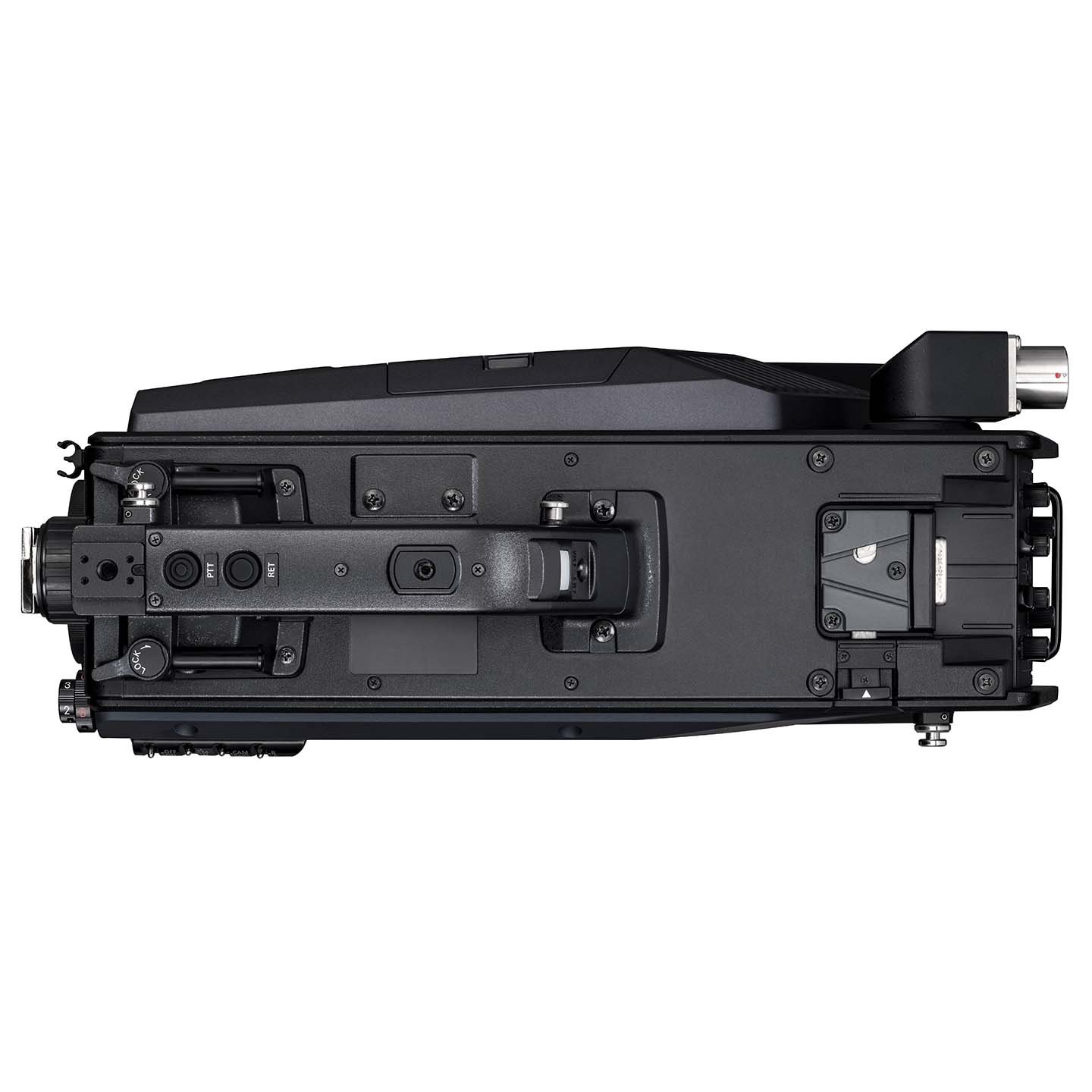

Overhead view of the Panasonic AK-UCX100 showing the handle, mounting points, and top layout, designed for easy transport and accessory attachment.

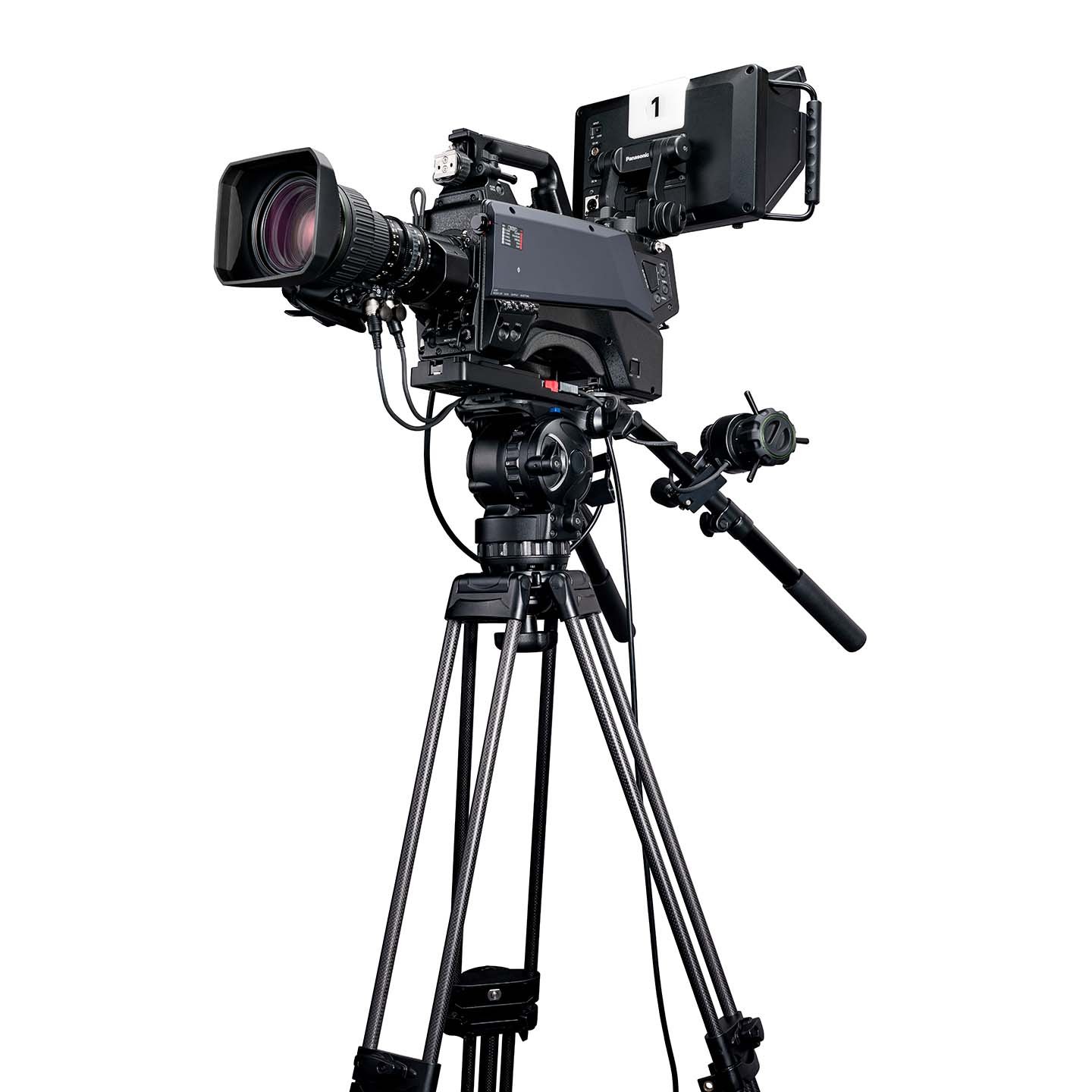

Tripod mounted studio configuration of the Panasonic AK-UCX100
new

4K Studio Camera

SKU:

  • AK-UCX100
Specifications
The AK-UCX100GSJ 4K studio camera from Panasonic is designed for top-notch video production across studio work, sports, and live events. Delivering exceptional clarity with 2,000 TV lines resolution and vibrant colors through HDR technology, it ensures detailed and realistic images. Operating independently of a Camera Control Unit (CCU), this camera embraces IP innovation with support for SMPTE ST 2110, NDI® High Bandwidth, SRT, and dual 12G-SDI outputs. SMPTE ST 2110 enhances network reliability and JPEG XS compatibility allows for low-latency, visually lossless video transmission and stable IP operation.
Contact Sales

  • Independent operation without a CCU​
  • Supports 12G-SDI (x2), SMPTE ST 2110, NDI® High Bandwidth, SRT, and more​
  • Supports network redundancy (SMPTE ST 2110)​
  • Simultaneous HDR/HLG (BT.2020) and SDR (BT.709)​
  • 2,000 TV line horizontal and vertical resolution​
  • Moiré Reduction - OLPF
  • AF - One of the World’s first autofocus function built into a camera head
  • Integration with Panasonic PTZ Cameras
  • Video and Data Transmission (TRUNK)
  • Supports 4K 2x and HD 4x high-speed shooting

Specifications

SKU AK-UCX100
General - Power Supply DC 12 V (when using an external power supply)
AC 240 V, 50 Hz/60 Hz(AK-UCU710/AK-UCU710S/AK-UCU700/AK-UCU700S/AK-CFA100 in connected)
General - Operating Temperature –10 °C to 45 °C (14 °F to 113 °F)
(Preheating required under a temperature 0°C (32 °F) or below)
General - Weight Approx. 4.55 kg (9.90 lbs.) (body only, excluding the accessories)
Camera Unit - Pickup Device 19.29 million pixels, MOS sensor
Camera Unit - Optical Filter (ND) CLEAR, 1/2, 1/4, 1/16, 1/64
Camera Unit - Optical Filter (FX) CLEAR, CLEAR (Option*), CROSS, Diffusion, CAP
*Option: HD-Optical Low Pass filter
Camera Unit - Lens Mount 2/3-type bayonet
Camera Unit - Sensitivity [LOW LIGHT]: F10 (59.94 Hz)/F11 (50 Hz)
[NORMAL]: F6 (59.94 Hz)/F7 (50 Hz)
2000 lx, 3200 K, when white reflectivity is 89.9%
Camera Unit - Horizontal Resolution (4K) 2000 TV lines or above (centre)
Video Output SDI OUT 1 & 2 BNC x 2
12G/3G/1.5G-SDI: 0.8 V [p‑p], 75 Ω
Audio Input/Output
MIC 1 & 2
XLR x 1, 3-pin female type
<LINE>/<MIC>/<+48V> switchable
For <MIC>, <FRONT>/<REAR> switchable
<LINE>: 0 dBu,＋4 dBu menu selection available
<MIC>: −60 dBu, −40 dBu, or −20 dBu menu can be selected
Intercom INTERCOM 1 & 2
XLR x 1, 5-pin, female type
Other Input/Output SFP 1 & 2 - SFP28 x2
Optical composite connector x 1
Other Input/Output (DC IN) XLR x 1, 4-pin, DC12 V
Other Input/Output (LAN) RJ-45 x 1
