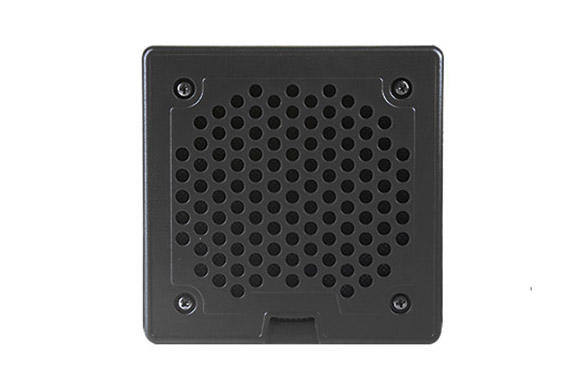

Attune II Speaker Mic
The WX-CS560 for Attune is a low profile speaker/mic that completes the noise cancelling drive-thru Attune II system.
- Low Profile Speaker
- Noise Cancelling
- Takes 1,100 lbs of force
Product Specifications
| SKU | WX-CS560 |
|---|---|
| Dimensions | 114 mm x 114 mm x 70 mm |
| Weight | Approximately 1.2 kg {2.6 lbs.} with brackets |
| Cables | Approximately 2700 mm |
| Inner sheath color | Red: + / Black: – / Gray: GND |
| Connector | Euro type 3P connector |
| Finish | Plastic-molded, black |
| Microphone frequency response | 100 Hz - 6000 Hz |
| Microphone sensitivity | –52 dB |
| Sound pressure level | 90 dB |
| Impedance | 8 Ω |
| Speaker frequency response | 250 Hz to 15000 Hz |
| Power capacity | 5 W |
