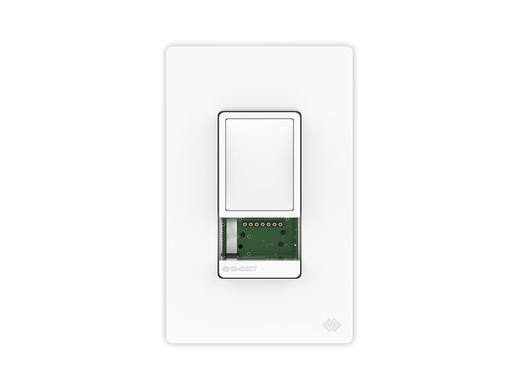

Auxiliary Control Switch - s16009wa_1

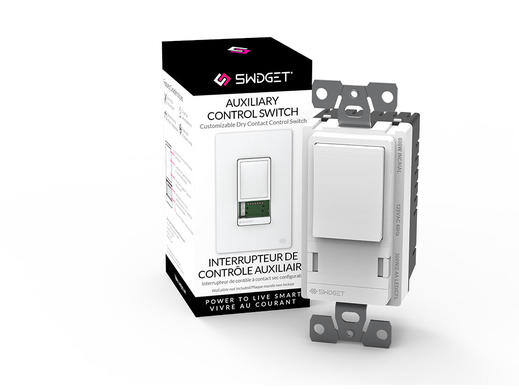

Auxiliary Control Switch - s16009wa_2

Auxiliary Control Switch

SKU:

  • S16009WA
Product Specifications

125VAC 5A modular Smart Home enabled wall switch.

Contact Sales

  • UP/DOWN buttons with capability for automation programming (Wi-Fi Inserts only)
  • Single pole and dry contact wiring, compatible for lighting and fan applications
  • Complies with ASHRAE 62.2 when used with an ASHRAE 62.2 compliant fan/ERV/HRV
  • Wide range of customization and feature options with plug and play Swidget Inserts

Product Specifications

SKU S16009WA
Input power rating 125VAC, 5A
Wiring type Pre-stripped wire leads (Line/Neutral) #16 AWG (Stranded), Ground screw
Testing and code compliance UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US)
Flammability UL94 5VA
Environmental Indoor installation only
Operating temperature -10 °C to 40 °C) (14 °F to 104 °F)
Insert voltage output Nominal 5VDC (+/- 5%)
Insert DC protection CLASS 2 - Current limiting and thermal shutdown protection
Insert current output Constant current maximum 2.0A
LED/CFL load rating 300W
Incandescent/Halogen load rating 600W
Horsepower load rating 0.3HP
Switch configuration Single pole, dry contact
Number of poles --
Compatibility --

Swidget Smart Devices

The Swidget product line has been developed to support the easy integration of Home Automation and Smart Home markets with unique and flexible solutions. Adding a Swidget Insert turns the wired device into a powerful and flexible Smart Home device. The interchangeability of the Swidget Inserts ensure that the system can work with any existing or future Smart Home wireless system.

Auxiliary Control Switch

The Auxiliary Control Switch has the ability to allow interchangeable Swidget Inserts to be installed, removed or replaced - making Swidget the optimal choice for building renovations and new construction. The Swidget Auxiliary Control Switch uses a simple 4-wire interface, making installation simple for any single pole or dry contact application.
