White wall switch with exposed electronic components.

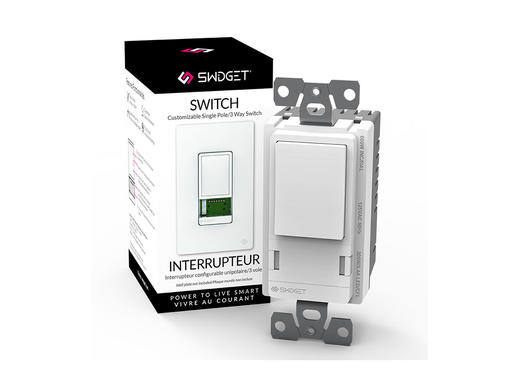

Customizable smart light switch next to its packaging box.

On/Off Switch

SKU:

  • S16001WA
Product Specifications

125VAC 5A modular Smart Home enabled single or 3-way switch.

Contact Sales

  • Single and 3-way wiring compatible for lighting and fan applications
  • Capability for scene programming (Wi-Fi Inserts only)
  • Direct power monitoring
  • Wide range of customization and feature options with plug and play Swidget Inserts

Product Specifications

SKU S16001WA
Input power rating 125VAC, 5A
Wiring type Pre-stripped wire leads (Line/Neutral) #16 AWG (Stranded), Ground screw
Testing and code compliance UL508/ UL1310, CSA C22.2 #223 (Canada and US) – Apr 2020
Flammability UL94 5VA
Environmental Indoor installation only
Operating temperature -10 °C to 40 °C) (14 °F to 104 °F)
Insert voltage output Nominal 5VDC (+/- 5%)
Insert DC protection CLASS 2 - Current limiting and thermal shutdown protection
Insert current output Constant current maximum 2.0A
LED/CFL load rating 250W
Incandescent/Halogen load rating 600W
Horsepower load rating 0.3HP
Switch configuration Single, 3-Way
Number of poles --
Compatibility --

Swidget Smart Devices

The Swidget product line has been developed to support the easy integration of Home Automation and Smart Home markets with unique and flexible solutions. Adding a Swidget Insert turns the wired device into a powerful and flexible Smart Home device. The interchangeability of the Swidget Inserts ensure that the system can work with any existing or future Smart Home wireless system.

On/Off Switch

The On/Off Switch has the ability to allow interchangeable Swidget Inserts to be installed, removed or replaced - making Swidget the optimal choice for building renovations and new construction. The Swidget On/Off Switch, specifically designed for LED lighting, uses a simple 4-wire interface, making installation easy.
