4-Way Ceiling Cassette Cool & Heat
Panasonic 4-Way ceiling cassette heating and cooling single-zone mini-split air conditioner provides 4 directional air flow from a flush to ceiling inset units. Indoor unit operates with single and multi-zone outdoor units.

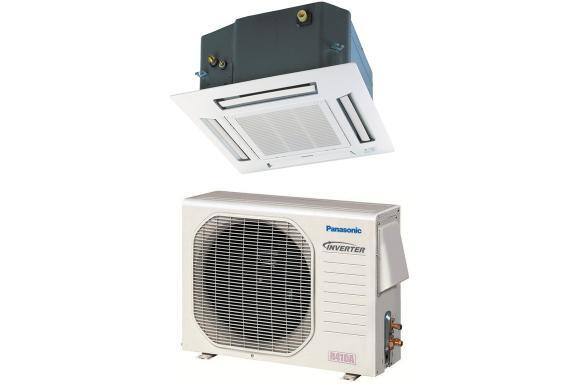

- CS-E12RB4UW indoor unit (use w/ single or multi zone outdoor); CU-E12RB4U outdoor unit (single zone)
- CZ-BT20U indoor grille sold separately
- Cooling capacity: 11,900 (4,100 – 13,100) Btu/h; Heating capacity: 13,600 (4,100 – 16,300) Btu/h
- SEER2 18.00 / EER2 10.30 / HSPF2 (Region 4 / Region 5) 8.70 / 6.70
- Wireless controller included and wired controller CZ-RD52CU optional, WIFI option also available
Product Specifications
| SKU | E12RB4U |
|---|---|
| Indoor Unit | CS-E12RB4UW |
| Outdoor Unit | CU-E12RB4U / Multizone |
| Capacity Cooling (Btu/h) / KW | 11,900 (4,100 - 13,100) |
| Capacity Heating (Btu/h) / KW | 13,600 (4,100 – 16,300) |
| Moisture Removal - High (pints/H) | 4 |
| Dry Air Flow - High (CFM) | 390/370 |
| SEER2 | 18.00 |
| EER2 | 10.30 |
| HSPF2 - Region 4 / Region 5 | 8.70 / 6.70 |
| Power Supply (V, Phase, Hz) | 208 / 230V, Single phase, 60Hz |
| Power Input - Cooling (W) | 11,900 (4,100-13,300) |
| Power Input - Heating (W) | 13,600 (4,100-16,300) |
| Dimensions (indoor) (H x W x D) | 10-1/4" x 22-21/32" x 22-21/32" |
| Dimensions (outdoor) (H x W x D) | 21-9/32" x 30-23/32" x 11-13/32" |
| Weight (indoor/outdoor) (Lbs) | 40/82 |
