ClimaPure® XE Series Single Split System
Ductless heating and air conditioning systems provide optimal comfort along with the reduced energy consumption that comes with zoned temperature control. The new XE ductless system features nanoe™ X — a built-in air and surface purification technology that provides a comfortable environment for occupants.

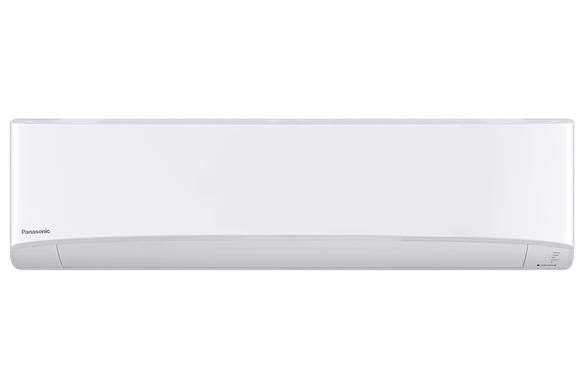

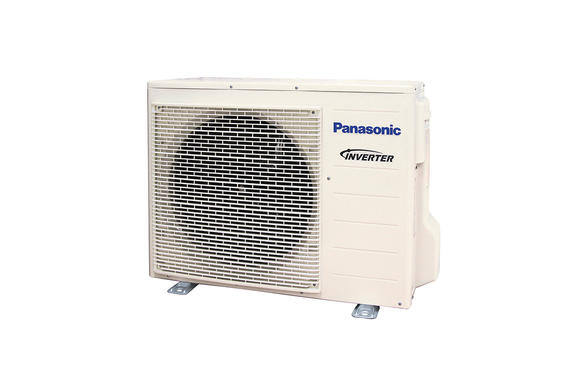

- Indoor unit: CS-XE12WKUAW / Outdoor unit: CU-XE12WKUA
- -26°C (-15°F) Cold Climate Heating Operation
- Base pan heater included
- Built-in Wi-Fi
- Auxiliary heater connection
- Service Manual - HVAC - XE12WKUA
- Installation Manual - HVAC - XE12WKUA
- Submittal Sheet - HVAC - ClimaPure Single Split System - XE12WKUAW
- Submittal Sheet - HVAC - ClimaPure Indoor Unit - CS-XE12WKUAW
- Heat Pump Solutions Catalog (R410 refrigerant)
- Specification Guide - ClimaPure XE Series
- Residential Heat Pump Solutions Catalog - 2020
- Operating manual / Manuel d'utilisation - XE9/XE12/XE15WKUA (English-Français)
Product Specifications
SKU | XE12WKUA |
---|---|
Indoor Unit | CS-XE9WKUAW |
outdoor Unit | CU-XE9WKUA |
Capacity Cooling (Btu/h) / KW | 9,000 (2,800 - 12, 000) / 0.54 KW |
Capacity Heating (Btu/h) / KW | 10,900 (3,000 / 18,000) / 0.69 KW |
Moisture Removal - High (pints/H) | 1.3 |
Dry Air Flow - High (CFM) | 10.80 / 11.20 |
SEER2 | 24.60 |
EER2 | 14.15 |
HSPF2 - Region 4 / Region 5 | 11.00 / 8.70 |
Power Supply (V, Phase, Hz) | 208 / 230V, Single Phase, 60Hz |
Power Input - Cooling (W) | 540 |
Power Input - Heating (W) | 670 |
Dimensions (indoor) (H x W x D) | 11.61" x 34.25" x 9.05" (295 x 870 x 230 mm) |
Dimensions (outdoor) (H x W x D) | 24.37" x 32.44" x 11.77" (619 x 824 x 299 mm) |
Weight (indoor/outdoor) (Lbs) | 24 / 81 |
