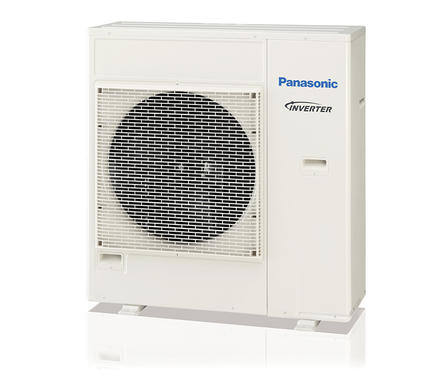

Outdoor Multi-Zone Split - 2-4 Zone
2 Ton multi-zone outdoor condenser unit provides heating and cooling for 2-4 indoor units and -5 °F cold climate heat operation. Select wall mount, 4-way cassette or slim duct units for indoor installation.
- Cooling capacity: 24,000 (10,200 - 31,400) Btu/h, heating capacity: 37,800 (14,300 - 48,500) Btu/h
- SEER2 Non-Ducted 22.00 / Ducted 19.00
- EER2 Non-Ducted 12.55 / Ducted 10.85
- HSPF2 (Region 4 / Region 5) Non-Ducted 9.10 / 7.30 and Ducted 8.80 / 7.30
- ENERGY STAR (Non-Ducted)
Product Specifications
| SKU | CU-4E24RBU-5 |
|---|---|
| Indoor Unit | Wall mount, 4-Way cassette, slim duct |
| Outdoor Unit | CU-4E24RBU-5 |
| Capacity Cooling (Btu/h) / KW | 24,000 (10,200 - 31,400) |
| Capacity Heating (Btu/h) / KW | 37,800 (14,300 - 48,500) |
| Moisture Removal - High (pints/H) | -- |
| Dry Air Flow - High (CFM) | 1,963 Cooling / 2,230 Heating |
| SEER2 | Non-Ducted 22.00 / Ducted 19.00 |
| EER2 | Non-Ducted 12.55 / Ducted 10.85 |
| HSPF2 - Region 4 / Region 5 | Non-Ducted 9.10 / 7.30 and Ducted 8.80 / 7.30 |
| Power Supply (V, Phase, Hz) | 230 / 208 V, Single phase, 60 Hz |
| Power Input - Cooling (W) | 1,910 (530-2,870) |
| Power Input - Heating (W) | 3,030 (700-4,380) |
| Dimensions (indoor) (H x W x D) | -- |
| Dimensions (outdoor) (H x W x D) | 39-11/32" x 37-1/32 "x 13-13/32" |
| Weight (indoor/outdoor) (Lbs) | --/183 |
