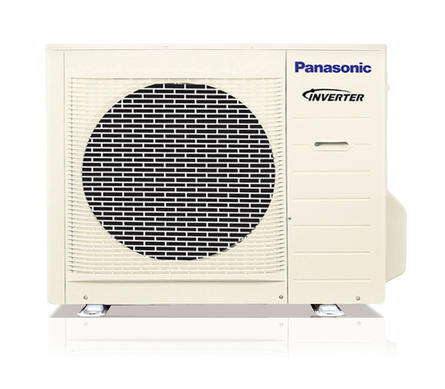

Outdoor Multi-Zone Split - 2-5 Zone
3 Ton multi-zone outdoor condenser unit provides heating and cooling for 2-5 indoor units and -5 °F cold climate heat operation. Select wall mount, 4-way cassette or slim duct units for indoor installation.
- Cooling capacity: 36,000 (9,900 - 39,000) Btu/h, heating capacity: 37,800 (11,600 - 49,500) Btu/h
- SEER2 Non-Ducted 18.50 / Ducted 16.50
- EER2 Non-Ducted 9.60 / Ducted 8.30
- HSPF2 (Region 4 / Region 5) Non-Ducted 9.10 / 6.70 and Ducted 8.40 / 6.50
- Blue Fin Condenser with anti-rust coating
Product Specifications
| SKU | CU-5E36QBU-5 |
|---|---|
| Indoor Unit | Wall mount, 4-Way cassette, slim duct |
| Outdoor Unit | CU-5E36QBU-5 |
| Capacity Cooling (Btu/h) / KW | 36,000 (9,900 - 39,000) |
| Capacity Heating (Btu/h) / KW | 37,800 (11,600 - 49,500) |
| Moisture Removal - High (pints/H) | -- |
| Dry Air Flow - High (CFM) | 2,512 Cooling / 2,475 Heating |
| SEER2 | Non-Ducted 18.50 / Ducted 16.50 |
| EER2 | Non-Ducted 9.60 / Ducted 8.30 |
| HSPF2 - Region 4 / Region 5 | Non-Ducted 9.10 / 6.70 and Ducted 8.40 / 6.50 |
| Power Supply (V, Phase, Hz) | 230 / 208 V, Single phase, 60 Hz |
| Power Input - Cooling (W) | 3,750 (550-3,860) |
| Power Input - Heating (W) | 2,900 (530-4,240) |
| Dimensions (indoor) (H x W x D) | -- |
| Dimensions (outdoor) (H x W x D) | 39-11/32" x 37-1/32" x 13-13/32" |
| Weight (indoor/outdoor) (Lbs) | --/183 |
