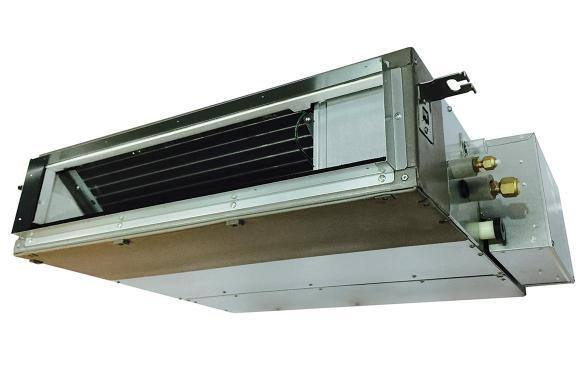

Single or Multi-Zone - Indoor Low-Profile Ducted Unit
18,000 Btu Indoor low-profile ducted unit for single or multi-zone installations. Use with specified single-zone outdoor unit or one of multi-zone outdoor units.
Product Specifications
| SKU | CS-E18SD3UAW |
|---|---|
| Indoor Unit | CS-E18SD3UAW |
| Outdoor Unit | Single/Multi Zone |
| Capacity Cooling (Btu/h) / KW | 17,200 (5,800-19,400) |
| Capacity Heating (Btu/h) / KW | 20,800 (5,800-24,200) |
| Moisture Removal - High (pints/H) | 4.6 |
| Dry Air Flow - High (CFM) | 540 |
| SEER - Cooling | -- |
| EER - Cooling | -- |
| HSPF - Heating | -- |
| Power Supply (V, Phase, Hz) | 230V / 208V, Single Phase, 60Hz |
| Power Input - Cooling (W) | 1.58k (430-1.82k) |
| Power Input - Heating (W) | 1.83k (380-2.18k) |
| Dimensions (indoor) (H x W x D) | 7-7/8" x 29-17/32" x 25-7/32" |
| Dimensions (outdoor) (H x W x D) | -- |
| Weight (indoor/outdoor) (Lbs) | 42/-- |
