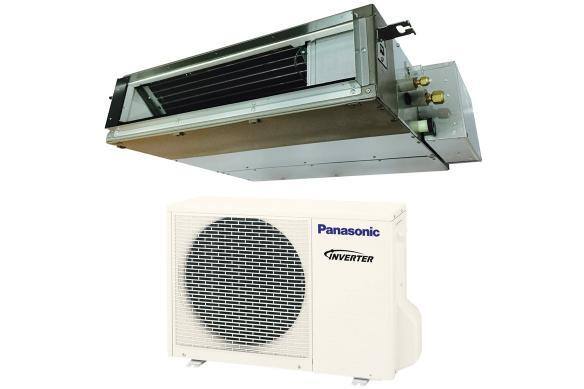

Slim Duct Low-Profile Cool & Heat
Panasonic slim-duct heating and cooling single-zone mini-split air conditioners operate down to -5 °F and are often selected for cold climate applications. Hidden installation in ceiling, attic, floor or closet. These low-profile indoor units connect to single or multi-zone outdoor units.
- CS-E12SD3UAW Indoor (use w/ single or multi zone outdoor); CU-E12SD3UA Outdoor (single zone)
- Cooling capacity: 11,500 (4,100 – 13,300) Btu/h; heating capacity: 13,800 (4,100 – 16,300) Btu/h
- ENERGY STAR / SEER2 20.00 / EER2 12.50 / HSPF2 (Region 4 / Region 5) 9.50 / 7.20
- -5 ºF cold climate heat operation
- Wireless controller included and wired controller option: CZ-RD52DU, Wi-Fi option also available
- Service Manual - HVAC - E9/E12/E18SD3UA
- Operating Manual / Manuel d'utilisation - E9/E12/E18SD3UA (English-Français)
- Installation Manual - HVAC - E9/E12/E18SD3UA
- Submittal Sheet - HVAC - Single Zone Ceiling System - E12SD3UA
- Heat Pump Solutions Catalog (R410 refrigerant)
- Residential Heat Pump Solutions Catalog - 2020
Product Specifications
| SKU | E12SD3UA |
|---|---|
| Indoor Unit | CS-E12SD3UAW |
| Outdoor Unit | CU-E12SDUA/Multizone |
| Capacity Cooling (Btu/h) / KW | 11,500 (4,100-13,300) |
| Capacity Heating (Btu/h) / KW | 13,800 (4,100-16,300) |
| Moisture Removal - High (pints/H) | 1.7 |
| Dry Air Flow - High (CFM) | 475 |
| SEER2 | 20.00 |
| EER2 | 12.50 |
| HSPF2 - Region 4 / Region 5 | 9.50 / 7.20 |
| Power Supply (V, Phase, Hz) | 208/230V, single phase, 60Hz |
| Power Input - Cooling (W) | 920 (250-1150) |
| Power Input - Heating (W) | 1.25k (200-1710) |
| Dimensions (indoor) (H x W x D) | 7-7/8" x 25-7/32" x 21-11/32" |
| Dimensions (outdoor) (H x W x D) | 29-17/32" x 42" x 30-23/32" |
| Weight (indoor/outdoor) (Lbs) | 42/82 |
