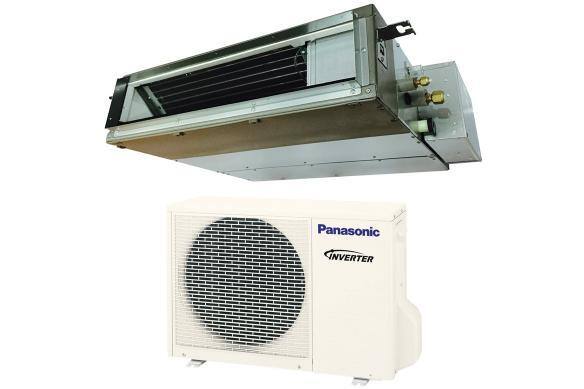

Slim Duct Low-Profile Cool & Heat E18SD3UA
Panasonic slim-duct heating and cooling single-zone mini-split air conditioners operate down to -5 °F and are often selected for cold climate applications. Hidden installation in ceiling, attic, floor or closet. These low-profile indoor units connect to single or multi-zone outdoor units.
- CS-E18SD3UAW Indoor (use w/ single or multi zone outdoor); CU-E18SD3UA Outdoor (single zone)
- Cooling Capacity: 17,200 (5,800 – 19,400) Btu/h; Heating Capacity: 20,800 (5,800 – 24,200) Btu/h
- SEER2 16.50 / EER2 10.85 / HSPF2 (Region 4 / Region 5) 7.90 / 6.30
- -5ºF Cold climate heat operation
- Wireless controller included, wired controller option: CZ-RD52DU and Wi-Fi option also available
- Submittal Sheet - HVAC - Single Zone Ceiling System - E18SD3UA
- Heat Pump Solutions Catalog (R410 refrigerant)
- Residential Heat Pump Solutions Catalog - 2020
- Service Manual - HVAC - E9/E12/E18SD3UA
- Installation Manual - HVAC - E9/E12/E18SD3UA
- Operating Manual / Manuel d'utilisation - E9/E12/E18SD3UA (English-Français)
Product Specifications
| SKU | E18SD3UA |
|---|---|
| Indoor Unit | CS-E18SD3UAW |
| Outdoor Unit | CU-E18SD3UA/ Multizone |
| Capacity Cooling (Btu/h) / KW | 17,200 (5,800-19,400) |
| Capacity Heating (Btu/h) / KW | 20,800 (5,800-24,200) |
| Moisture Removal - High (pints/H) | 4.6 |
| Dry Air Flow - High (CFM) | 540 |
| SEER2 | 16.50 |
| EER2 | 10.85 |
| HSPF2 - Region 4 / Region 5 | 7.90 / 6.30 |
| Power Supply (V, Phase, Hz) | 208/230V, single phase, 60Hz |
| Power Input - Cooling (W) | 1.58k (430-1820) |
| Power Input - Heating (W) | 1.83k (380-2180) |
| Dimensions (indoor) (H x W x D) | 7-7/8" x 25-7/32" x 31-5/16" |
| Dimensions (outdoor) (H x W x D) | 29-17/32" x 42" x 34-15/32" |
| Weight (indoor/outdoor) (Lbs) | 42/132 |
