Project Series - Floor Console
The Panasonic Project Series provides efficient heating and cooling with the flexibility to be used in Retrofit, Multi-family and light commercial applications. These units can be used for single or multi-zone zone configurations. When using a compatible multi-zone outdoor unit, system designers can mix and match with other Project Series indoor units to meet specific system requirements.

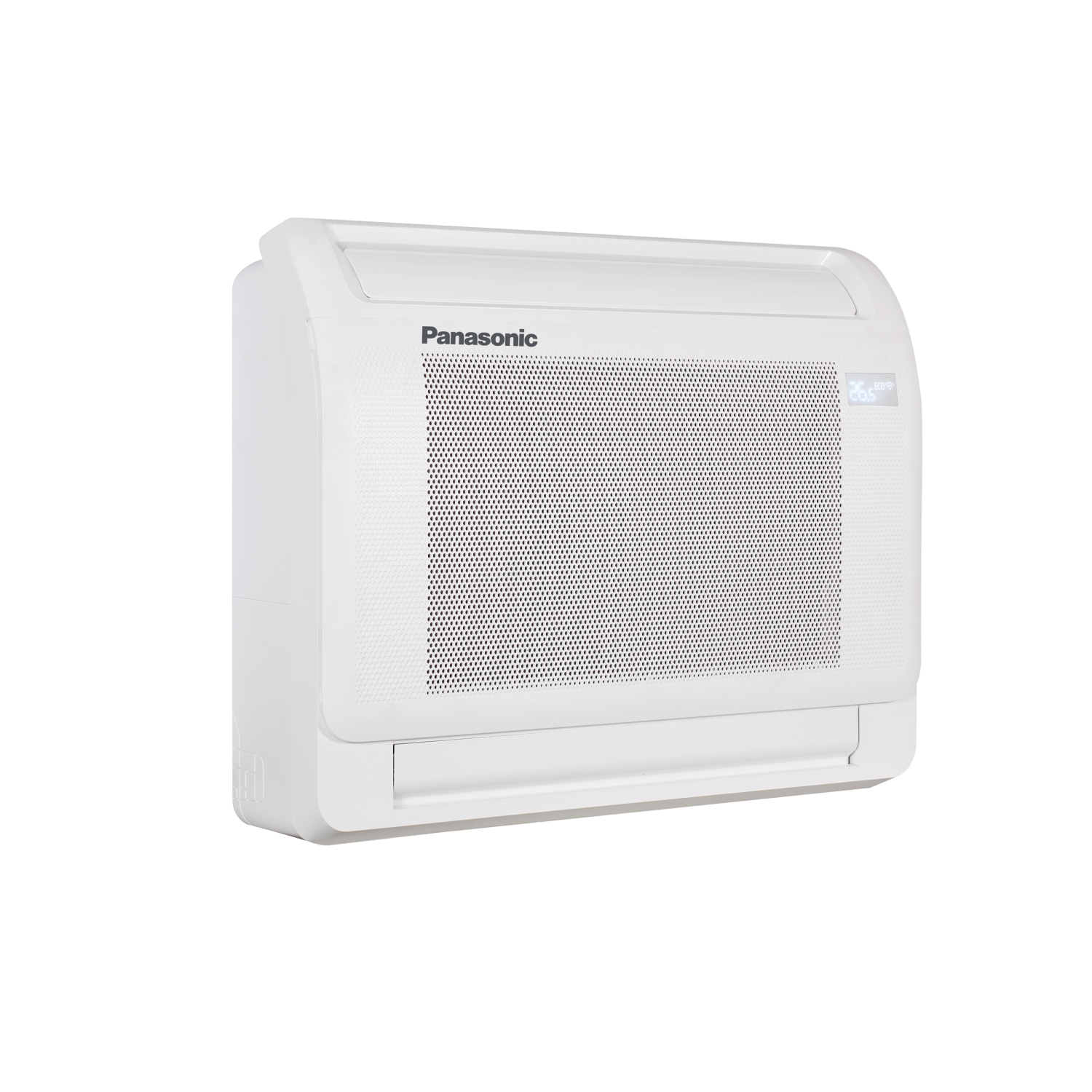

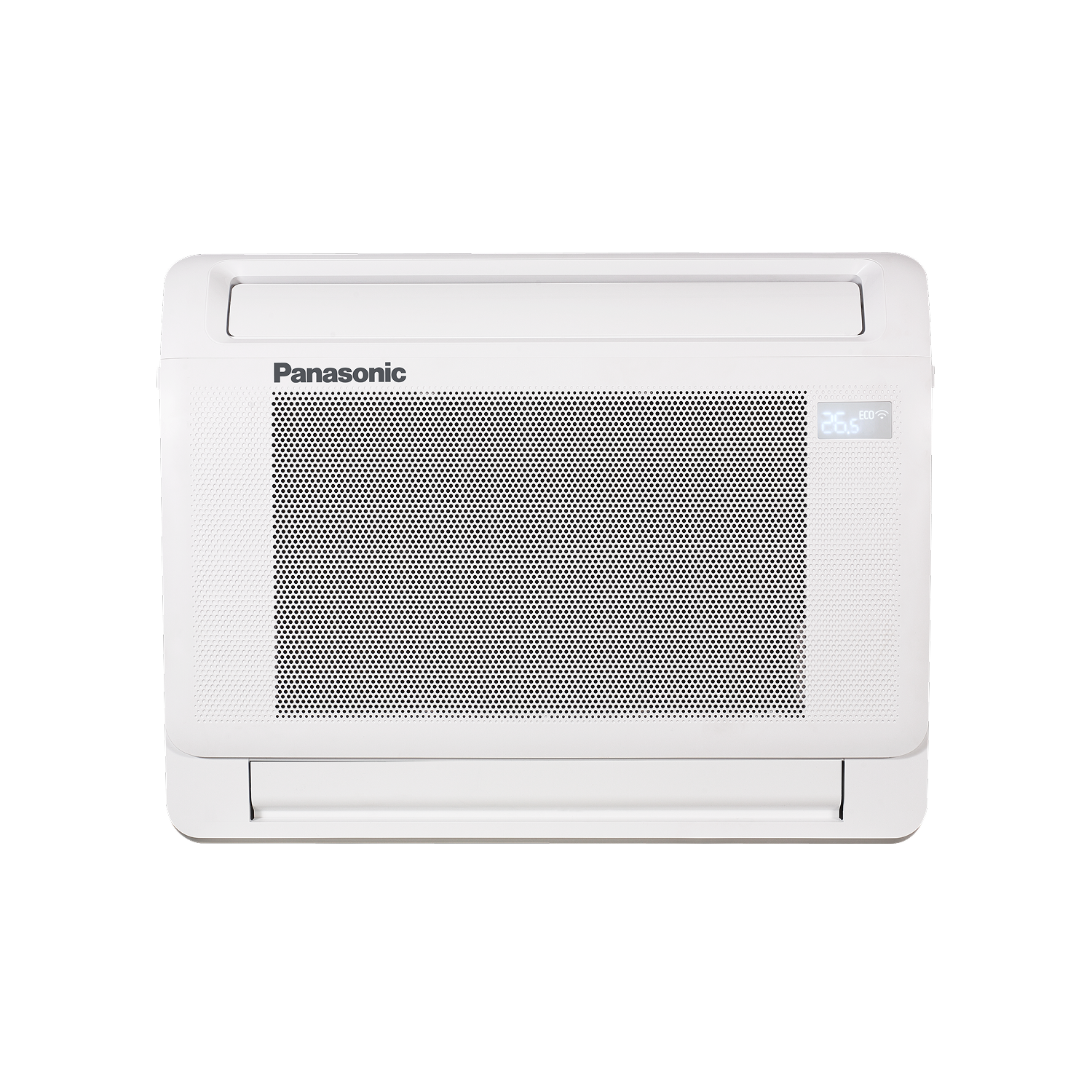

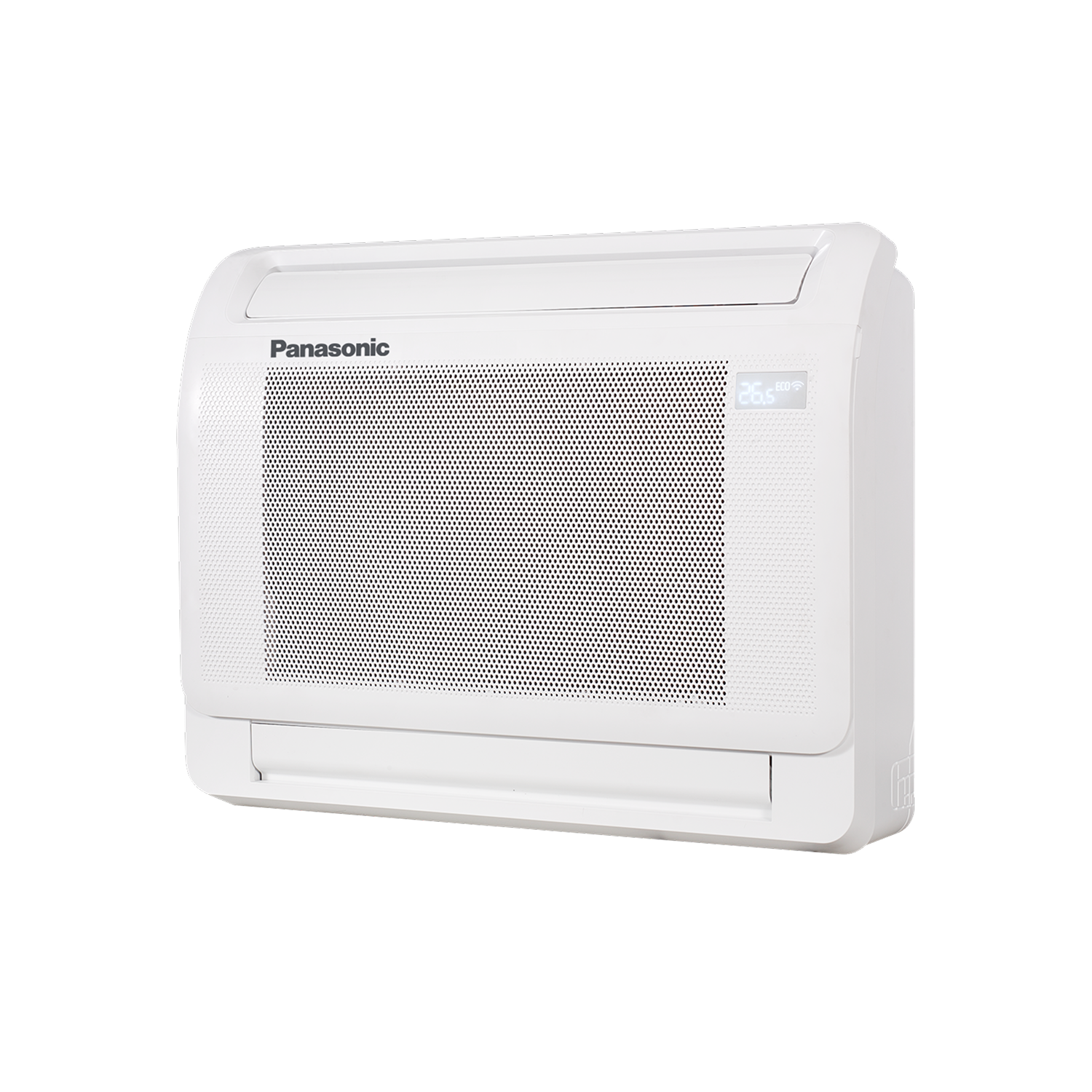

A practical solution for spaces with limited wall or ceiling availability and delivering strong heating performance at the floor level. This Floor Console indoor unit is ideal for retrofit projects, sunrooms or under window placement and basement applications where installation flexibility is critical.
- Available in 12K BTU Capacity
- 1%-100% Fan Speed settings plus Turbo
- Self-Cleaning Evaporator
- Room Freeze Protection (Activates @ 8 °C/46 °F)
- Wireless remote control included
- Inverter Heat Pump Condenser
- Base Pan Heater Included
- R454B Refrigerant for zero impact on the ozone layer
- -25 °C (-13 °F) Cold climate heating operation
- ENERGY STAR® Cold Climate Certified
- Sell Sheet - HVAC - Project Series
- Submittal Sheet - HVAC - Project Series - Floor Console 12K
- Installation Manual - HVAC - Project Series - Floor Console
- Owner's Manual - HVAC - Project Series - Floor Console
- Owners' Manual - HVAC - Project Series - Floor Console Remote Control
- BIM (Autodesk Revit Software Required) - HVAC - Floor Console - CS-YM12CFUW
- BIM (Autodesk Revit Software Required) - HVAC - Floor Console - CU-YM12CBUC
- Heat Pump Solutions Catalog - HVAC - Project Series
Product Specifications
| SKU | CS-YM12CFUW |
|---|---|
| Indoor Unit | Floor Console (12,000 BTU) |

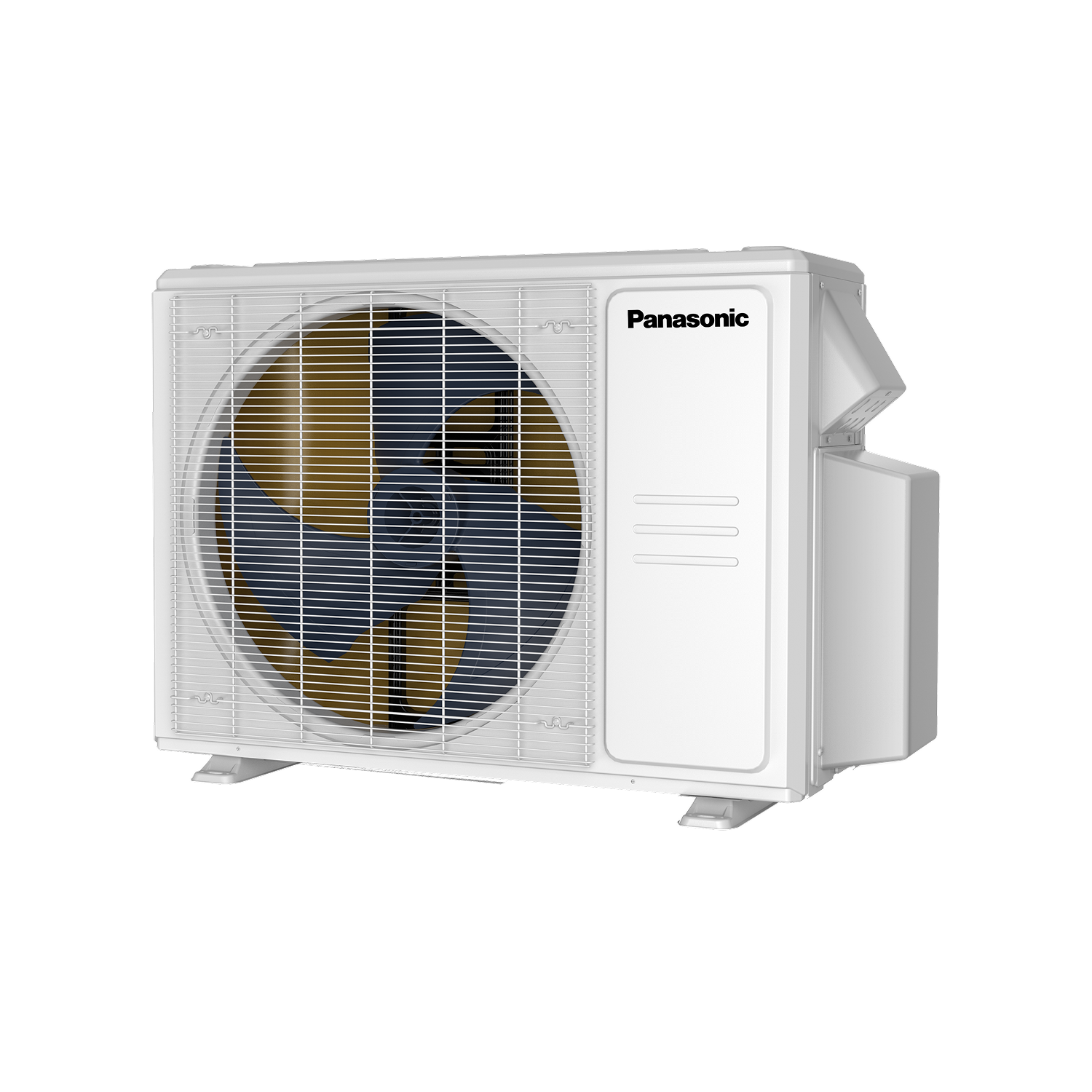

| Outdoor Unit | CU-YM12CBUC |
| Capacity Cooling (Btu/h) / KW | 12,000 (4,000 - 13,100) / 3.52 KW |
| Capacity Heating (Btu/h) / KW | 12,000 (5,100 - 12,900) / 3.52 KW |
| Moisture Removal - High (pints/H) / L/h | 2.71 / 1.28 |
| Indoor Air Flow (Turbo) | 441 CFM |
| SEER2 | 24.6 |
| EER2 | 12.7 |
| HSPF2 - Region 4 / Region 5 | 11.0 / 8.2 |
| Power Supply (V, Phase, Hz) | 208 / 230V, Single Phase, 60Hz |
| Power Input - Cooling (W) | 960 |
| Power Input - Heating (W) | 897 |
| Dimensions (Indoor) (H x W x D) | 24-7/16" x 31-1/4" x 7-7/8" (621 x 794 x 200 mm) |
| Dimensions (Outdoor) (H x W x D) | 21-7/8" x 30-1/8" x 11-7/8" (555 x 765 x 303 mm) |
| Weight (Indoor Unit / Outdoor Unit) | 32.9 lbs (14.9 kg) / 62.2 lbs (28.2 kg) |
