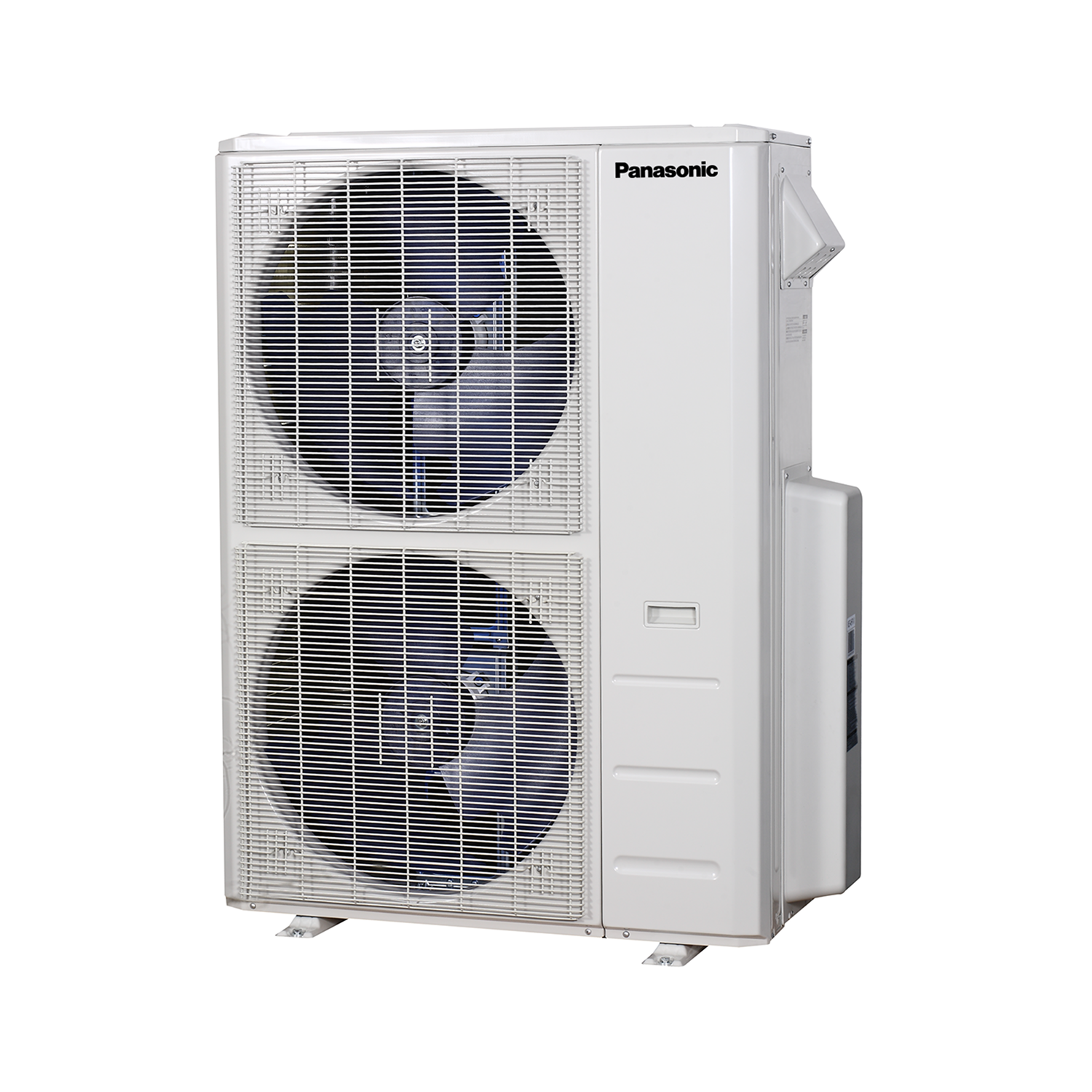

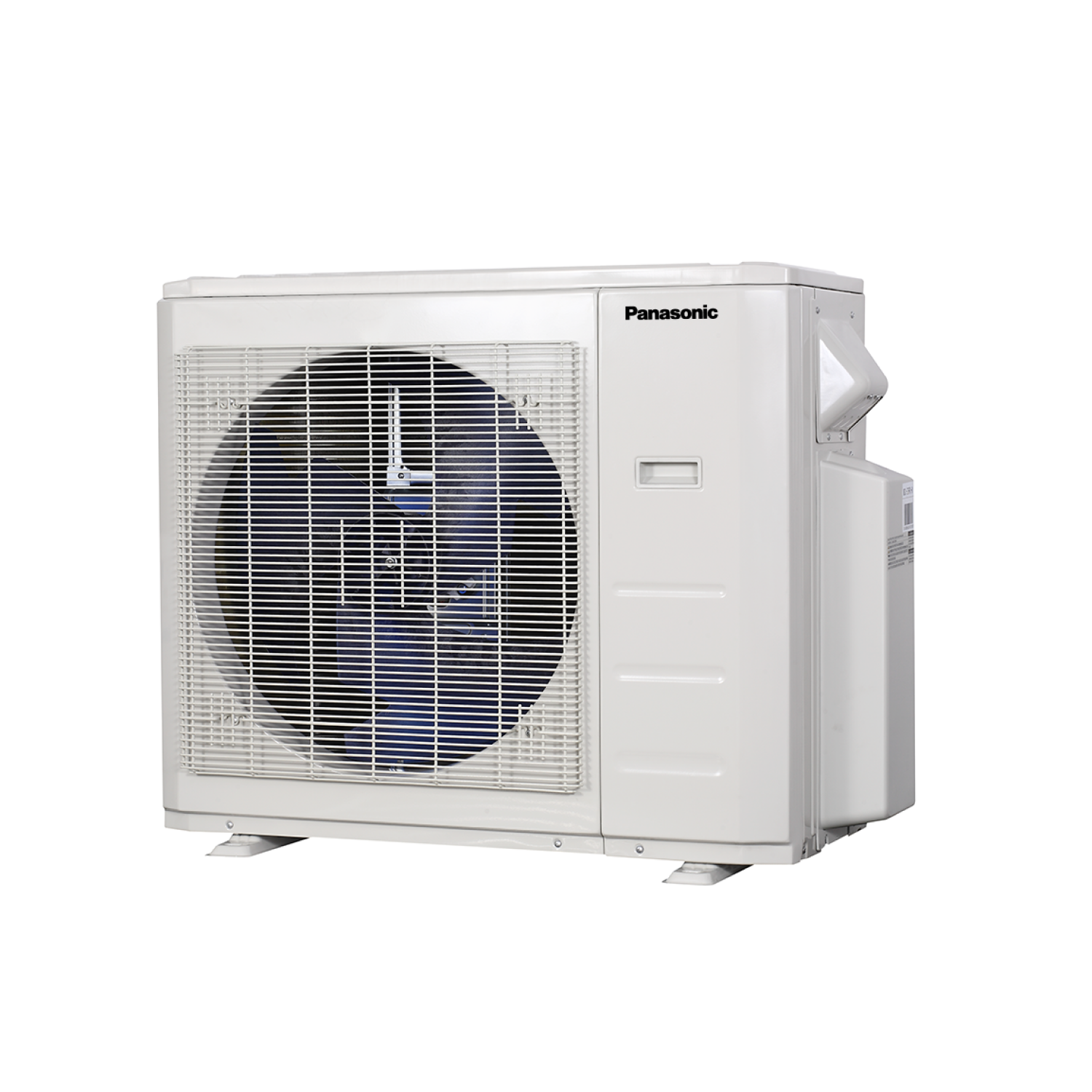

Project Series - Multi-Zone Outdoor Unit
The Panasonic Project Series provides efficient heating and cooling with the flexibility to be used in Retrofit, Multi-family and light commercial applications. These units can be used for single or multi-zone zone configurations. When using a compatible multi-zone outdoor unit, system designers can mix and match with other Project Series indoor units to meet specific system requirements.
- Available in 18K, 27K, 36K & 48K BTU Capacities
- Compatible with 1-6 Indoor Units (Depending on Model Capacity)
- Works with all Project Series Indoor Units including: High-Wall, Floor Console, 4-Way Cassette, Slim Duct
- Inverter Heat Pump Condenser
- Base Pan Heater Included
- Quiet Operation
- R454B Refrigerant for zero impact on the ozone layer
- -25 °C (-13 °F) Cold climate heating operation
- ENERGY STAR® Cold Climate Certified
- Sell Sheet - HVAC - Project Series
- Submittal Sheet - HVAC - Project Series - ODU - 3-Zone 18K
- Submittal Sheet - HVAC - Project Series - ODU - 4-Zone 27K
- Submittal Sheet - HVAC - Project Series - ODU - 5-Zone 36K
- Submittal Sheet - HVAC - Project Series - ODU - 6-Zone 48K
- Installation Manual - HVAC - Project Series - Multi-Zone
Product Specifications
| SKU | CU-3YM18CBUC | CU-4YM27CBUC | CU-5YM36CBUC | CU-6YM48CBUC |
|---|---|---|---|---|
| Compatible Indoor Units | CKUW / CB4UW / CFUW / CD2UW | CKUW / CB4UW / CFUW / CD2UW / CD1UW | CKUW / CB4UW / CL4UW / CFUW / CD2UW / CD1UW | CKUW / CB4UW / CL4UW / CFUW / CD2UW / CD1UW |
| Outdoor Unit | 3-Zone (18,000 BTU) | 4-Zone (27,000 BTU) | 5-Zone (36,000 BTU) | 6-Zone (48,000 BTU) |
| Capacity Cooling (Btu/h) / KW | 18,000 (5,400 - 21,600) / 5.28 KW | 26,000 (7,200 - 32,000) / 7.62 KW | 35,000 (9,000 - 40,000) / 10.26 KW | 45,000 (12,000 - 49,000) / 13.19 KW |
| Capacity Heating (Btu/h) / KW | 19,000 (5,700 - 21,600) / 5.57 KW | 27,000 (8,400 - 29,200) / 7.91 KW | 37,000 (10,000 - 40,000) / 10.84 KW | 48,000 (13,000 - 55,000) / 14.07 KW |
| Outdoor Air Flow | 1766 CFM | 2131 CFM | 2148 CFM | 4503 CFM |
| SEER2 | 23 | 23 | 23.1 | 21.3 |
| EER2 | 12.5 | 12.2 | 12 | 11.7 |
| HSPF2 - Region 4 / Region 5 | 10 / 7.7 | 9.5 / 7.1 | 10 / 7.5 | 10 / 7.7 |
| Power Supply (V, Phase, Hz) | 208 / 230V, Single Phase, 60Hz | 208 / 230V, Single Phase, 60Hz | 208 / 230V, Single Phase, 60Hz | 208 / 230V, Single Phase, 60Hz |
| Power Input - Cooling (W) | 1440 | 2130 | 2915 | 3850 |
| Power Input - Heating (W) | 1465 | 2198 | 3098 | 3908 |
| Dimensions (Outdoor) (H x W x D) | 26-1/2" x 35-1/16" x 13-7/16" (673 x 890 x 342 mm) | 31-7/8" x 37-1/4" x 16-1/8" (810 x 946 x 410 mm) | 31-7/8" x 37-1/4" x 16-1/8" (810 x 946 x 410 mm) | 52-1/2" x 37-1/2" x 16-5/16" (1333 x 952 x 415 mm) |
| Weight (Outdoor unit) | 101 lbs (46 kg) | 139 lbs (63 kg) | 169 lbs (77 kg) | 222 lbs (101 kg) |
