WhisperFresh® Select Fresh Air Supply Fan, 50-150 CFM
WhisperFresh® Select is the ultimate supply air fan. Built-in Pick-A-Flow® airflow selector switch allows you to select your required airflow (50-150 CFM). WhisperFresh Select can be used to comply with the latest codes and standards including ASHRAE 62.2, LEED and CA Title 24.
- Customizable fresh air supply fan with Pick-A-Flow® technology – one fan, you choose the CFM (9 settings)
- Intelligent ECM motor with Smart Flow® technology provides optimum CFM output for precision whole-house supply ventilation

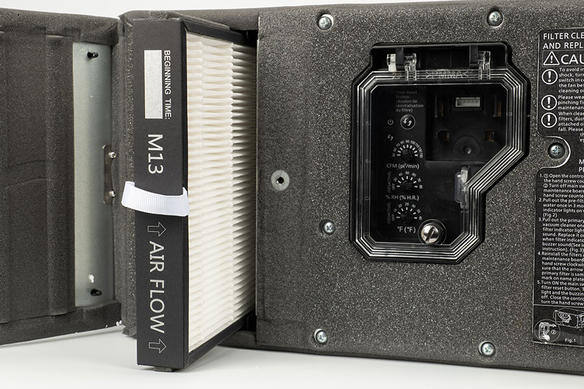

- Operates as a stand-alone filtered supply fresh air solution to meet ASHRAE 62.2 requirements for make-up/supply air
- Capable of communicating with Panasonic’s acclaimed WhisperGreen® Select™ to create a balanced ventilation solution

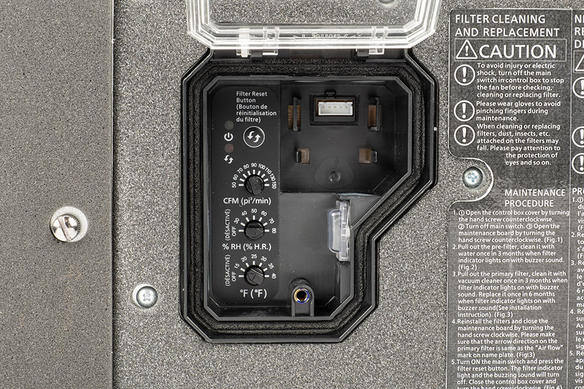

- Incorporates adjustable high humidity and low temperature dials for easy adjustments in any climate zone
- Sell Sheet - Ventilation - WhisperFresh® Select - FV-15NLFS1H
- Installation Instructions / Manuel d'installation - WhisperFresh® Select™ - FV-15NLFS1H (English / Français)
- Service Manual - Ventilation - WhisperFresh® Select - FV-15NLFS1H
- Submittal Sheet - Ventilation - WhisperFresh® Select - FV-15NLFS1H
Product Specifications
| SKU | FV-15NLFS1H |
|---|---|
| Product family name | WhisperFresh |
| Air volume exhaust (CFM) | 50-150 CFM |
| Energy efficiency (CFM/Watt) | 7.4 CFM/Watt @50 CFM│7.58 CFM/Watt @60 CFM │7.64 CFM/Watt @70 CFM│7.83 CFM/Watt @80 CFM │7.61 CFM/Watt @90 CFM│7.45 CFM/Watt @100 CFM│7.05 CFM/Watt @110 CFM│6.30 CFM/Watt @130 CFM│5.59 CFM/Watt @150 CFM |
| Motor type (AC/DC) | DC |
| Duct diameter | 6" (152 mm) |
| Lighted | No |
| Motion sensor | No |
| Moisture sensor/condensation | No |
| Multi-speed with time delay | No |
| Night light | No |
| Installation | Ceiling |
| Radiation damper available | No |
| Housing dimensions (L x W x H) | 12" X 15 1/2" X 27" (304.8 x 393.7 x 685.8 mm) |
| Grille size - Square inches (mm) | N/A |
| ENERGY STAR®, ASHRAE 62.2, LEED | Yes |
| cUL listed for tub/shower enclosure | N/A |
