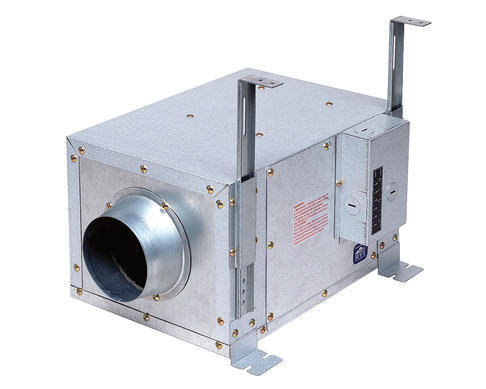

WhisperLine™ - Remote Mount, In-Line Spot Ventilation Solution, 340 CFM - FV-30NLF1_1
discontinued

WhisperLine™ - Remote Mount, In-Line Spot Ventilation Solution, 340 CFM

SKU:

  • FV-30NLF1
Product Specifications
WhisperLine 340 CFM remote mount in-line fan for single or multiple inlets.
Contact Sales

  • Insulated housing prevents condensation and noise
  • Tapered 4” duct adapter provides easy connection
  • Features five positions for installation
  • Joist or truss attachment brackets and suspension brackets included
  • Can be used to comply with the latest codes and standards

Product Specifications

SKU FV-30NLF1
Product family name WhisperLine™
Air volume exhaust (CFM) 340 CFM @ 0.2" SP | 322 CFM @ 0.3" SP | 302 CFM @ 0.4" SP
Noise (sones) --
Energy efficiency (CFM/Watt) 3.2 CFM/W
Motor type (AC/DC) AC
Duct diameter 6" (152 mm)
Lighted No
Motion sensor No
Moisture sensor/condensation No
Multi-speed with time delay No
Night light No
Installation Ceiling
Radiation damper available No
Housing dimensions (L x W x H) --
Grille size - Square inches (mm) --
ENERGY STAR®, ASHRAE 62.2, LEED Yes
cUL listed for tub/shower enclosure No

WhisperLine remote mount, in-line ventilation solution

Panasonic WhisperLine® fans are designed for multiple-task ventilation. This means that you can ventilate multiple areas or multiple rooms with just one fan. WhisperLine fans are a great way to remotely mount a fan and run single or multiple inlets for over the shower, tub, toilet and/or vanity in a single bathroom. WhisperLine features a blower wheel that's designed to draw air in both sides allowing more area for air to enter the wheel. This versatile product can be installed in five different positions. Joist or truss as well as suspension brackets are included.

Multitasking ventilation fan

This remote-mounted fan can exhaust stale, humid, or contaminated air from multiple points of a room or multiple rooms. For example, you can place inlets over the shower, tub, toilet and vanity in a single bathroom, or in a bathroom, laundry, and craft room to exhaust with a single remote-mounted WhisperLine fan.



Fine-tune the airflow for each inlet

The low profile grilles are adjustable so you can balance the airflow between the nearest and furthest inlets to create even air circulation.

Installation flexibility

This in-line fan can be installed in five different positions between joists and trusses. Additional suspension brackets make your installation as easy as possible.

ENERGY STAR® Certified for energy savings

Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. ENERGY STAR vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
