WhisperRecessed LED™ - Design Solution for Fan Light Combinations, 80 CFM - FV-08VRE1_0
WhisperRecessed LED™ - Design Solution for Fan Light Combinations, 80 CFM - FV-08VRE1_1

WhisperRecessed™ - Design Solution for Fan/Light Combinations, 80 CFM

SKU:

  • FV-08VRL2
Product Specifications

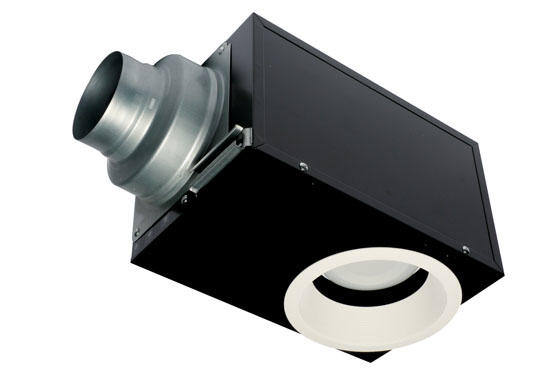

WhisperRecessed incorporates a powerful, yet quiet 80 CFM fan behind an elegant recessed light.
Contact Sales

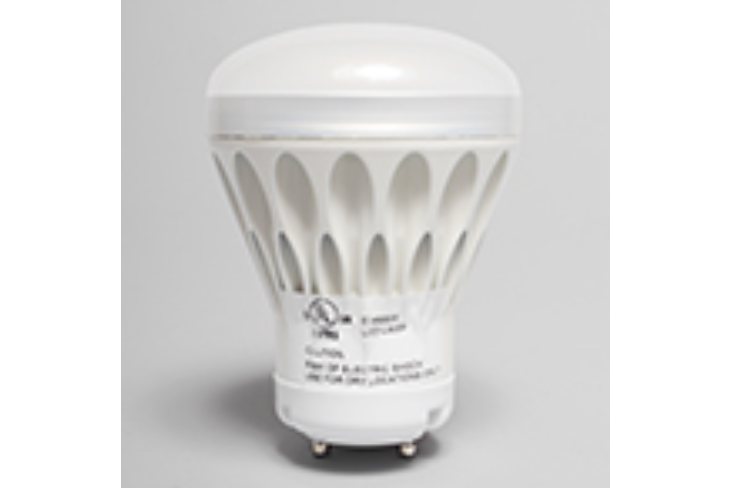

  • Includes an 18W GU24 base CFL lamp, beautiful lighting with 6-1/2” aperture and advanced luminaire design
  • Adjustable lamp positioning and deeper regression reduces glare
  • Can be used to comply with the latest codes and standards

Product Specifications

SKU FV-08VRL2
Product family name WhisperRecessed™
Air volume exhaust (CFM) 80 CFM @ 0.1" SP, 66 CFM @ 0.25" SP
Noise (sones) 1.0 @ 80 CFM, 0.1" SP | 0.8 @ 80 CFM, 0.25" SP
Energy efficiency (CFM/Watt) 4.0 CFM/W @80 CFM, 0.1" SP
Motor type (AC/DC) AC
Duct diameter 4" (102 mm) / 6" (152 mm)
Lighted Yes (CFL)
Motion sensor No
Moisture sensor/condensation No
Multi-speed with time delay No
Night light No
Installation ceiling
Radiation damper available No
Housing dimensions (L x W x H) 12-3/4" x 8-1/4" x 7-1/2" (324 x 210 x 191 mm)
Grille size - Square inches (mm) 7-1/4" (184 mm)
ENERGY STAR®, ASHRAE 62.2, LEED Yes
cUL listed for tub/shower enclosure Yes (when used with a GFCI protected circuit)

WhisperRecessed LED 80 CFM, architectural designed, ceiling mount fan / light

Panasonic continues to light the way in innovative ventilation technology, and now we're putting a spotlight on design with an architectural grade recessed light fixture that provides powerful, yet quiet ventilation. This 80 CFM exhaust fan disappears behind the ceiling and doesn't skimp on function: adjustable recessed light for less glare; ideal for bathroom, living room and laundry room. Clean air and clean design add up to a cleaner environment with energy efficient WhisperRecessed™ LED.

Long life means reduced costs

When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fan/light combinations use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.

Installation flexibility

WhisperRecessed LED incorporates an integrated dual 4 in. or 6 in. duct adapter to give you flexibility in duct layout and design. For short runs, you can go with a smaller duct size, but long runs are OK, too - just move up to 6 in. duct. The double hanger-bar system (expandable up to 24 in.) is ideal for positioning the fan exactly where you want it. Panasonic fan/light combinations are also UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up.

ENERGY STAR® Certified for energy savings

Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. ENERGY STAR vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
