Clean Air and Smart Efficiency with Intelli-Balance®

Ventilation for Every Climate & Build

Introducing Intelli-Balance® Elite & Elite Plus ERVs

Panasonic’s Intelli-Balance® Elite and Elite Plus Energy Recovery Ventilators are purpose-built for professionals who design and build high-performance homes. Whether you're working on multi-family or energy-efficient new builds, these ERVs deliver reliable, balanced ventilation that meets today’s toughest standards.
iaq25206web-intelli-balance-mirrored-installation-1200x675-r3

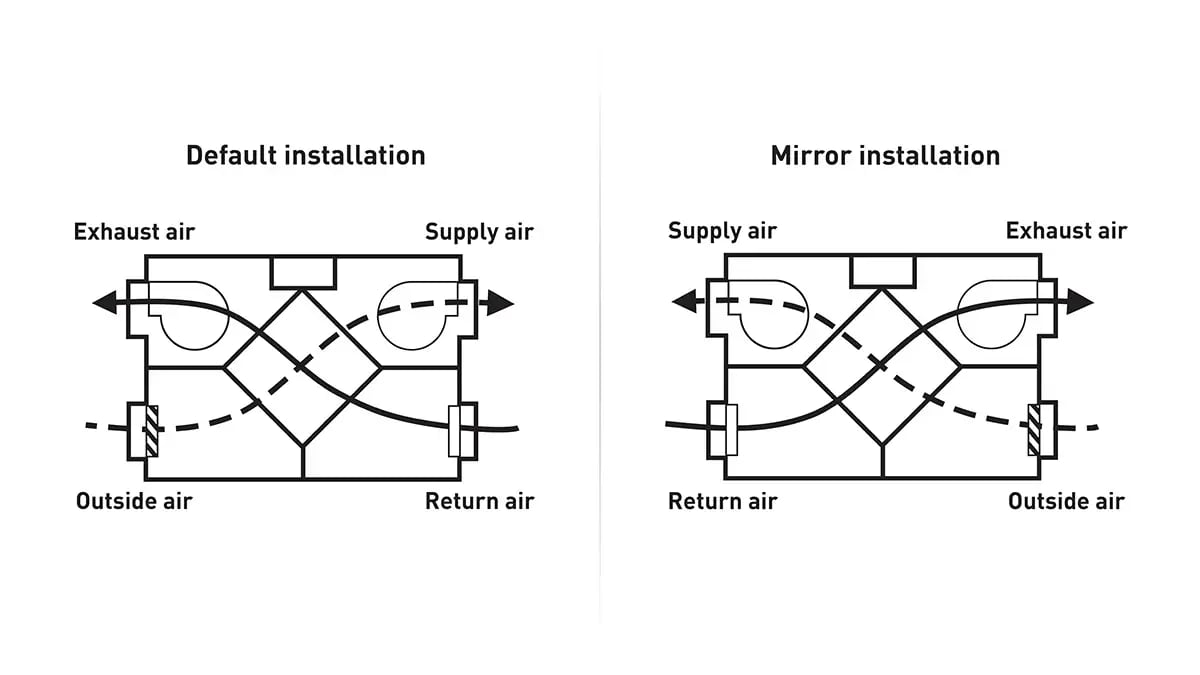

Flexible Installation with Mirrored Airflow Configuration

Designed to adapt to your build, Intelli-Balance® ERVs offer mirrored installation, allowing dampers to be switched from left to right or vice versa. This feature simplifies planning and placement, especially in tight or symmetrical layouts, and ensures optimal airflow regardless of orientation.

Top Tier Energy Recovery Performance

With up to 90% Sensible Recovery Efficiency (SRE) and Adjusted Total Recovery Efficiency as high as 86%, Intelli-Balance® ERVs ensure maximum heat and moisture exchange between indoor and outdoor air. This means better comfort, lower energy costs, and improved indoor air quality—all while meeting ASHRAE 62.2 requirement.
Model Number Sensible Recovery Efficiency (SRE) Total Recovery Efficiency (TRE)
Intelli-Balance Elite Plus 150 (FV-15ESC1) Up to 90% Up to 84%
Intelli-Balance Elite Plus 120 (FV-12ESC1) Up to 89% Up to 83%
Intelli-Balance Elite 140 (FV-14ES1) Up to 89% Up to 83%
Intelli-Balance Elite 110 (FV-11ES1) Up to 88% Up to 82%

Features Designed for Multifamily Excellence

  • Choose from four models with CFM ratings of 110, 120, 140, and 150 cubic feet per minute (CFM) to suit different project sizes and needs.

  • Intelli-Balance Elite and Elite Plus ERVs can be used with the attached cord or converted to a hardwired application.

  • Designed for multifamily and new home construction built to meet energy efficiency standards.

  • Two (2) powerful ECM motors with Smart Flow® technology ensure optimum airflow by overcoming static pressure to effectively remove contaminated air and replace it with fresh air
iaq25206web-cold-weather-1200x675-r5

Built for Cold and Severe Climates

Elite Plus models deliver dependable performance in temperatures as low as -30 °C (-22 °F) by entering a frost prevention cycle with advanced defrost modes (recirculation or exhaust-only) for added flexibility. Built to withstand extreme conditions, these units are the ideal solution for projects in any climate zone. 
WhisperControl-Low-Voltage-Timer-Front-4548x4548

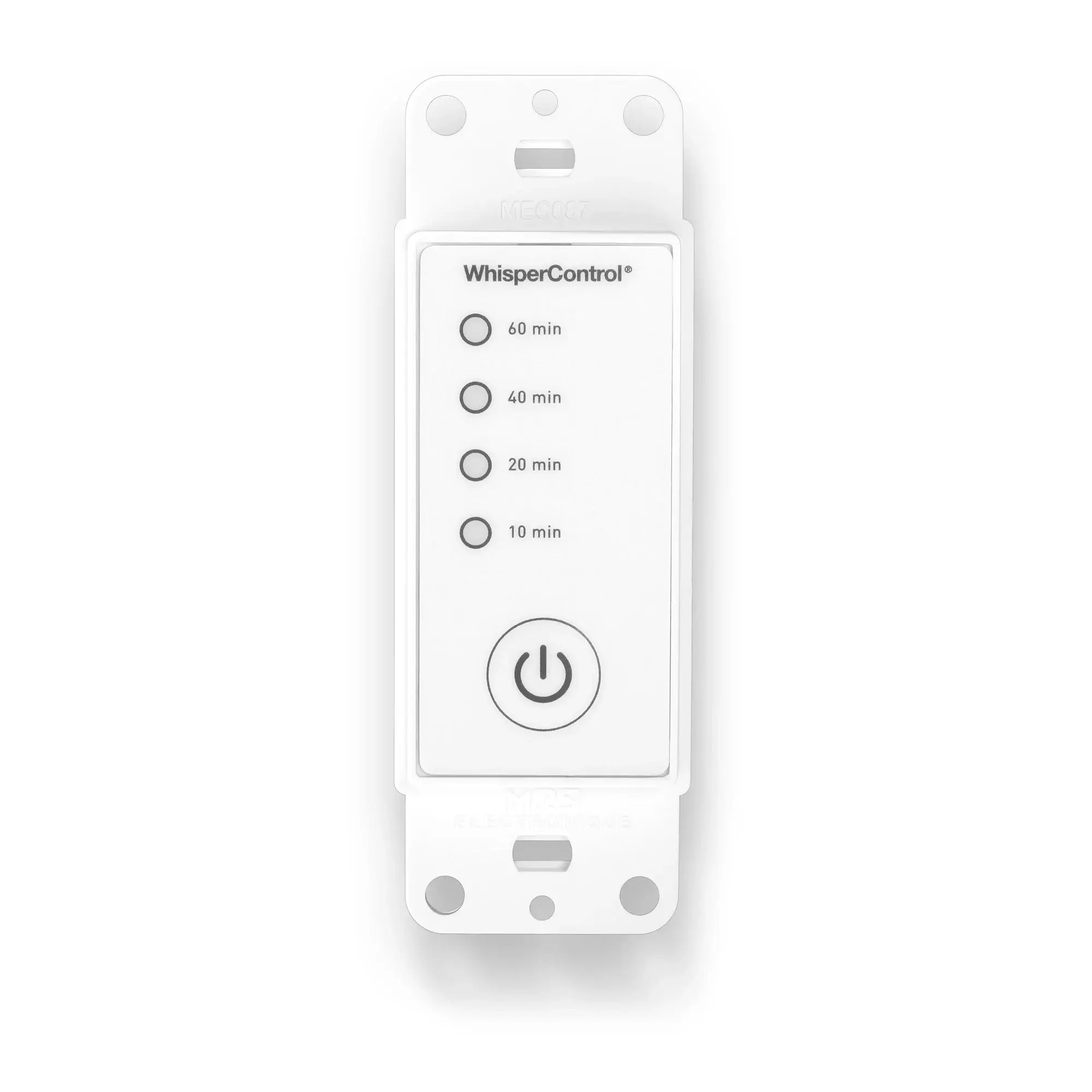

Low Voltage Timer

The optional WhisperControl™ Low Voltage Timer provides easy, push-button operation so the homeowner can boost the ventilation of the intelli-Balance® ERV.  Boost supply and exhaust air and maintain at the maximum CFM for high-performance air exchange.
BalancedHome-LP-wall-control-1120x630

Intuitive Touchscreen Control

The optional LED touchscreen enables total homeowner control with the touch of a finger. Simple user access to multiple settings such as BOOST mode and CFM settings, plus real time monitoring of temperature, humidity data and more.
iaq25206web-intelli-balance-core-1200x675

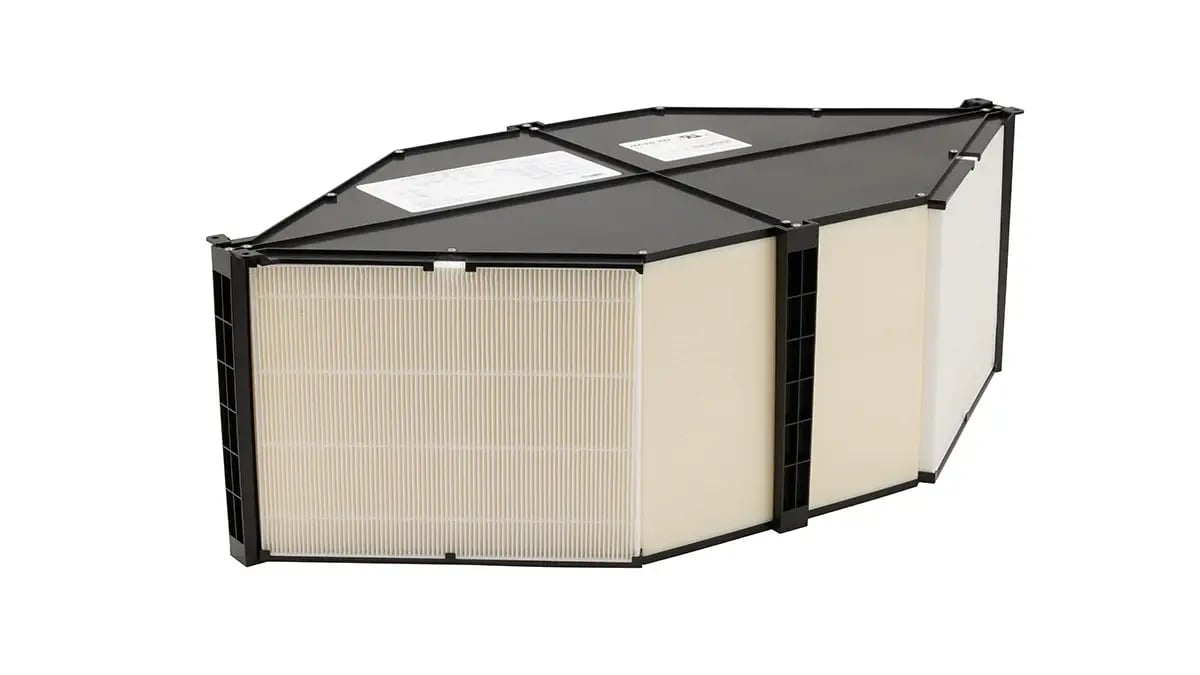

Core Design that Works with the Seasons

The advanced core includes an anti-mold treatment to help prevent buildup and maintain air quality. It also enables smarter seasonal performance—expelling excess humidity in the summer and retaining moisture in winter for year-round comfort and efficiency.

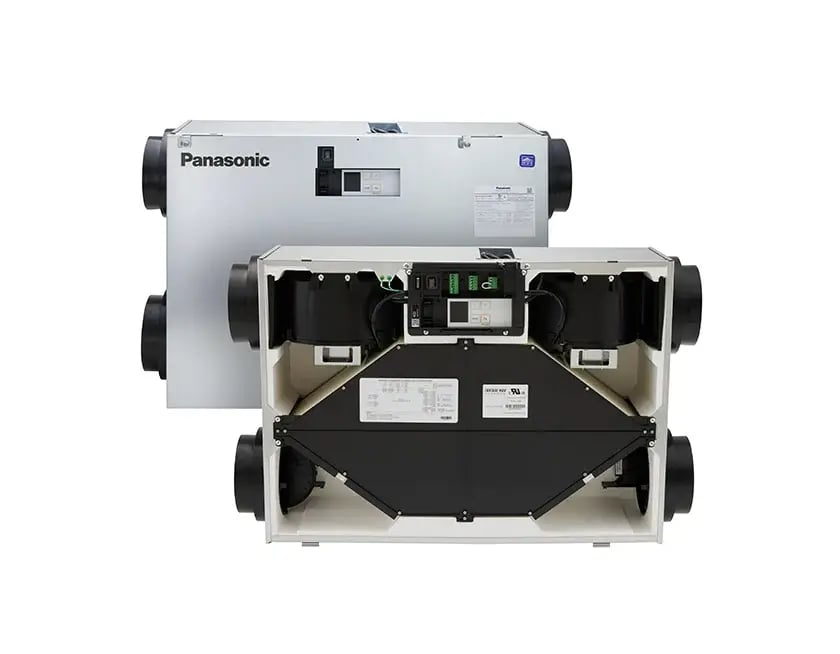

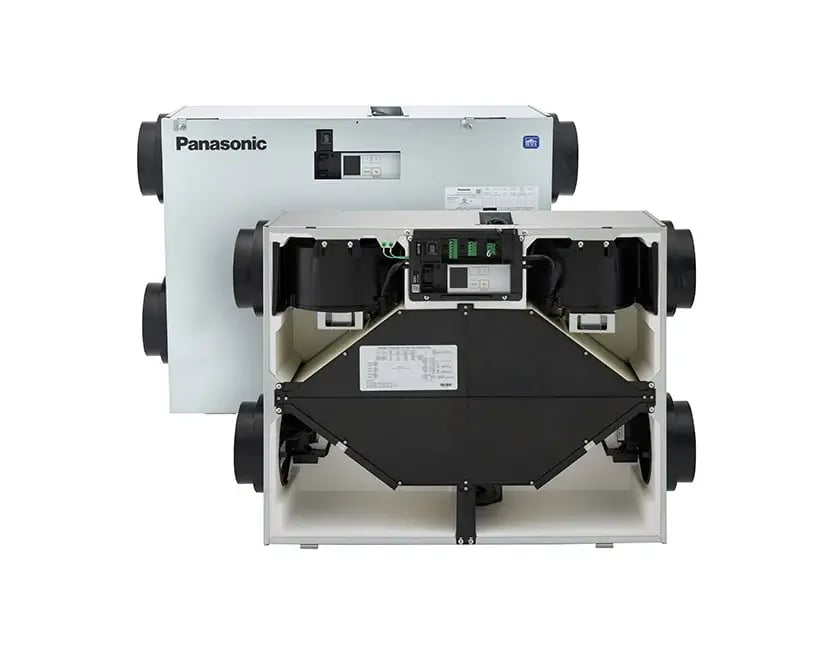

Intelli-Balance® Elite & Elite Plus Energy Recovery Ventilator Products
