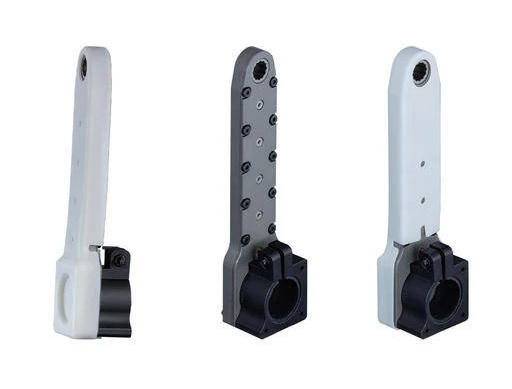

3 tool attachment with output and input sides

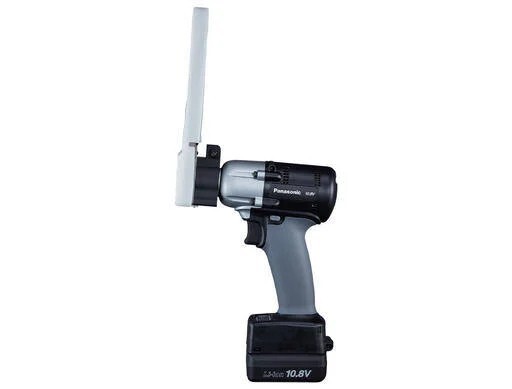

Mechanical pulse handgun tool with attachment
Side and vertical view of tool attachment with protector

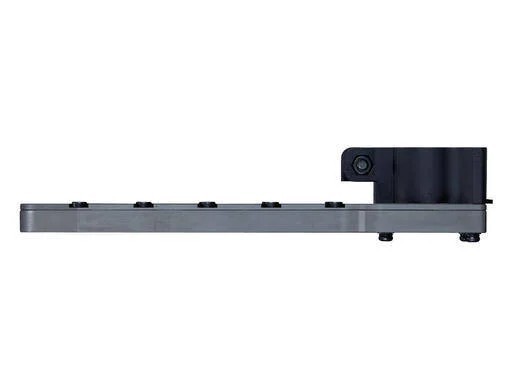

Side and horizontal view of tool attachment without protector

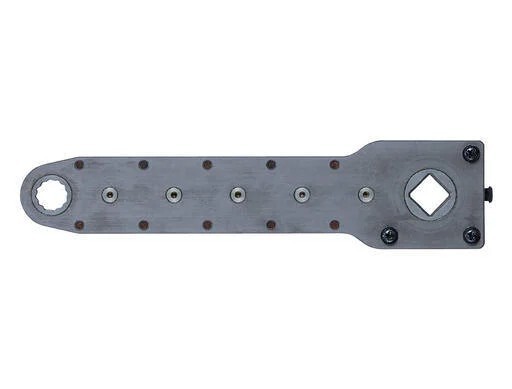

Face and horizontal view of tool accessory without protector

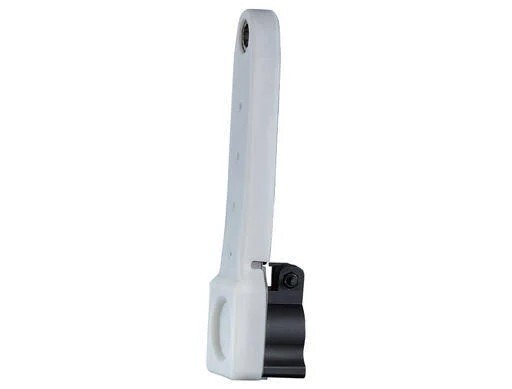

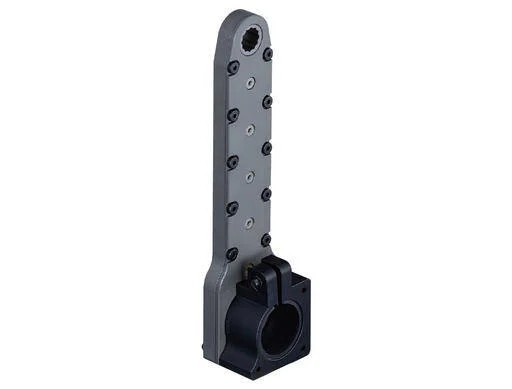

Vertical and angled view of tool attachment without protector
new

AccuPulse® Gear Attachment

SKU:

  • EYFA50B
  • EYFA51B
  • EYFA52B
Product Specifications
Introducing an attachment for narrow applications.
Contact Sales Compatible Products

  • Improve door hinge applications, tightening, and loosening bolts in hard-to-reach narrow applications
  • 3 different models available to best suit your application needs
  • Can be adjusted based on posture and position

Product Specifications

SKU EYFA50B EYFA51B EYFA52B
Performance (Bolt dia.) M8 (Normal to tensile bolt) M8 (Normal to tensile bolt) M8 (Normal bolt)
Output side dimension Diameter 12mm (M8 bolt) Diameter 12mm (M8 bolt) Diameter 12mm (M8 bolt)
Input side dimension 3/8" 1/2" 3/8"
Max. torque 19 Nm (3 sec) 26 Nm (2 sec) 15 Nm (3 sec)
Work capacity / Fastening speed (with EYFB30 Battery) 170 pcs./pack - 3 sec/1pcs. 150 pcs./pack - 2 sec/1pcs. 230 pcs./pack - 3 sec/1pcs.
Work capacity / Fastening speed (with EYFB32 Battery) 110 pcs./pack - 3 sec/1pcs. 100 pcs./pack - 2 sec/1pcs. 145 pcs./pack - 3 sec/1pcs.
Weight 1.57 lbs. 1.54 lbs. 1.57 lbs.

Compatible Products

Gear Attachment Professional Tool
EYFA50 EYFLA8
EYFA51 EYFLA9
EYFA52 EYFLF2
