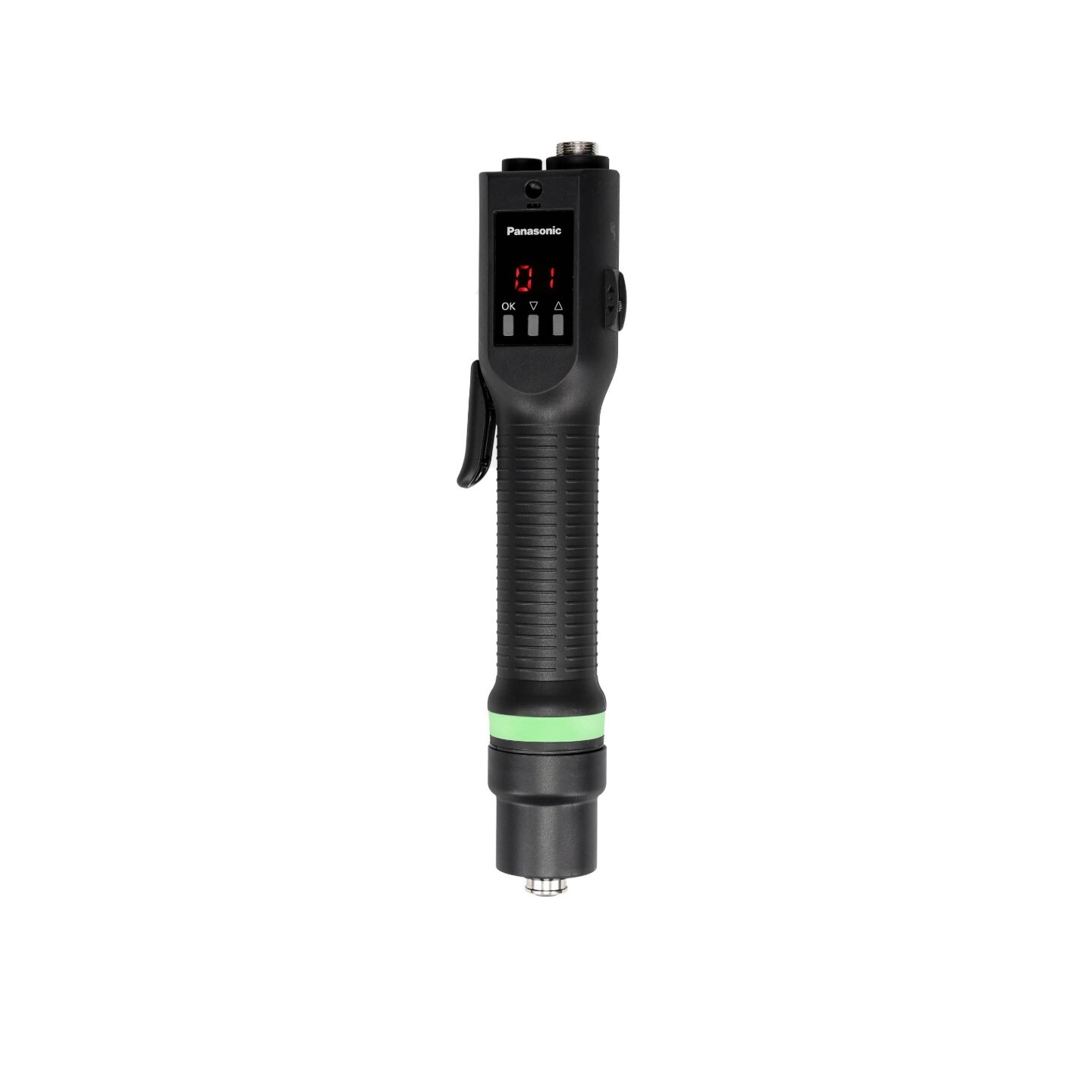

Slight angle view of black corded screwdriver with green colour light on tool and batch count display

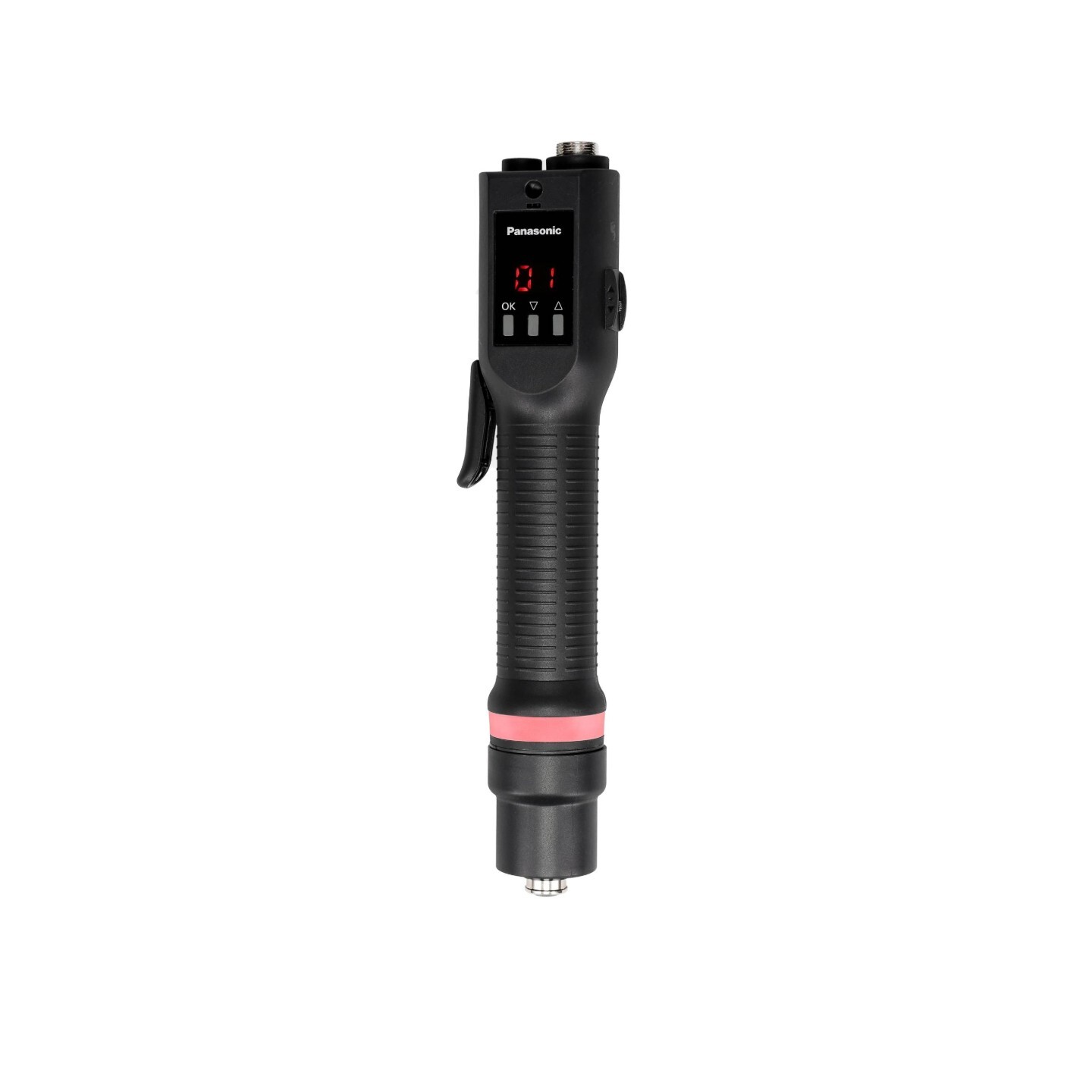

Slight angle view of black corded screwdriver with red colour light on tool and batch count display

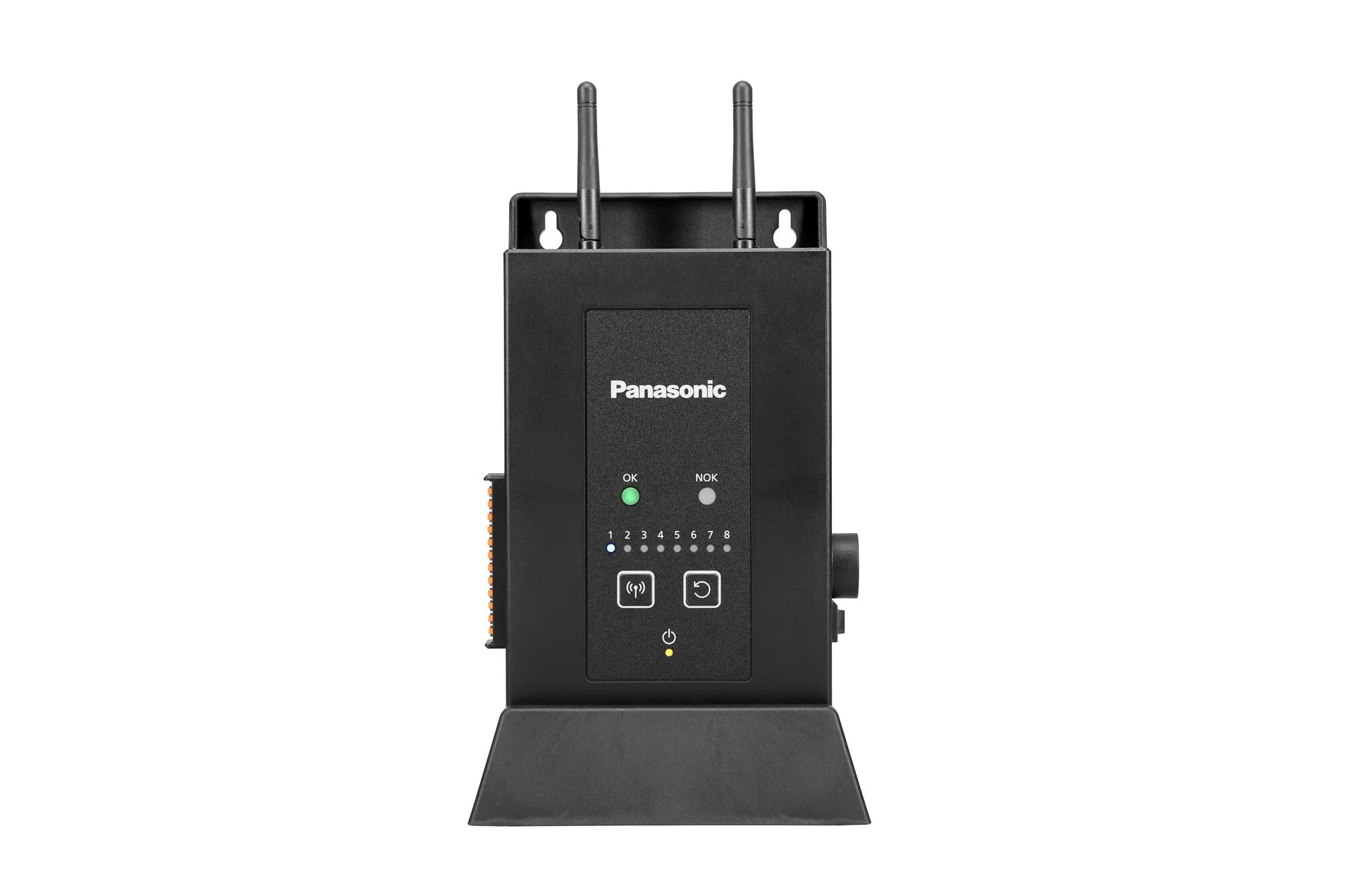

Front view of black tool controller with 2 small antennas

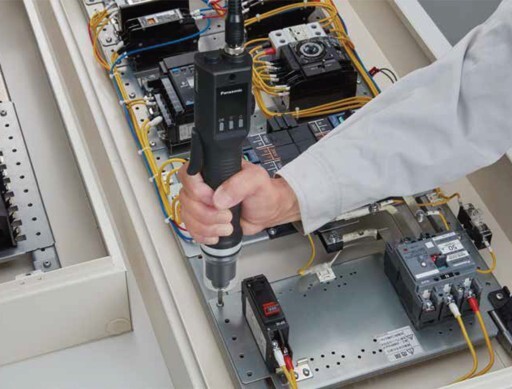

Man’s hand with a corded screwdriver working on a circuit board
new

Type C – Corded Electric Screwdriver System

SKU:

  • EYADA112XC
  • EYADA212XC
  • EYADA218XC
  • EYADA407XC

Improve accuracy, efficiency and quality control on your assembly line with our Corded Electric Screwdriver System. Available in four models, these lightweight handheld drivers deliver accurate driving in a .1Nm – 4.4Nm torque range and feature speeds of 160 - 1800 RPMs. Ideal for low-torque applications such as electronics and plastic products manufacturing. Control up to eight tools simultaneously with wireless communication to controller, and trace work history and data points such as OK/NOK, batch count, torque values and more. A true poka-yoke-inspired system that will reduce errors and improve accuracy throughout your assembly processes.

Contact Sales

  • 0.1 - 4.4Nm torque range at 160 - 1,800 rpm
  • Wireless controller enables secure communication & control with up to 8 tools simultaneously
  • Data recording and traceability for greater visibility and control
  • Controller software collects and analyzes data for up to 80 tools
  • Ergonomic lever and push-to-start functionality for better efficiency and stress reduction
  • Power adaptor EYSZP001 (sold separately)

Type C – Specifications

Models EYADA112XC EYADA212XC EYADA218XC EYADA407XC
Torque Setting Range 0.1-1.0Nm 0.3-2.5Nm 0.3-2.0Nm 1.5-4.4Nm
Rated rotation speed 300-1,200 rpm 300-1,200rpm 450-1,800rpm 160-650rpm
Power Supply Power adaptor EYSZP001 (sold separately) / Input : AC100-240V / Output : DC30V/3A Power adaptor EYSZP001 (sold separately) / Input : AC100-240V / Output : DC30V/3A Power adaptor EYSZP001 (sold separately) / Input : AC100-240V / Output : DC30V/3A Power adaptor EYSZP001 (sold separately) / Input : AC100-240V / Output : DC30V/3A
Torque Accuracy Repeated torque accuracy +10% (internal measurement conditions) Repeated torque accuracy +10% (internal measurement conditions) Repeated torque accuracy +10% (internal measurement conditions) Repeated torque accuracy +10% (internal measurement conditions)
Motor Brushless motor (coreless type, DC30V) Brushless motor (coreless type, DC30V) Brushless motor (coreless type, DC30V) Brushless motor (coreless type, DC30V)
Drive 1/4" Hex Quick Change 1/4" Hex Quick Change 1/4" Hex Quick Change 1/4" Hex Quick Change
Recommended Application Fasteners: M2 to M3.5 Fasteners: M2.5 to M4.5 Fasteners: M2.5 to M4 Fasteners: M3.5 to M5
(Converted) Torque value output N/A N/A N/A N/A
Data output method Cable Connection to PLC Cable Connection to PLC Cable Connection to PLC Cable Connection to PLC
