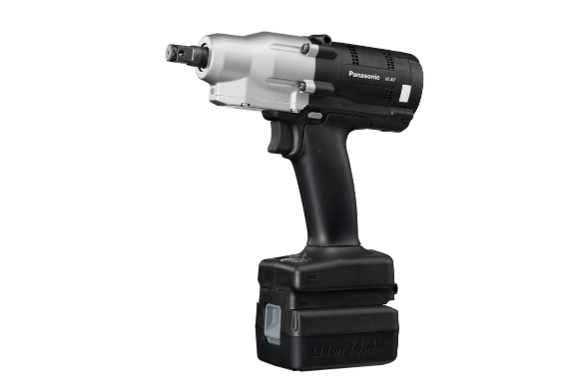

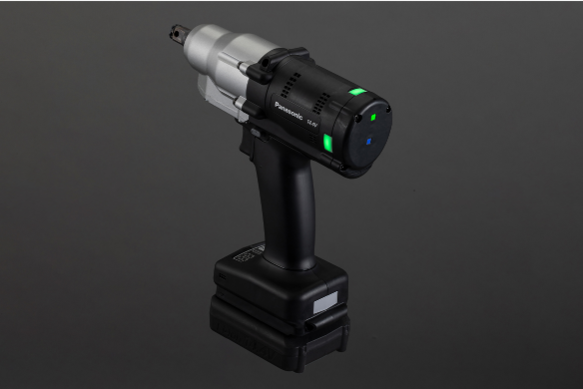

AccuPulse 4.0 Transducerized
SKU:
- EYFMH1RC
- EYFMH1RP
- EYFMH2RC
- EYFMH2RP
- EYFMH1XC
- EYFMH1XP
- EYFMH2XC
- EYFMH2XP
- EYFNH1RC
- EYFNH1RP
Take fastening accuracy and quality manufacturing to a higher level with Panasonic’s next generation transducerized mechanical pulse tool.
The Panasonic AccuPulse 4.0 is a next-generation, Industry 4.0-ready cordless mechanical pulse fastening tool that combines precision torque control, real-time data collection, and ergonomic, reaction-free operation to dramatically improve assembly quality and productivity on the factory floor. With a built-in transducer and advanced onboard electronics, it delivers highly accurate tightening, programmable automation features, and wireless connectivity for seamless integration into modern production systems—making it an ideal choice for manufacturers seeking smarter, safer, and more efficient assembly solutions.

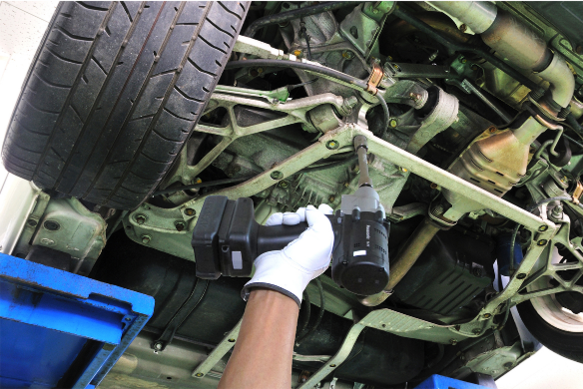

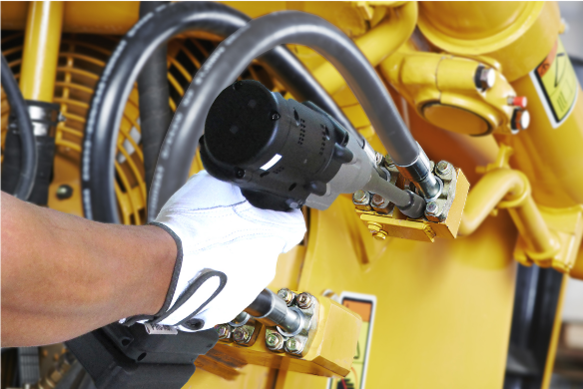

- One-hand cordless operation with no reaction for increased worker safety and freedom of movement with a torque control range 20-220 Nm
- Highly Durable Non-Contact Transducer for reliable torque measurement
- Patented torque traceability and torque curve detection algorithm for high accuracy
- Unique drive mechanism for optimized torque calculations
- Advanced programmable features for greater productivity and plant automation
- Wireless 2-way communication
- Data collection for monitoring torque, angle, time, OK, NOK, pulses, and fastening curves
- Eco-friendly, low maintenance & energy efficient
Product Specifications
| SKU | EYFMH1RC | EYFMH1RP | EYFMH2RC | EYFMH2RP | EYFMH1XC | EYFMH1XP | EYFMH2XC | EYFMH2XP | EYFNH1RC | EYFNH1RP |
|---|---|---|---|---|---|---|---|---|---|---|

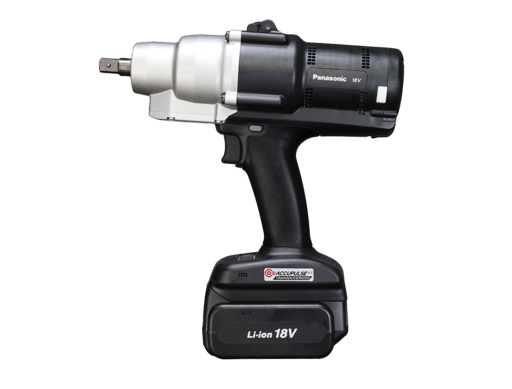

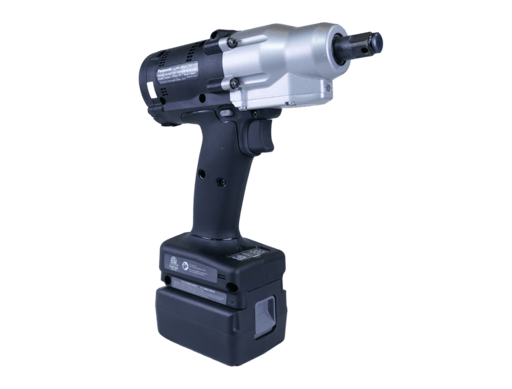

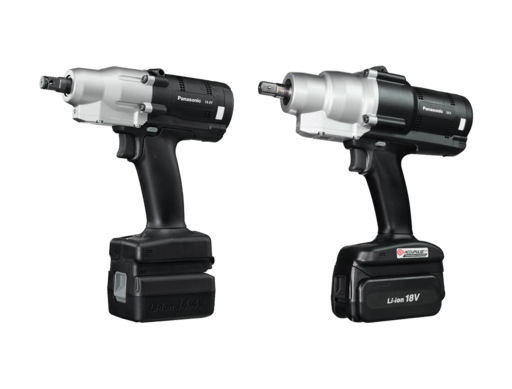

| Series | AccuPulse® 4.0 Transducerized with 2 Way Communication | AccuPulse® 4.0 Transducerized with 2 Way Communication | AccuPulse® 4.0 Transducerized with 2 Way Communication | AccuPulse® 4.0 Transducerized with 2 Way Communication | AccuPulse® 4.0 Transducerized | AccuPulse® 4.0 Transducerized | AccuPulse® 4.0 Transducerized | AccuPulse® 4.0 Transducerized | AccuPulse 4.0® HT Transducerized with Wireless Communication | AccuPulse 4.0® HT Transducerized with Wireless Communication |
| Drive | C = ½” Square Drive with Ring Retainer and Through Hole | P = ½” Square Drive Pin Detent | C = ½” Square Drive with Ring Retainer and Through Hole |
P = ½” Square Drive Pin Detent | C = ½” Square Drive with Ring Retainer and Through Hole | P = 1/2" Square Drive Pin Detent | C = ½” Square Drive with Ring Retainer and Through Hole | P = 1/2" Square Drive Pin Detent | C= 1/2" Square Drive with Retainer Ring and Through Hole | P = 1/2" Square Drive Pin Detent |
| Voltage | 14.4V | 14.4V | 14.4V | 14.4V | 14.4V | 14.4V | 14.4V | 14.4V | 18V | 18V |
| Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer |
| Recommended Application | M8 bolt (Tensile bolt) M10 bolt (Normal bolt) |
M8 bolt (Tensile bolt) M10 bolt (Normal bolt) |
M10 bolt (Tensile bolt) M12 bolt (Normal bolt) |
M10 bolt (Tensile bolt) M12 bolt (Normal bolt) |
M8 bolt (Tensile bolt) M10 bolt (Normal bolt) |
M8 bolt (Tensile bolt) M10 bolt (Normal bolt) |
M10 bolt (Tensile bolt) M12 bolt (Normal bolt) |
M10 bolt (Tensile bolt) M12 bolt (Normal bolt) |
M12-M14 bolt (Tensile bolt) M16-M18 bolt (Normal bolt) |
M12-M14 bolt (Tensile bolt) M16-M18 bolt (Normal bolt) |
| Recommended Torque Range (Hard joint, short socket 40mm) | 20-60 Nm (Setting range: 10-70 Nm) | 20-60 Nm (Setting range: 10-70 Nm) |
Approx. 50-80 Nm (Setting range: 30-140 Nm) | Approx. 50-80 Nm (Setting range: 30-140 Nm) |
20-60 Nm (Setting range: 10-70 Nm) | 20-60 Nm (Setting range: 10-70 Nm) | Approx. 50-80 Nm (Setting range: 30-140 Nm) | Approx. 50-80 Nm (Setting range: 30-140 Nm) | 70-220 Nm (Setting range: 50-250 Nm) | 70-220 Nm (Setting range: 50-250 Nm) |
| No Load Speed (unit: rpm) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-1,900 rpm (Max. rpm is adjustable from 1,300 to 1,900 in 100 rpm increments) | 0-1,900 rpm (Max. rpm is adjustable from 1,300 to 1,900 in 100 rpm increments) |
| Pulses per minute | 0-2,700 | 0-2,700 | 0-2,600 | 0-2,600 | 0-2,700 | 0-2,700 | 0-2,600 | 0-2,600 | 0-2,400 | 0-2,400 |
| Comptible Assembly Tool Controllers | EYFR02B |
EYFR02B |
EYFR02B |
EYFR02B |
EYFR02B EYFR02N EYFR03A EYFR03B EYFR04A |
EYFR02B EYFR02N EYFR03A EYFR03B EYFR04A |
EYFR02B EYFR02N EYFR03A EYFR03B EYFR04A |
EYFR02B EYFR02N EYFR03A EYFR03B EYFR04A |
EYFR02B EYFR02N EYFR03A EYFR03B EYFR04A |
EYFR02B EYFR02N EYFR03A EYFR03B EYFR04A |
