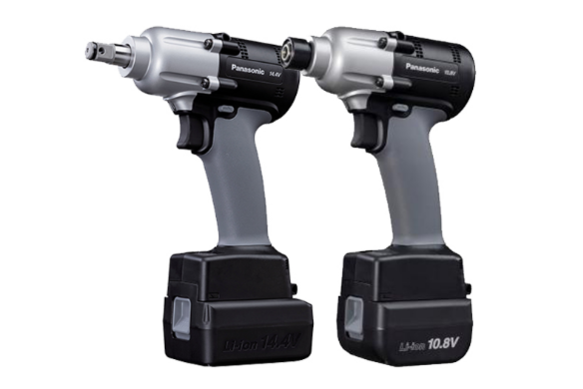

Two cordless mechanical pulse tools with batteries.

AccuPulse - Cordless Mechanical Pulse Tools

SKU:

  • EYFLA7A
  • EYFLA7A4
  • EYFLA8A
  • EYFLA8AR
  • EYFLA8C
  • EYFLA8CR
  • EYFLA8P
  • EYFLA8PR
  • EYFLA9C
  • EYFLA9CR
AccuPulse tools are ergonomically designed with worker safety top of mind. Compact and balanced with virtually no torque reaction to create a healthier, more productive work environment. Offering a full line of tools featuring a torque controlled range of 3-120Nm and a choice of 1/4”, 3/8” and 1/2” drives. A modern cordless design allows total freedom of movement for greater production efficiency.
Contact Sales

  • 3-120Nm torque control range
  • Available with wireless 2-way communication for advanced error proofing
  • Can function like a virtual socket tray with wireless version
  • High resolution encoder ensures precise fastening
  • Innovative proprietary drive mechanism provides high torque while minimizing vibration on higher torque models
  • 7 flush point detection levels for increased accuracy on varying joint types
  • Advanced programmable features for higher worker productivity and plant automation

AccuPulse - Cordless Mechanical Pulse

Model Number Radio Module Drive Min Torque Max Torque Weight RPM
EYFLA7A ¼” Hex Quick Change 3 Nm 22 Nm 2.53 lbs. 0‑2300
EYFLA7AR x ¼” Hex Quick Change 3 Nm 22 Nm 2.53 lbs. 0‑2300
EYFLA8A ¼” Hex Quick Change 6 Nm 30 Nm 2.53 lbs. 0‑2300
EYFLA8AR x ¼” Hex Quick Change 6 Nm 30 Nm 2.53 lbs. 0‑2300
EYFLA8C ⅜” Sq. Drive C-Ring w/ Through hole 6 Nm 30 Nm 2.53 lbs. 0‑2300
EYFLA8CR x ⅜” Sq. Drive C-Ring w/ Through hole 6 Nm 30 Nm 2.53 lbs. 0‑2300
EYFLA8P ⅜” Sq. Drive Pin Detent 6 Nm 30 Nm 2.53 lbs. 0‑2300
EYFLA8PR x ⅜” Sq. Drive Pin Detent 6 Nm 30 Nm 2.53 lbs. 0‑2300
EYFLA9C ½” Sq. Drive C-Ring w/ Through Hole 20 Nm 60 Nm 2.53 lbs. 0‑2300
EYFLA9CR x ½” Sq. Drive C-Ring w/ Through Hole 20 Nm 60 Nm 2.53 lbs. 0‑2300
EYFLA9P ½” Sq. Drive Pin Detent 20 Nm 60 Nm 2.53 lbs. 0‑2300
EYFLA9PR x ½” Sq. Drive Pin Detent 20 Nm 60 Nm 2.53 lbs. 0‑2300
EYFMA2C ½” Sq. Drive C-Ring w/ Through Hole 25 Nm 120 Nm 3.08 lbs. 0‑2300
EYFMA2CR x ½” Sq. Drive C-Ring w/ Through Hole 25 Nm 120 Nm 3.08 lbs. 0‑2300
EYFMA2P ½” Sq. Drive Pin Detent 25 Nm 120 Nm 3.08 lbs. 0‑2300
EYFMA2PR x ½” Sq. Drive Pin Detent 25 Nm 120 Nm 3.08 lbs. 0‑2300

Associated model numbers

EYFLA9P, EYFLA9PR, EYFMA2C, EYFMA2CR, EYFMA2P, EYFMA2PR
