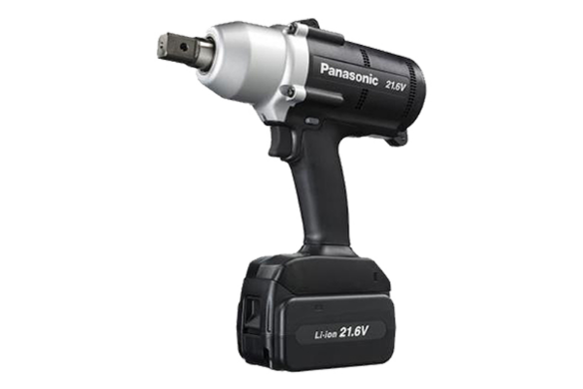

Cordless Mechanical Pulse Shut-Off Tools - High torque cordless mechanical pulse tools

Cordless Mechanical Pulse Shut-Off Tools

SKU:

  • EYFLA4A
  • EYFLA4AR
  • EYFLA5A
  • EYFLA5AR
  • EYFLA5P
  • EYFLA5PR
  • EYFLA5Q
  • EYFLA5QR
  • EYFLA6J
  • EYFLA6JR
Deliver accurate, repeatable fastening on assembly lines where high-torque, quality control and efficiency and are not optional. Featuring torque-controlled range of 3Nm-650Nm and a choice of 1/4" hex chuck, or 3/8", 1/2” or 3/4” Square drives (depending on model). Our high-torque auto shut-off mechanical pulse tools produce superior ergonomics with virtually no torque reaction. Cordless battery-powered design available in 10.8V, 14.4V, 18V and 21.6V provides power, freedom of movement and emissions-free operation for demanding heavy manufacturing plants. Tool body only.
Contact Sales

  • Virtually no torque reaction up to 650Nm, ideal for high torque applications
  • M16 Bolt up to 400Nm / M24 Bolt up to 650Nm
  • Wireless programmable models for advanced error proofing
  • Remote control quick-set features deliver increased fastening accuracy & quality control
  • Auto shut-off prevents over torques
  • Operator visual pass/fail indicator

Cordless Mechanical Pulse Shut-Off

Model Number Battery Radio Module Drive Min Torque Max Torque
EYFLA4A 10.8V ¼" Hex Chuck 3 Nm 40 Nm
EYFLA4AR 10.8V x ¼" Hex Chuck 3 Nm 40 Nm
EYFLA5A 10.8V ¼" Hex Chuck 6 Nm 90 Nm
EYFLA5AR 10.8V x ¼" Hex Chuck 6 Nm 90 Nm
EYFLA5P 10.8V ⅜" Square Drive with Pin Detent 6 Nm 90 Nm
EYFLA5PR 10.8V x ⅜" Square Drive with Pin Detent 6 Nm 90 Nm
EYFLA5Q 10.8V ⅜" Square Drive with Through Hole 6 Nm 90 Nm
EYFLA5QR 10.8V x ⅜" Square Drive with Through Hole 6 Nm 90 Nm
EYFLA6J 10.8V ½" Square Drive with Through Hole 16 Nm 120 Nm
EYFLA6JR 10.8V x ½" Square Drive with Through Hole 16 Nm 120 Nm
EYFLA6P 10.8V ½" Square Drive with Pin Detent 16 Nm 120 Nm
EYFLA6PR 10.8V x ½" Square Drive with Pin Detent 16 Nm 120 Nm
EYFMA1J 14.4V ½" Square Drive with Through Hole 25 Nm 185 Nm
EYFMA1JR 14.4V x ½" Square Drive with Through Hole 25 Nm 185 Nm
EYFMA1P 14.4V ½" Square Drive with Pin Detent 25 Nm 185 Nm
EYFMA1PR 14.4V x ½" Square Drive with Pin Detent 25 Nm 185 Nm
EYFNA1C 18V ½" Square Drive C-Ring with Through Hole 70 Nm 470 Nm
EYFNA1CRT 18V x ½" Square Drive C-Ring with Through Hole 70 Nm 470 Nm
EYFNA1J 18V ½" Square Drive with Through Hole 70 Nm 470 Nm
EYFNA1JRT 18V x ½" Square Drive with Through Hole 70 Nm 470 Nm
EYFNA1P 18V ½" Square Drive with Pin Detent 70 Nm 470 Nm
EYFNA1PRT 18V x ½" Square Drive with Pin Detent 70 Nm 470 Nm
EYFPA1J 21.6V ¾" Square Drive C-Ring with Through Hole 160 Nm 650 Nm
EYFPA1JRT 21.6V x ¾" Square Drive C-Ring with Through Hole 160 Nm 650 Nm

Associated model numbers

EYFLA6P, EYFLA6PR, EYFMA1J, EYFMA1JR, EYFMA1P, EYFMA1PR, EYFNA1C, EYFNA1CRT, EYFNA1J, EYFNA1JRT, EYFNA1P, EYFNA1PRT, EYFPA1J, EYFPA1JRT
