VIC100 JR. - Top Filter / Lightning / N-Type

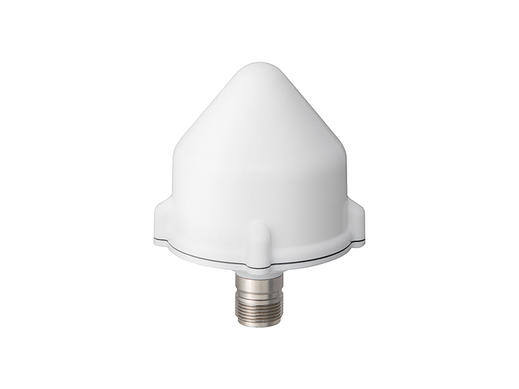

VIC100Jr. is being introduced to meet growing market demand for a small and lightweight GPS antennas. N-type connector assembly with both Top Filter and Enhanced Lightning Protection included. Optional mounting bracket sold separately. The VIC100 Series antenna features advanced filtering and immunity to noise interference as well as improved lightning protection.*
* refer to individual specs
- Top filter included with enhanced lightning protection
- N-type connector assembly, optional mounting bracket (sold separately)
- Passive dielectric patch antenna element
- Active low noise amplifier / Filter - PWB assembly
- Small and lightweight: top radome of cone shaped plastic and bottom radome of aluminum casting assembly
Product Specifications
| SKU | CCAH32VL47 |
|---|---|
| Antenna - Overall specs | ----------------------------------------------------- |
| Polarization | Right hand circular polarization |
| Bandwidth | 1575.42 +/- 1.023 MHz |
| Power supply | 3.5 - 6.0 V DC |
| Operating current | 18 mA (typical) 25 mA (maximum) |
| Total gain | 33 dB (typical) at elevation angle 90° / 27 dB (minimum) at elevation angle 90° |
| Attenuation (antenna) | - |
| Output VSWR | 1.5 : 1 (typical) 2.0 : 1 (maximum) |
| Impedance | 50 ohm |
| Lightning protection | IP66, IP67, +/- 4000V per EN61000-4-5 |
| Water / dust proof | - |
| Passive antenna | ----------------------------------------------------- |
| Gain | 3.0dBi (typical) at elevation angle 90° / -5 dBi (minimum) at elevation angle 10° |
| Axial ratio | 5 dB (maximum) at elevation angle 90° |
| Filter/LNA | ----------------------------------------------------- |
| 3dB bandwidth | 1575.42 +/- 1.023 MHz (minimum) |
| Variation | 1.0dB (maximum) measured at L1 band |
| Gain (typical) | 30dB |
| Attenuation (filter) | 60dB (typical) at 1575.42 +/- 50 MHz |
| 1dB compression point | -55 dBm (minimum) at 1575.42MHz |
| Noise figure | - |
