VIC100 - Lightning / TNC-Type / Base A
TNC-type connector assembly with Mounting Base "A" and Enhanced Lightning Surge Protection included. Active L1 GPS antenna that is designed primarily for timing and synchronization for various industries. The VIC100 Series antenna features advanced filtering and immunity to noise interference as well as improved lightning protection.*
* refer to individual specs
- Lightning Surge Protection - 4000V for IEC61000-4-5 standard

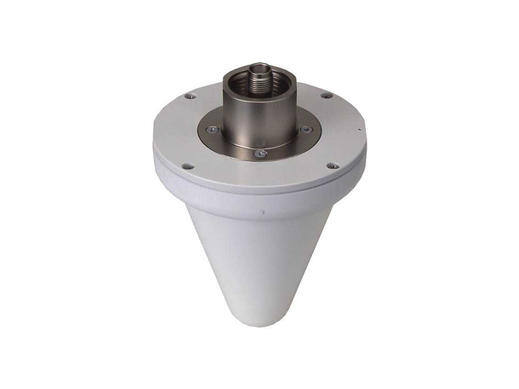

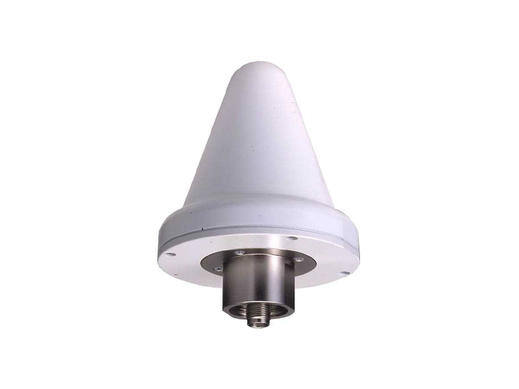

- TNC-type connector assembly, with Mounting Base "A" included
- Passive Dielectric Patch Antenna Element
- Active Low Noise Amplifier / Filter - PWB assembly

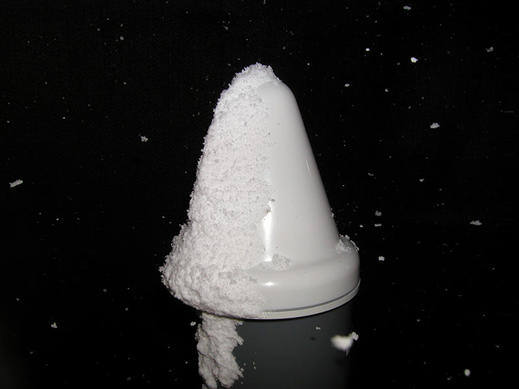

- Top radome of cone shaped plastic and bottom radome of aluminum casting assembly
Product Specifications
| SKU | CCAH32ST16 |
|---|---|
| Antenna - Overall specs | ----------------------------------------------------- |
| Polarization | Right hand circular polarization |
| Bandwidth | 1575.42 +/- 1.023 MHz |
| Power supply | DC 5 +/- 0.5 V |
| Operating current | 20mA (typical) 27mA (maximum) |
| Total gain | 38dB (typical) / 30dB (minimum) at 90° elevation angle |
| Attenuation (antenna) | 60dB (typical) at 1575.42 +/- 50 MHz |
| Output VSWR | 1.5 (typical) 2.5 (maximum) |
| Impedance | - |
| Lightning protection | 4000V for IEC61000-4-5 standard |
| Water / dust proof | - |
| Passive antenna | ----------------------------------------------------- |
| Gain | 3.0dBi (minimum) at 90° elevation angle / -10dBi (minimum) at 0° elevation angle |
| Axial ratio | 3dB (typical) |
| Filter/LNA | ----------------------------------------------------- |
| 3dB bandwidth | 1575.42 +/- 1.023 MHz (minimum) |
| Variation | 1.0dB (maximum) measured at L1 band |
| Gain (typical) | 35dB |
| Attenuation (filter) | 60dB (typical) at 1575.42 +/- 50 MHz |
| 1dB compression point | - |
| Noise figure | 1.8dB (typical) 2.2 dB (maximum) |
