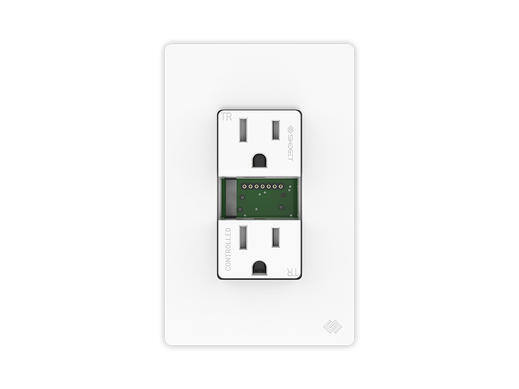

White configurable electrical receptacle on a plain background.

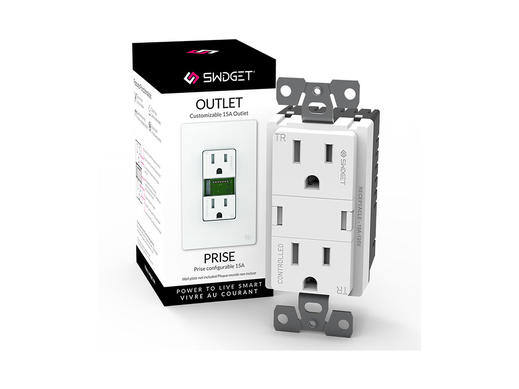

Configurable 15A electrical outlet next to its packaging.

15A Configurable Receptacle

SKU:

  • R1015SWA
Product Specifications

Duplex 125VAC 15A modular Smart Home enabled device.

Contact Sales

  • Universal compatibility to work with all wireless platforms
  • Independent direct power monitoring for each of the two receptacles
  • Wide range of customization and feature options with plug and play Swidget Inserts
  • User-safe with Tamper Resistant outlets and a certified Class 2 power output

Product Specifications

SKU R1015SWA
Input power rating 125VAC, 15A
Outlet receptacle configuration NEMA 5-15R
Resistive load rating 1,800W
Motor load rating 0.5HP
Inductive load rating 8A@125VAC (PF 0.4)
Relay mechanical endurance rating 1,000,000 cycles (or 274 years @ 10 cycles per day)
Wiring type Pre-stripped wire leads (Line/Neutral) #14 AWG (Stranded), Ground screw
Testing and code compliance UL498 / UL1310, CSA C22.2 #42, #223 (Canada and US)
Flammability UL94 5VA
Environmental Indoor installation only
Operating temperature -10 °C to 40 °C (14 °F to 104 °F)
Insert voltage output Nominal 5VDC (+/- 5%)
Insert DC protection Class 2 - Current limiting and thermal shutdown protection
Insert current output Constant current maximum 2.0A

Swidget Smart Devices

The Swidget product line has been developed to support the easy integration of Home Automation and Smart Home markets with unique and flexible solutions. Adding a Swidget Insert turns the wired device into a powerful and flexible Smart Home device. The interchangeability of the Swidget Inserts ensure that the system can work with any existing or future Smart Home wireless system.

15A Configurable Receptacle

The 15A Receptacle has the ability to allow interchangeable Swidget Inserts to be installed, removed or replaced - making Swidget the optimal choice for building renovations and new construction. The Swidget 15A Receptacle uses a simple interface, making installation easy.
