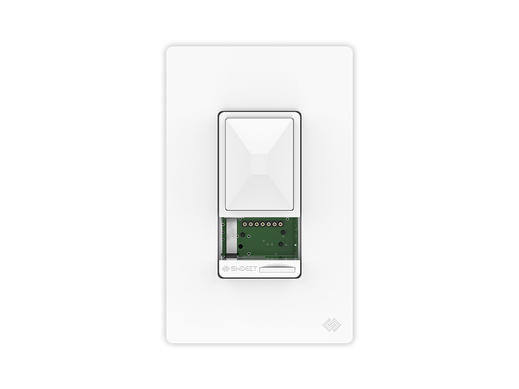

White dimmer switch with exposed electronic components.

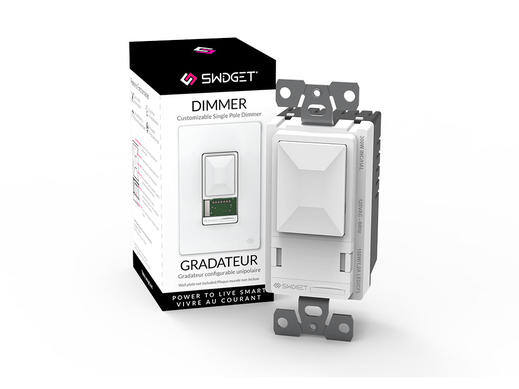

Dimmer switch with packaging, labeled "DIMMER" on a white background.

Dimmer Switch

SKU:

  • SD3001WA
Product Specifications

125VAC 2.5A modular Smart Home enabled dimmer.

Contact Sales

  • ON/OFF/Dimmer control in a single pad with the capability for scene programming (Wi-Fi Inserts only)
  • Designed with industry-leading anti-flicker technology for dimmable LED's
  • Direct power monitoring
  • Wide range of customization and feature options with plug and play Swidget Inserts

Product Specifications

SKU SD3001WA
Input power rating 125VAC, 5A
Wiring type Pre-stripped wire leads (Line/Neutral) #16 AWG (Stranded), Ground screw
Testing and code compliance UL1472/ UL1310, CSA C22.2 #184.1, #223 (Canada and US) – Apr 2020
Flammability UL94 5VA
Environmental Indoor installation only
Operating temperature -10 °C to 40 °C) (14 °F to 104 °F)
Insert voltage output Nominal 5VDC (+/- 5%)
Insert DC protection Class 2 - Current limiting and thermal shutdown protection
Insert current output Constant current maximum 2.0A
LED/CFL load rating 150W
Incandescent/Halogen load rating 300W
Horsepower load rating --
Switch configuration Single pole, dry contact
Number of poles Single (1p)
Compatibility NEMA SSL 7A Compliant – Apr 2020

Swidget Smart Devices

The Swidget product line has been developed to support the easy integration of Home Automation and Smart Home markets with unique and flexible solutions. Adding a Swidget Insert turns the wired device into a powerful and flexible Smart Home device. The interchangeability of the Swidget Inserts ensure that the system can work with any existing or future Smart Home wireless system.

Dimmer Switch

The Dimmer Switch has the ability to allow interchangeable Swidget Inserts to be installed, removed or replaced - making Swidget the optimal choice for building renovations and new construction. The Swidget Dimmer Switch uses a simple 3-wire interface, making installation easy.
