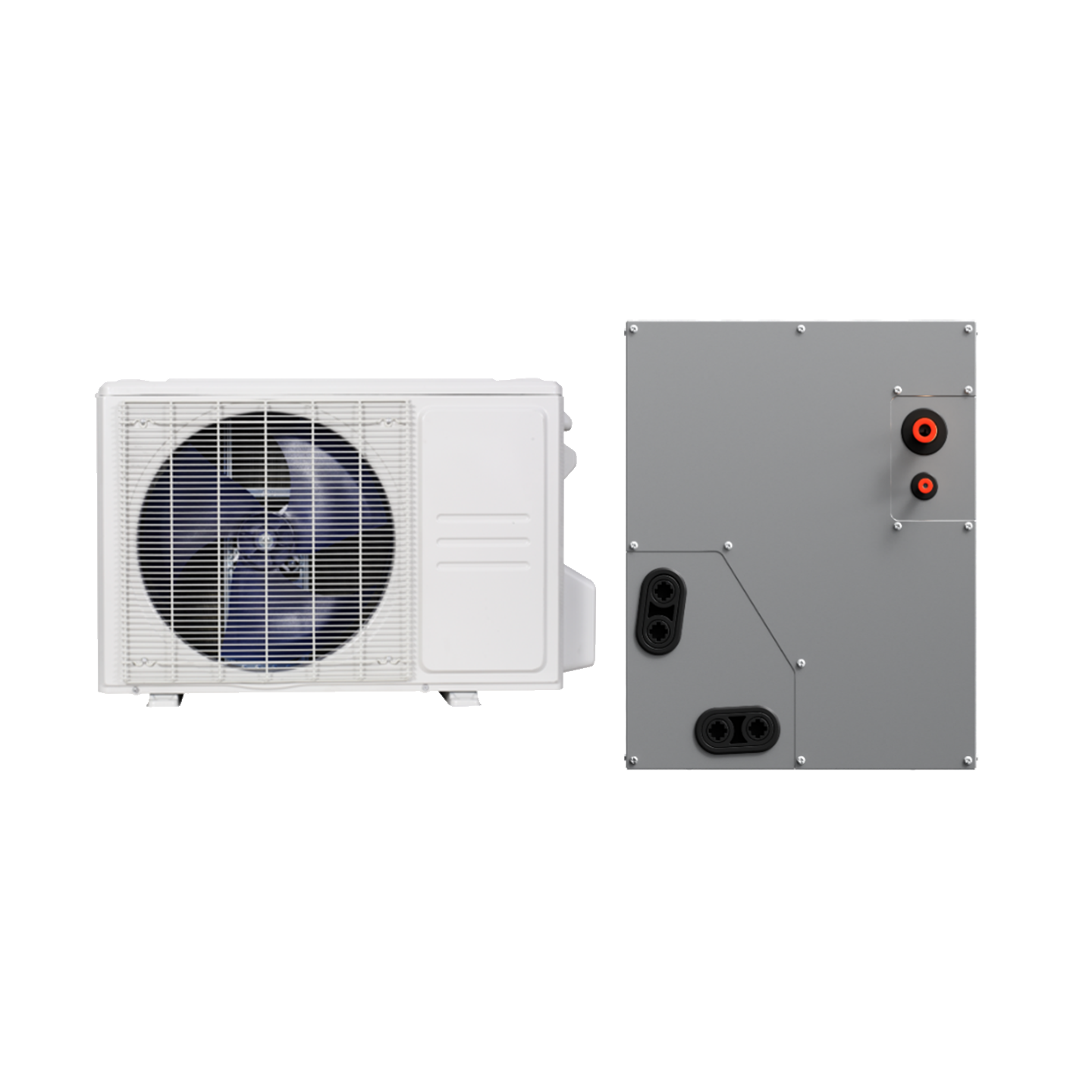

INTERIOS™ 1.5 - 2 Ton A-Coil Heat Pump for Hybrid Heating and Cooling
Panasonic INTERIOS™ 1.5 - 2 Ton Cold Climate A-Coil offers a hybrid Heat Pump solution. The A-Coil integrates with a new or existing furnace to provide energy efficient, whole home heating and cooling.
- Compatible Outdoor Units: (18K) CU-HM18BAHU or (24K) CU-HM24BAHU
- -30°C (-20°F) Heating Operation
- R454B Refrigerant for Zero Impact on the Ozone Layer
- ENERGY STAR® Cold Climate Certified
- Multi-Position Design
- A2L Sensor Included
- Easy Maintenance
Product Specifications
| SKU | CS-HM24BAAU2 | |
|---|---|---|
| Indoor Unit | CS-HM24BAAU2 | CS-HM24BAAU2 |
| Outdoor Unit | CU-HM18BAHU | CU-HM24BAHU |
| ENERGY STAR® | Yes | Yes |
| Power Supply - Indoor Unit (V, Phase, Hz) | 24V, Single Phase, 60Hz | 24V, Single Phase, 60Hz |
| Power Supply - Outdoor Unit (V, Phase, Hz) | 208 /230V, Single Phase, 60Hz | 208 /230V, Single Phase, 60Hz |
| Capacity (Heating / Cooling) | 19,000 Btu/h / 18,000 Btu/h | 25,000 Btu/h / 24,000 Btu/h |
| SEER2 | 16.1 | 16 |
| EER2 | 11.7 | 10 |
| HSPF2 - Region 4 / Region 5 | 9.5 / 7.8 | 9.5 / 7 |
| Capacity at -15°C (5°F) | 18,000 Btu/h | 21,000 Btu/h |
| COP at -15°C (5°F) | 2.06 | 1.8 |
| Refrigerant | R454B | R454B |
| Weight - Indoor Unit | 42 lbs (19 kg) | 42 lbs (19 kg) |
| Weight - Outdoor Unit | 101.4 lbs (46 kg) | 101.4 lbs (46 kg) |
| Dimensions (H x W x D) - Indoor Unit | 18" x 17-1/2" x 21" (457 x 445 x 534 mm) | 18" x 17-1/2" x 21" (457 x 445 x 534 mm) |
| Dimensions (H x W x D) - Outdoor Unit | 26-1/2" x 35-1/32" x 13-15/32" (673 x 890 x 342 mm) | 26-1/2" x 35-1/32" x 13-15/32" (673 x 890 x 342 mm) |
