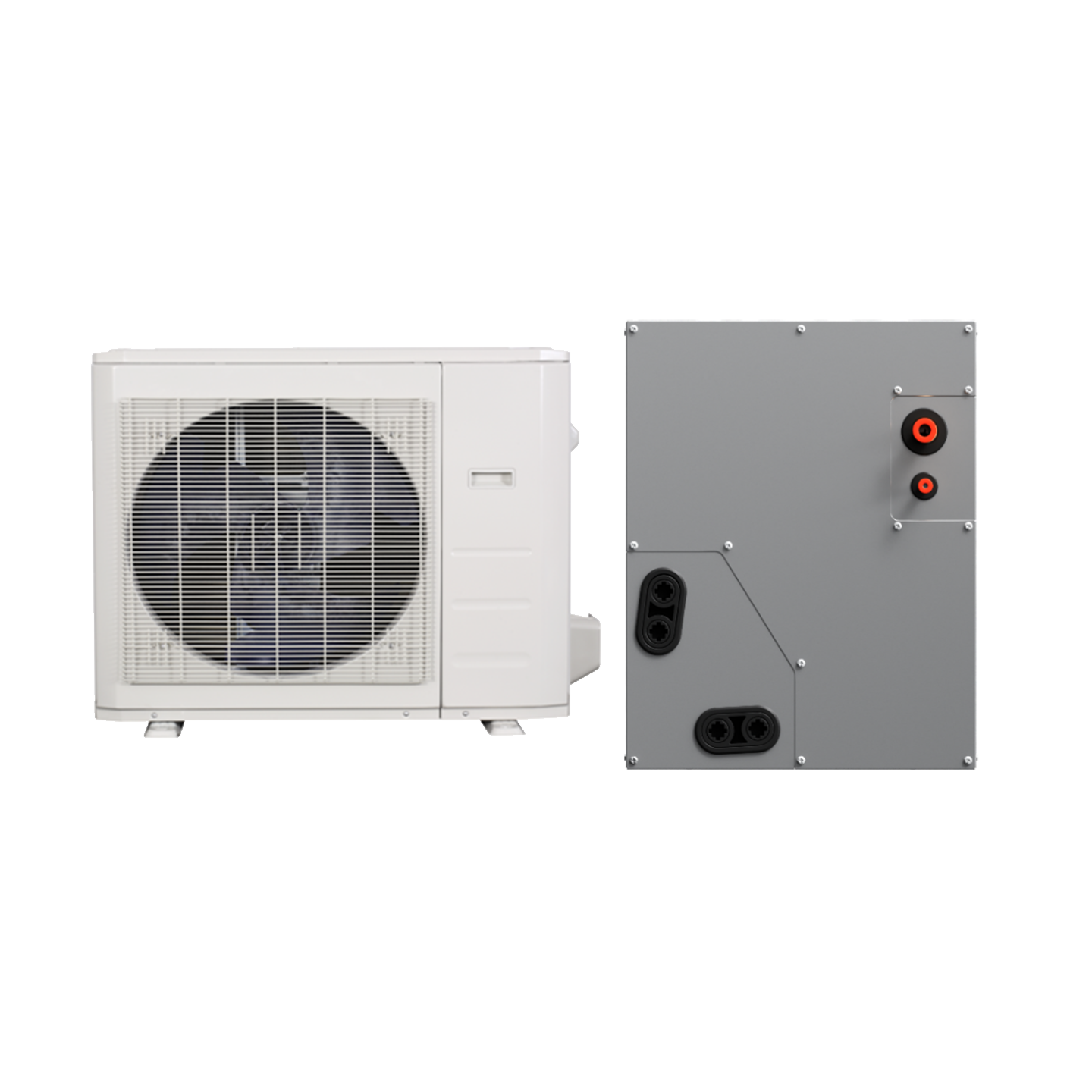

INTERIOS™ 2.5 - 3 Ton A-Coil Heat Pump for Hybrid Heating and Cooling
Panasonic INTERIOS™ 2.5 - 3 Ton Cold Climate A-Coil offers a hybrid Heat Pump solution. The A-Coil integrates with a new or existing furnace to provide energy efficient, whole home heating and cooling.
- Compatible Outdoor Units: (30K) CU-HM30BAHU or (36K) CU-HM36BAHU
- -30°C (-20°F) Heating Operation
- R454B Refrigerant for Zero Impact on the Ozone Layer
- ENERGY STAR® Cold Climate Certified
- Multi-Position Design
- A2L Sensor Included
- Easy Maintenance
Product Specifications
| SKU | CS-HM36BAAU1 |
|---|---|
| Indoor Unit | CS-HM36BAAU1 |
| Outdoor Unit | CU-HM30BAHU |
| ENERGY STAR® | Yes |
| Power Supply - Indoor Unit (V, Phase, Hz) | 24V, Single Phase, 60Hz |
| Power Supply - Outdoor Unit (V, Phase, Hz) | 208 /230V, Single Phase, 60Hz |
| Capacity (Heating / Cooling) | 30,000 Btu/h / 30,000 Btu/h |
| SEER2 | 15.3 |
| EER2 | 10 |
| HSPF2 - Region 4 / Region 5 | 9.3 / 7.7 |
| Capacity at -15°C (5°F) | 30,400 Btu/h |
| COP at -15°C (5°F) | 1.8 |
| Refrigerant | R454B |
| Weight - Indoor Unit | 56.8 lbs (25.8 kg) |
| Weight - Outdoor Unit | 164.02 lbs (74.4 kg) |
| Dimensions (H x W x D) - Indoor Unit | 23-5/16" x 14-1/2" x 21" (592 x 368 x 534 mm) |
| Dimensions (H x W x D) - Outdoor Unit | 31-15/16" x 37-1/4" x 16-5/32" (810 x 946 x 410 mm) |
