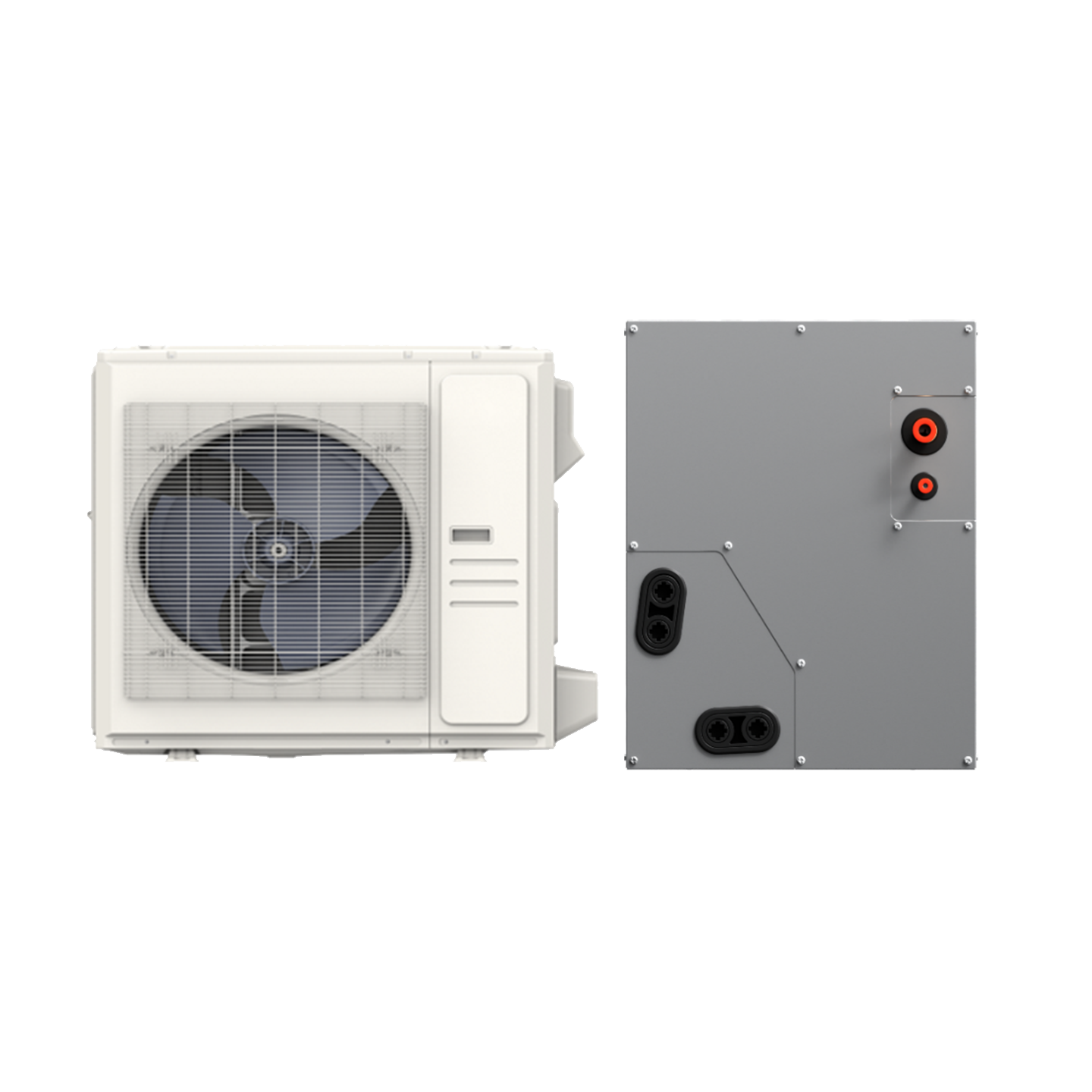

INTERIOS™ 2.5 - 3 Ton A-Coil Heat Pump for Hybrid Heating and Cooling
Panasonic INTERIOS™ 2.5 - 3 Ton Cold Climate A-Coil offers a hybrid Heat Pump solution. The A-Coil integrates with a new or existing furnace to provide energy efficient, whole home heating and cooling.
- Compatible Outdoor Units: (30K) CU-HM30BAHU or (36K) CU-HM36BAHU
- -30°C (-20°F) Heating Operation
- R454B Refrigerant for Zero Impact on the Ozone Layer
- ENERGY STAR® Cold Climate Certified
- Multi-Position Design
- A2L Sensor Included
- Easy Maintenance
Product Specifications
| SKU | CS-HM36BAAU3 |
|---|---|
| Indoor Unit | CS-HM36BAAU3 |
| Outdoor Unit | CU-HM36BAHU |
| ENERGY STAR® | Yes |
| Power Supply - Indoor Unit (V, Phase, Hz) | 24V, Single Phase, 60Hz |
| Power Supply - Outdoor Unit (V, Phase, Hz) | 208 /230V, Single Phase, 60Hz |
| Capacity (Heating / Cooling) | 38,000 Btu/h / 36,000 Btu/h |
| SEER2 | 15.8 |
| EER2 | 10.7 |
| HSPF2 - Region 4 / Region 5 | 9.4 / 7.9 |
| Capacity at -15°C (5°F) | 36,000 Btu/h |
| COP at -15°C (5°F) | 1.9 |
| Refrigerant | R454B |
| Weight - Indoor Unit | 64.4 lbs (29.2 kg) |
| Weight - Outdoor Unit | 204.2 lbs (92.6 kg) |
| Dimensions (H x W x D) - Indoor Unit | 24-1/16" x 21" x 21" (611 x 534 x 534 mm) |
| Dimensions (H x W x D) - Outdoor Unit | 38-7/16" x 38-5/8" x 16-3/8" (975 x 980 x 415 mm) |
