ClimaPure® XE Series Single Split System
Ductless heating and air conditioning systems provide optimal comfort along with the reduced energy consumption that comes with zoned temperature control. The new XE ductless system features nanoe™ X — a built-in air and surface purification technology that provides a comfortable environment for occupants.

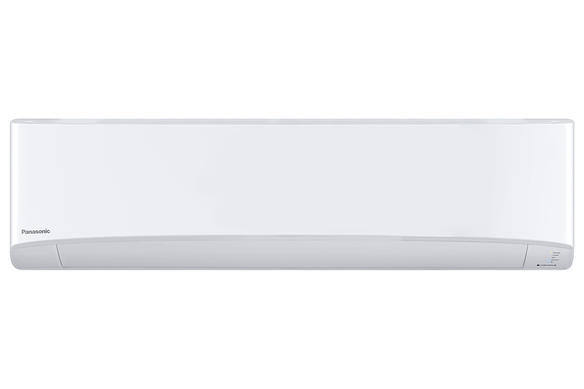

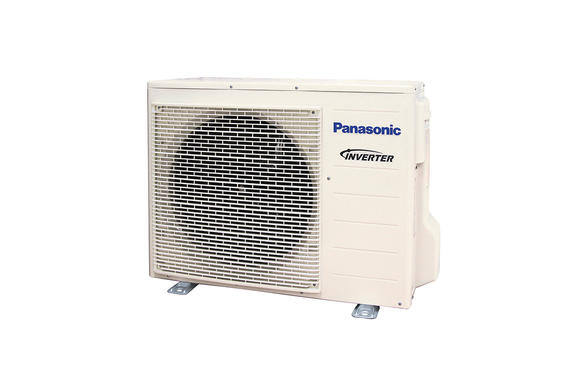

- Indoor unit: CS-XE15WKUAW / Outdoor unit: CU-XE15WKUA
- -26°C (-15°F) Cold climate heating operation
- Base pan heater included
- Built-in Wi-Fi
- Auxiliary heater connection
Manuals
- Service Manual - HVAC - XE15WKUA
- Operating manual / Manuel d'utilisation - XE9/XE12/XE15WKUA (English / Français)
- Installation Manual - HVAC - XE15WKUA
Submittal Sheets
- Submittal Sheet - HVAC - ClimaPure Single Split System - XE15WKUAW
- Submittal Sheet - HVAC - ClimaPure Indoor Unit - CS-XE15WKUA
Catalogs
Spec Sheets
Product Specifications
SKU | XE15WKUA |
---|---|
Indoor Unit | CS-XE15WKUAW |
Outdoor Unit | CU-XE15WKUA |
Capacity Cooling (Btu/h) / KW | 14,300 (3,300 - 19,000) / 1.14KW |
Capacity Heating (Btu/h) / KW | 17,200 (3,340 - 24,000) / 1.26KW |
Moisture Removal - High (pints/H) | 4 |
Dry Air Flow - High (CFM) | 12.2 |
SEER2 | 22.00 |
EER2 | 12.55 |
HSPF2 - Region 4 / Region 5 | 11.00 / 8.50 |
Power Supply (V, Phase, Hz) | 208 / 230V, Single Phase, 60 Hz |
Power Input - Cooling (W) | 1,170 |
Power Input - Heating (W) | 1,260 |
Dimensions (indoor) (H x W x D) | 11.61" x 34.25" x 9.05" (295 x 870 x 230 mm) |
Dimensions (outdoor) (H x W x D) | 24.37" x 32.44" x 11.77" (619 x 824 x 299 mm) |
Weight (indoor/outdoor) (Lbs) | 24 / 105 |
