Outdoor Multi-Zone Split - 2-3 Zone

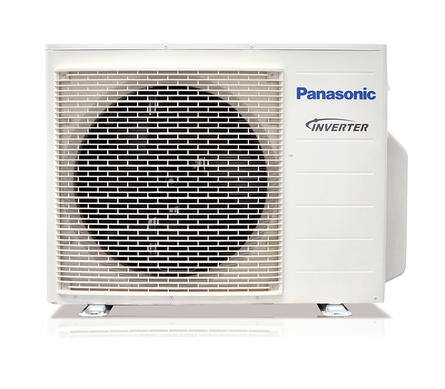

1.5 Ton multi-zone outdoor condenser unit provides heating and cooling for 2-3 indoor units and -5 °F cold climate heat operation. Select wall mount, 4-way cassette or slim duct units for indoor installation.
- Cooling capacity: 19,000 (6,000 - 24,000) Btu/h, heating capacity: 26,000 (5,000 - 28,400) Btu/h
- SEER2 Non-Ducted 22.00 / Ducted 18.50
- EER2 Non-Ducted 12.55 / Ducted 10.85
- HSPF2 (Region 4 / Region 5) Non-Ducted 10.10 / 7.70 and Ducted 8.80 / 7.30
- ENERGY STAR Non-Ducted
Product Specifications
| SKU | CU-3E19RBU-5 |
|---|---|
| Indoor Unit | Wall mount, 4-Way cassette, slim duct |
| Outdoor Unit | CU-3E19RBU-5 |
| Capacity Cooling (Btu/h) / KW | 19,000 (6,000 - 24,000) |
| Capacity Heating (Btu/h) / KW | 26,000 (5,000 - 28,400) |
| Moisture Removal - High (pints/H) | -- |
| Dry Air Flow - High (CFM) | 1447 Cooling / 1634 Heating |
| SEER2 | Non-Ducted 22.00 / Ducted 18.50 |
| EER2 | Non-Ducted 12.55 / Ducted 10.85 |
| HSPF2 - Region 4 / Region 5 | Non-Ducted 10.10 / 7.70 and Ducted 8.80 / 7.30 |
| Power Supply (V, Phase, Hz) | 230 / 208 V, Single phase, 60 Hz |
| Power Input - Cooling (W) | 1,510 (360-2,420) |
| Power Input - Heating (W) | 2,060 (320-2,300) |
| Dimensions (indoor) (H x W x D) | -- |
| Dimensions (outdoor) (H x W x D) | 31-5/16" x 34-15/32" x 14-3/6" |
| Weight (indoor/outdoor) (Lbs) | --/159 |
