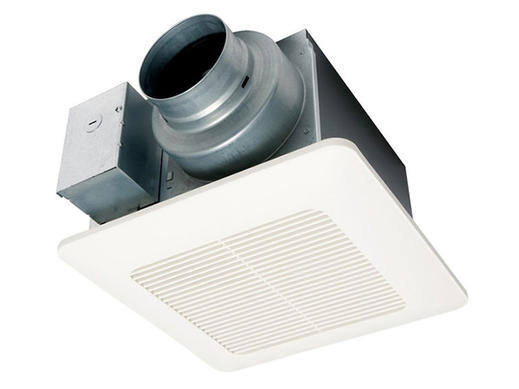

WhisperCeiling® DC™ Ventilation Fan, 50 - 80 - 110 CFM
WhisperCeiling® DC™ fan with built-in Pick-A-Flow® speed selector switch allows you to select your required airflow (50-80-110 CFM). Features a DC Motor with Smart Flow® technology and a Flex-Z Fast® installation bracket and can be used to comply with the latest codes and standards.
- Precision Spot Ventilation Fan
Product Specifications
| SKU | FV-0511VQ1 |
|---|---|
| Product family name | WhisperCeiling |
| Air volume exhaust (CFM) | 50 CFM @ 0.1"SP, 53 CFM @ 0.25" | 80 CFM @ 0.1"SP, 83 CFM @ 0.25"SP | 110 CFM @ 0.1"SP, 110 CFM @ 0.25"SP |
| Noise (sones) | <0.3 @ 50 CFM @ 0.1" SP, 0.4 @ 50 CFM @ 0.25" SP | <0.3 @ 80 CFM @ 0.1" SP, 0.6 @ 80 CFM @ 0.25" SP | <0.3 @ 110 CFM @ 0.1" SP, 0.9 @ 110 CFM @ 0.25"SP |
| Energy efficiency (CFM/Watt) | 12.5 CFM/W @ 50 CFM | 13.6 CFM/W @ 80 CFM | 10.6 CFM/W @ 110 CFM |
| Motor type (AC/DC) | DC |
| Duct diameter | 4" (102 mm) / 6" (152 mm) |
| Lighted | No |
| Motion sensor | No |
| Moisture sensor/condensation | No |
| Multi-speed with time delay | No |
| Night light | No |
| Installation | Ceiling |
| Radiation damper available | Yes |
| Housing dimensions (L x W x H) | 10-1/4" x 10-1/4" x 7-3/8" (260 x 260 x 187 mm) |
| Grille size - Square inches (mm) | 13" (330 mm) |
| ENERGY STAR®, ASHRAE 62.2, LEED | Yes |
| cUL listed for tub/shower enclosure | Yes |
