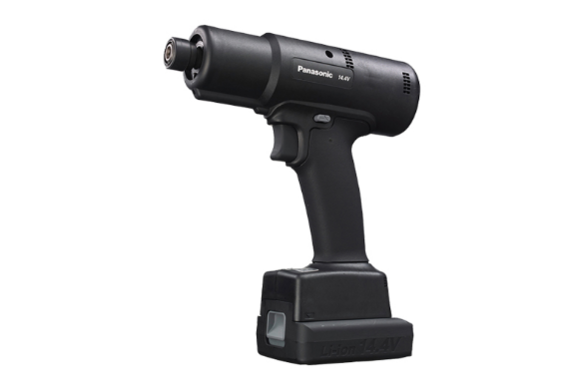

Cordless Programmable Clutch Tools
Our programmable 14.4V clutch tools offer repeatable fastening accuracy for assembly lines where quality monitoring and error proofing are essential. Featuring 1/4” hex quick-change chucks and all-steel fast action clutches, these drivers deliver torque range of 2Nm-10Nm with high accuracy ±10% @ Cmk better than 1.67 ≥ 3Nm. Connect a Panasonic controller for wireless error proofing. Easily program cross thread/ rehit detection, rundown speeds, and more.
- 2-10Nm torque range
- Programmable quick-set features improve precision, quality control and efficiency
- Intelligent auto shut-off and photo interrupter sensor increases tool accuracy & clutch life
- Superior ergonomics for improved worker safety
- Brushless motor, all-steel clutch and hybrid switch nearly doubles tool life
- Wireless models allow for advanced error proofing
Specifications
| SKU | EYFGA1N | EYFGA1NR | EYFGA2N | EYFGA2NR | EYFGA3N | EYFGA3NR |
|---|---|---|---|---|---|---|
| Min Torque | 2 Nm | 2 Nm | 5 Nm | 5 Nm | 5 Nm | 5 Nm |
| Max Torque | 5.5 Nm | 5.5 Nm | 8 Nm | 8 Nm | 10 Nm | 10 Nm |
| RPM | 0-800 | 0-800 | 0-750 | 0-750 | 0-450 | 0-450 |
| Dimensions | 7‑13/16” x 9‑1/8” x 2‑15/16” | 7‑13/16” x 9‑1/8” x 2‑15/16” | 7‑13/16” x 9‑1/8” x 2‑15/16” | 7‑13/16” x 9‑1/8” x 2‑15/16” | 7‑13/16” x 9‑1/8” x 2‑15/16” | 7‑13/16” x 9‑1/8” x 2‑15/16” |
| Weight | 2.76 lbs | 2.76 lbs | 2.76 lbs | 2.76 lbs | 2.86 lbs | 2.86 lbs |
