Ceiling Radiation Damper

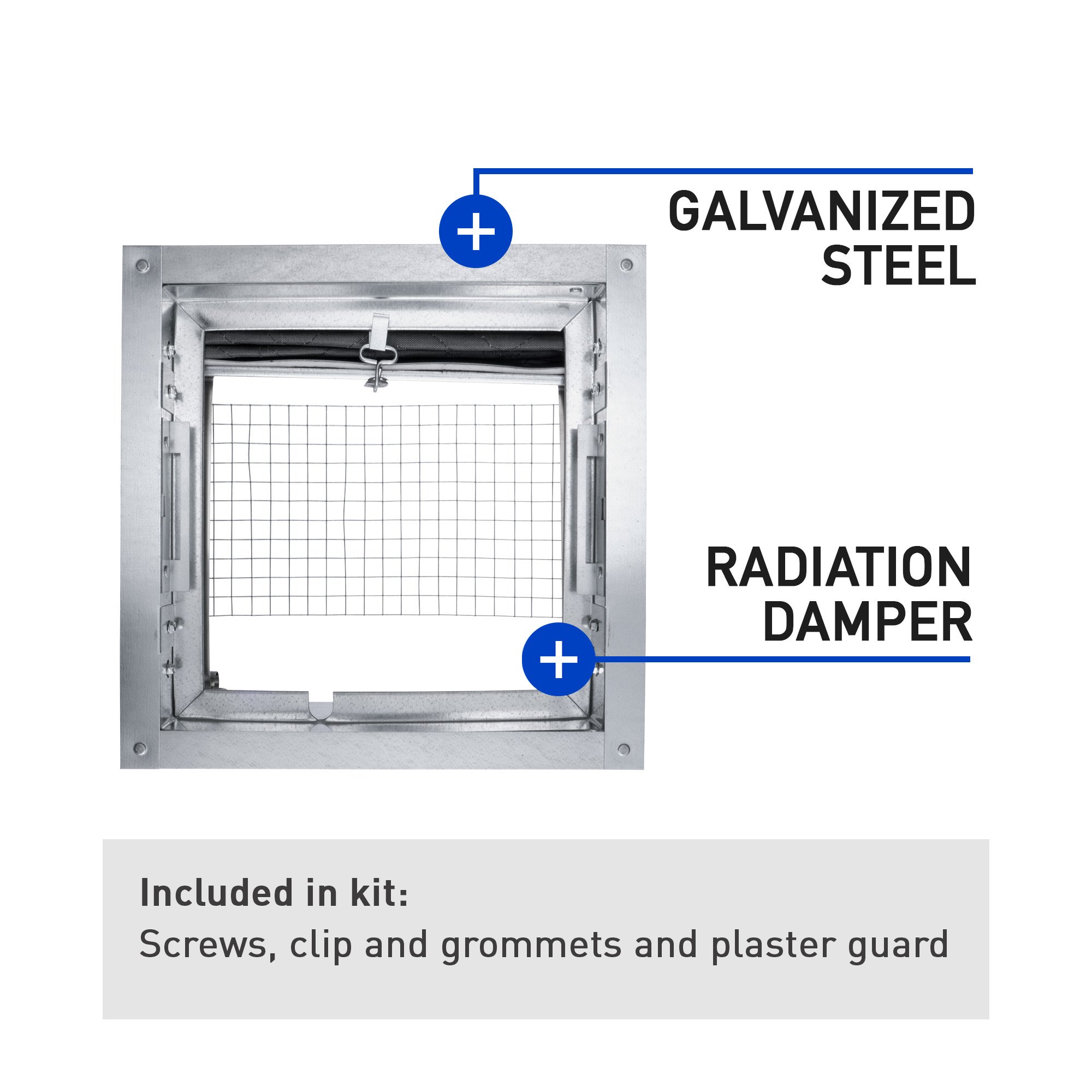

The folded, ceramic-curtain style damper meets both combustible and non-combustible UL assemblies. Designed to contain heat, limit radiant transfer and maintain a fire-rated ceiling assembly* during a fire. Supports two-stage construction: fan housing and damper sleeve during framing, and fan/motor/damper installation after finishes. The damper provides easy access to fan/motor/damper for hassle-free maintenance.
- Designed for occupants’ safety when fire-rated protection* is required

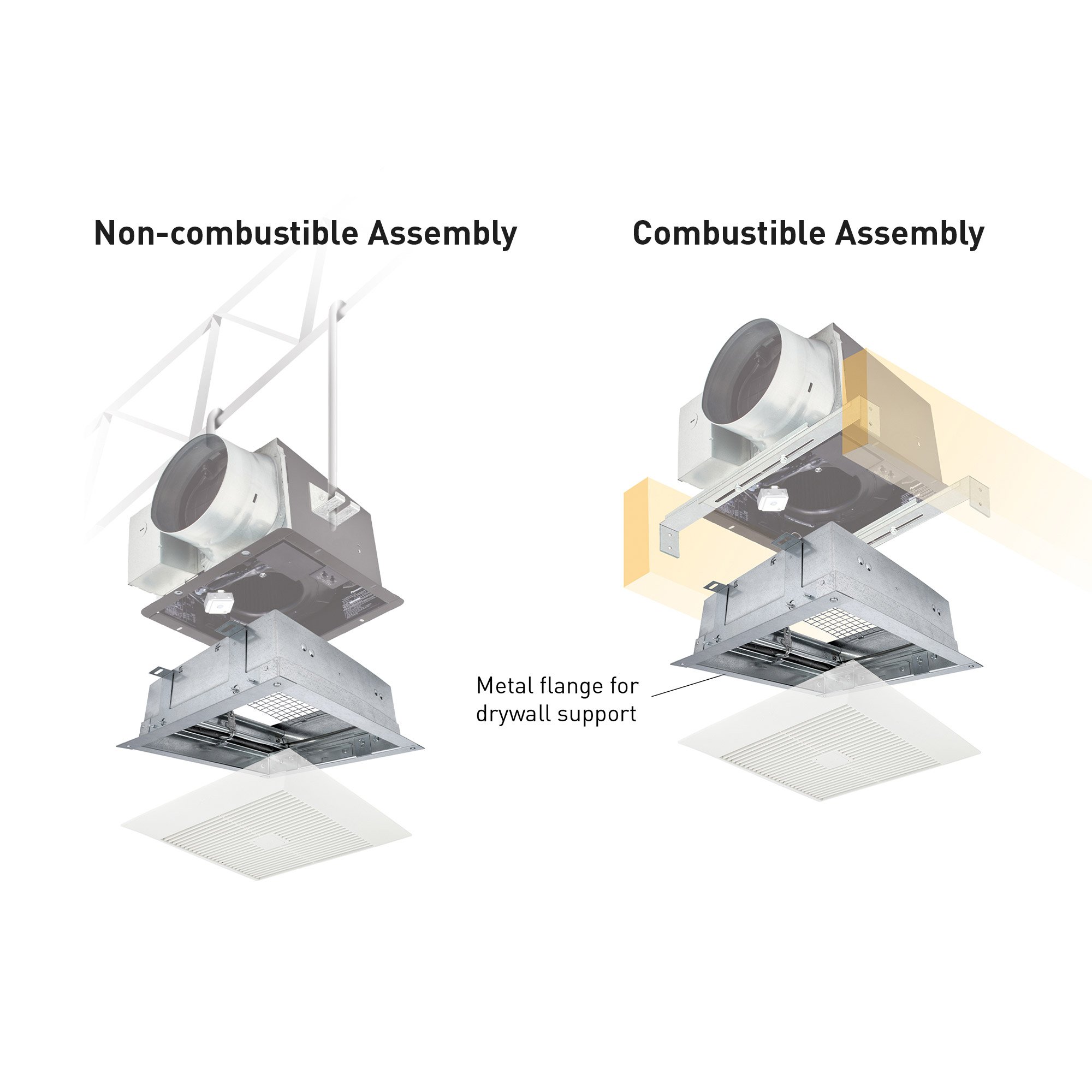

- The folded, ceramic-curtain style damper meets both combustible and non-combustible UL assemblies
- Crucial fire resistance with simple installation process
- Easy access to fan, motor and damper for maintenance
- 5-Year Warranty
UL approved for most Panasonic 10 1/4" 50-150 CFM fans, fan/lights and fans with motion sensor
* Please see product submittal for approved model numbers.
Product Specifications
| SKU | PC-RD06C6 |
|---|---|

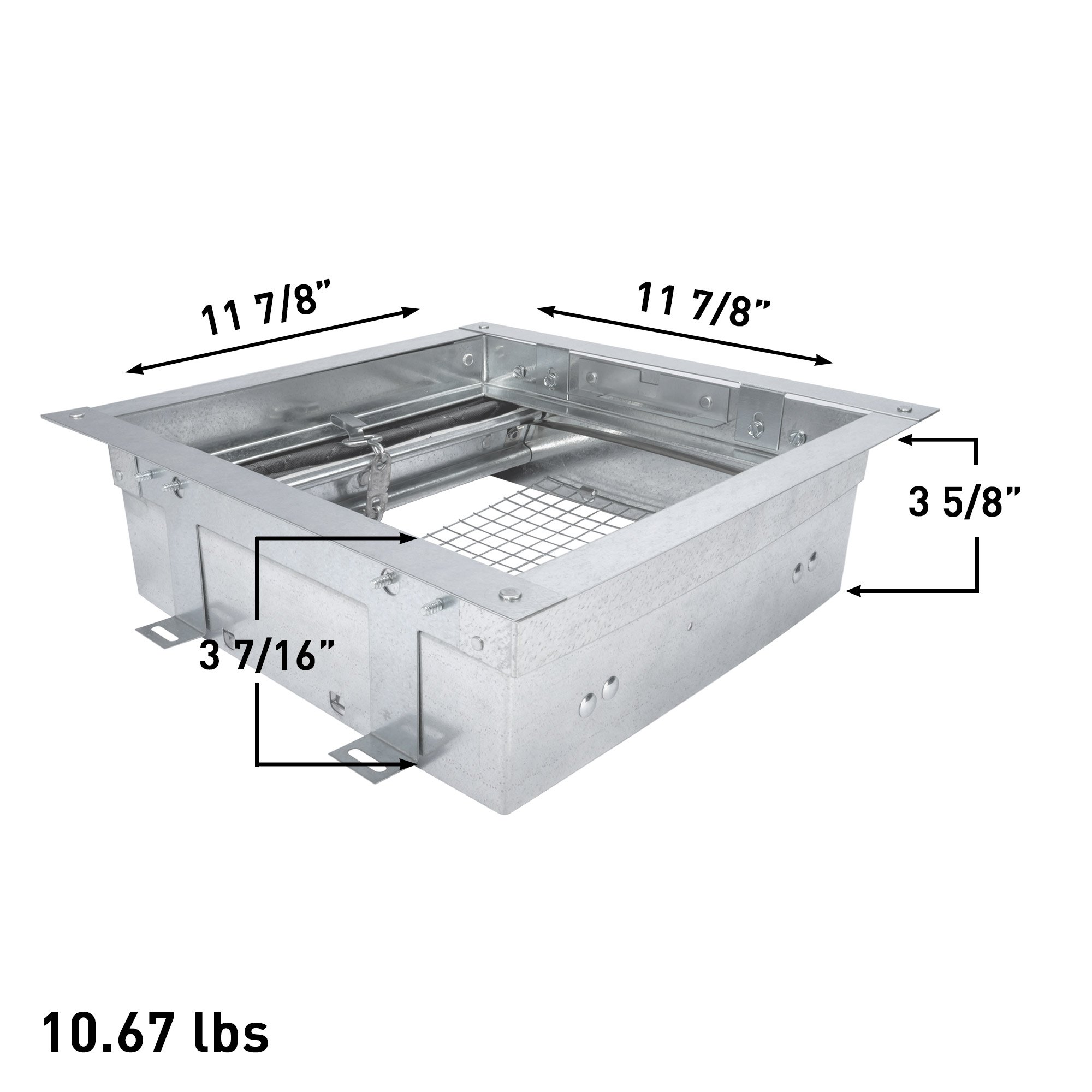

| Dimensions (H x W x D) | 3-5/8" x 11-13/16" x 11-13/16" (92 mm x 300 mm x 300 mm) |
| Weight | 10.7 lbs. (4.9 kg) |
| Product family name | Ceiling Radiation Damper |
| Notice | Warnock-Hersey certified for use with non-combustible floor/ceiling and roof/ceiling assemblies. Please contact your dealer for a complete list of applicable ventilation fans approved for use with this product. |
